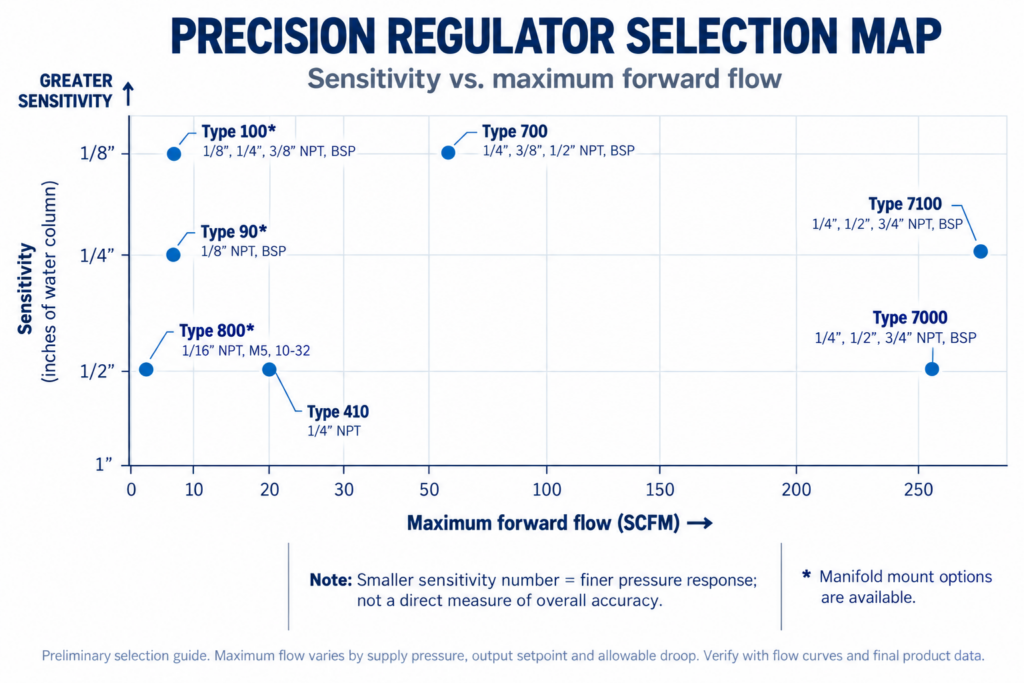

How to Select a Precision Pressure Regulator
Selecting the correct precision pressure regulator requires aligning system requirements with regulator performance characteristics. Important considerations include pressure range, sensitivity, flow capacity, response stability, mounting constraints, and environmental conditions.
Applications requiring highly accurate pneumatic control depend on regulators capable of maintaining stable output pressure with minimal drift and rapid response to pressure fluctuations. Low-pressure systems often require extremely sensitive regulators with fine resolution, while high-flow applications require regulators that minimize droop and maintain stable pressure under dynamic demand conditions.
Important selection considerations include:
- Required inlet and outlet pressure range
- Sensitivity and pressure resolution requirements
- Flow capacity and allowable pressure droop
- Stability under varying operating conditions
- High exhaust capacity requirements
- Space limitations and mounting configuration
- Material compatibility and environmental exposure
- Manual vs. electro-pneumatic control requirements
Multi-stage regulators provide enhanced accuracy and stability for demanding applications, while compact and miniature regulators support OEM systems where installation space is limited.
For additional guidance, review ControlAir’s
Product Selection Guides
How to Determine the Appropriate Regulator
These resources help match regulator specifications to your application requirements.
Applications
Precision pressure regulators are used in systems where stable, highly accurate, and repeatable pressure control is essential to process performance and equipment reliability.
Common applications include:
- Calibration and test equipment
- Medical and respiratory devices
- Semiconductor manufacturing systems
- Leak testing equipment
- Gas analyzers and diagnostic systems
- Air gauging and measurement systems
- Coordinate measuring machines (CMMs)
- Pneumatic counterbalance systems
- Web tensioning systems
- Analytical instrumentation
- High-performance OEM automation equipment
- Microfluidic and low-pressure control systems
ControlAir precision regulators are trusted in applications where even minor pressure variation can affect measurement accuracy, process quality, or system consistency.
For more application-specific solutions, explore ControlAir’s: Industries We Serve.
Key Performance Considerations
When evaluating precision pressure regulators, understanding key performance characteristics is essential for selecting the right solution:
Accuracy and Repeatability
Precision regulators must consistently maintain the desired output pressure with minimal variation over time and repeated operating cycles.
Sensitivity and Resolution
High sensitivity allows the regulator to respond rapidly to small pressure deviations, which is critical in low-pressure and high-precision applications. Some ControlAir precision regulators provide sensitivity down to 1/8″ water column.
Low Droop and Stable Output
High-performance precision regulators minimize pressure drop as flow demand increases and maintain stable output under variable operating conditions.
Flow Capacity and Exhaust Performance
Applications with high forward flow or rapid exhaust requirements require regulators capable of maintaining control under dynamic conditions. ControlAir offers models with flow capacities up to 250 SCFM and relief capacities up to 80 SCFM.
Multi-Stage Pressure Control
Multi-stage regulator designs improve accuracy and stability by isolating control functions and minimizing the effects of supply pressure fluctuation.
Compact and OEM-Friendly Designs
Miniature and subminiature regulators support applications with limited installation space while still maintaining high regulation accuracy.
Environmental Durability and Reliability
Industrial applications may require corrosion-resistant materials, vibration resistance, and stable performance under changing environmental conditions.
For detailed technical specifications and performance data, view individual product pages or download datasheets available throughout this section.
Engineering Resources
ControlAir provides technical resources to support product selection, pneumatic system integration, and performance optimization:
Product Selection Guides
CAD Models & Product Specifier
Certifications
White Papers
FAQs
These resources provide additional insight into regulator performance, system integration, and application-specific selection criteria.
Need Help Selecting?
Choosing the right precision pressure regulator depends on your pressure range, flow requirements, sensitivity needs, and application environment.
If you need assistance selecting the best solution for your application, provide your system requirements and our team can help identify the appropriate regulator configuration.
Request a Quote
Ask an Expert
Find a Distributor
FAQs
What is a precision pressure regulator?
A precision pressure regulator maintains highly accurate and stable output pressure with exceptional sensitivity and repeatability, even when inlet pressure or flow demand changes.
What is the difference between a precision regulator and a general-purpose regulator?
Precision regulators provide higher accuracy, better sensitivity, lower droop, and improved stability compared to general-purpose regulators.
What does sensitivity mean in a precision regulator?
Sensitivity refers to how quickly the regulator responds to small pressure deviations from the setpoint. Higher sensitivity improves pressure stability and control accuracy.
What applications require precision pressure regulators?
Applications such as calibration equipment, medical devices, semiconductor manufacturing, leak testing, analytical instrumentation, and automation systems commonly require precision pressure regulators.
What is droop in a pressure regulator?
Droop refers to the decrease in output pressure as flow demand increases. Precision regulators are designed to minimize droop and maintain stable pressure under load.
