Description
Overview

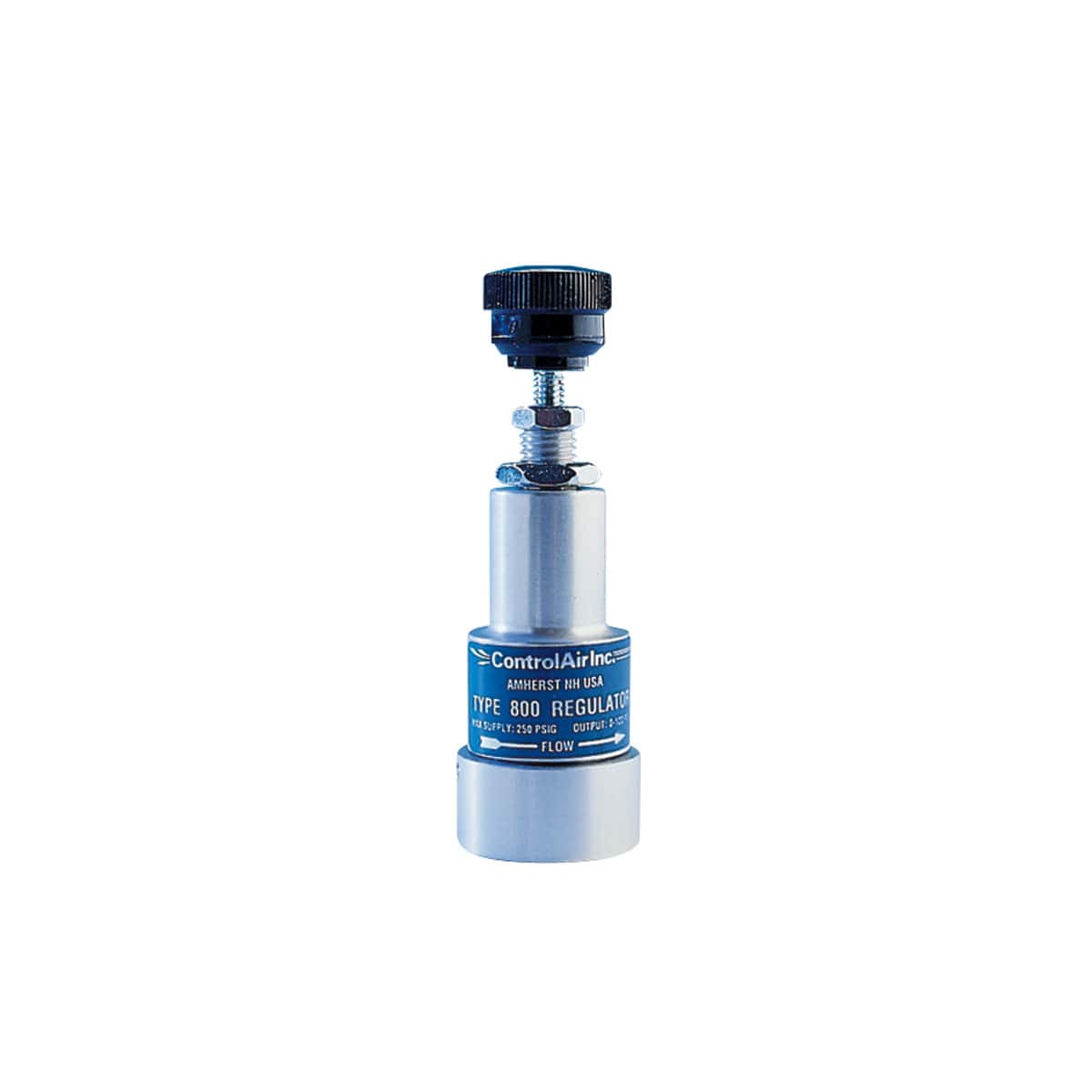

The Type 800 Subminiature Precision Pressure Regulator delivers highly accurate air pressure regulation in applications where installation space is limited. Despite its compact size, the Type 800 provides the same dependable performance found in larger ControlAir precision regulators, making it an ideal solution for portable equipment, control panels, instrumentation, and OEM pneumatic systems.
Designed with an oversized supply valve, the Type 800 offers significantly higher flow capacity than many competitive regulators of similar size. A built-in vibration damping mechanism helps maintain stable output pressure under changing operating conditions, while the self-relieving design ensures responsive pressure control and reliable operation. Corrosion-resistant materials, lightweight construction, and multiple mounting and porting options make the Type 800 an excellent choice for space-constrained applications.
Key Features
- Precision air pressure regulation in a compact package
- High flow capacity up to 5 SCFM
- Stable output pressure under changing operating conditions
- Vibration damping mechanism improves pressure stability
- Repeatable performance after supply pressure cycling
- Self-relieving design
- Lightweight construction (1.8 oz / 51 grams)
- Corrosion-resistant materials
- Available with 10-32, M5, and 1/16″ NPT porting
- Multiple mounting configurations available
- Five output pressure ranges up to 100 psig
- Available with ATEX certification
Performance Characteristics
Flow Capacity: 5 SCFM (150 Nl/min) at 100 psig supply and 30 psig setpoint
Exhaust Capacity: 0.4 SCFM (12 Nl/min)
Sensitivity: 1/2 in. (12.7 mm) water
Maximum Supply Pressure: 250 psig (17 bar)
Supply Pressure Effect: Less than 0.1 psi output change per 5 psi supply pressure change
Air Consumption: 3.0 SCFH (1.5 Nl/min) maximum
Temperature Range: -40°F to 160°F (-40°C to 71°C)
Weight: 1.8 oz (51 grams)
These characteristics provide stable, repeatable pressure regulation while maintaining a compact footprint and excellent flow-to-size performance.
How to Select the Right Configuration
Selecting the correct Type 800 configuration depends on your application requirements:
- Match the output pressure range to system operating requirements
- Select the appropriate port size for available space and connections
- Verify flow requirements against the regulator’s 5 SCFM capacity
- Consider manifold, threaded post, or standard mounting requirements
- Evaluate environmental and certification requirements
- Determine whether a non-relieving configuration is required
For additional guidance:
Applications
The Type 800 is recommended for applications requiring precise pressure control where space is limited:
- Ink pressure control systems
- Control panels
- Handheld calibration equipment
- Portable analyzing equipment
- Air cylinder control
- Pneumatic logic systems
- OEM instrumentation
- Test and measurement equipment
- Compact automation systems
- Portable pneumatic devices
Explore more applications: Industries We Serve
Technical Resources
FAQs
What makes the Type 800 different from other miniature regulators?
The Type 800 combines precision pressure regulation, high flow capacity, and stable output performance in an extremely compact package. An oversized supply valve provides greater flow capacity than many competitive regulators of similar size.
What applications is the Type 800 best suited for?
The Type 800 is ideal for control panels, handheld calibration equipment, portable analyzers, ink pressure control systems, pneumatic logic systems, and other applications where installation space is limited.
How does the Type 800 maintain stable pressure?
A built-in vibration damping mechanism helps keep the regulator stable under changing operating conditions, improving pressure consistency and overall system performance.
What pressure ranges are available?
The Type 800 is available in five output pressure ranges: 0-5, 0-15, 0-30, 0-60, and 0-100 psig.
What porting options are available?
The Type 800 is available with 1/16″ NPT, M5, and 10-32 porting configurations to accommodate a variety of installation requirements.
