Description
Overview

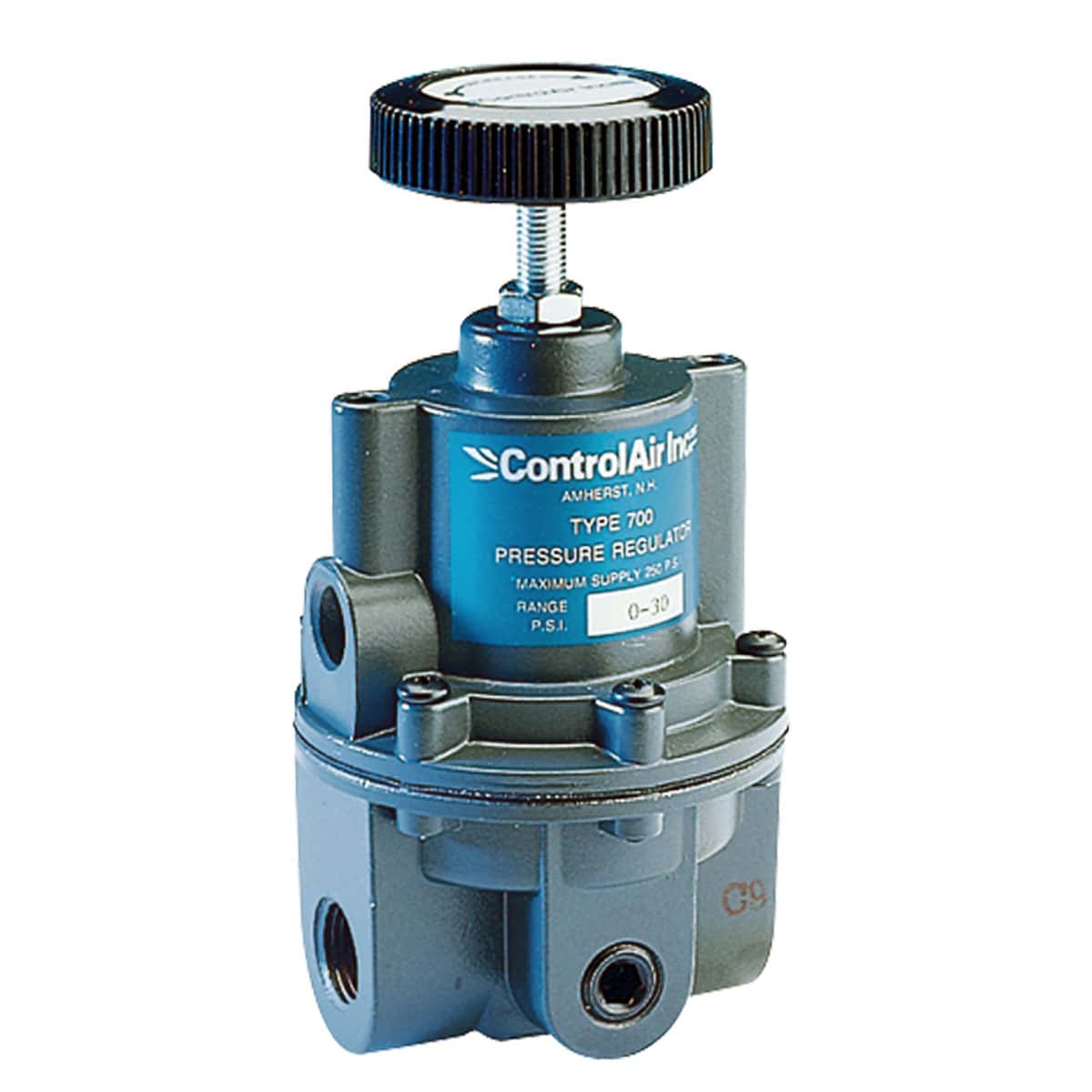

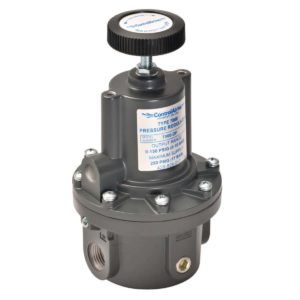

The Type 700 High Flow Pressure Regulator is designed for applications requiring high flow capacity, excellent sensitivity, and stable pressure regulation under varying operating conditions. Utilizing a balanced poppet valve, rolling diaphragm design, and aspirator-assisted flow control, the Type 700 delivers consistent downstream pressure while supporting flow rates up to 80 SCFM.
Unlike conventional pressure regulators that experience significant droop as flow demand increases, the Type 700 continuously compensates for changing flow conditions through its integrated aspirator tube. This design helps maintain stable outlet pressure during dynamic system operation, making it ideal for pneumatic actuators, valve operators, test systems, web tensioning equipment, and industrial automation applications.
The regulator combines high-capacity flow performance with excellent sensitivity and low supply pressure effect, providing reliable pressure control in both OEM and process control environments.
Key Features
- High flow capacity up to 80 SCFM (2,264 Nl/min)
- Balanced poppet valve design for stable pressure control
- Rolling diaphragm for excellent sensitivity and responsiveness
- Aspirator-assisted flow control minimizes droop under changing demand
- Low supply pressure effect for consistent outlet pressure
- Sensitivity to 1/8 in. water column (3.2 mm)
- Available in 1/4″, 3/8″, and 1/2″ port sizes
- Relieving and non-relieving configurations available
- Online maintenance capability without removing from the air line
- Multiple pressure ranges available
- Optional low-bleed, high-bleed, and check valve configurations
- Available with ATEX certification for hazardous area applications
Performance Characteristics
Flow Capacity: Up to 80 SCFM (2,264 Nl/min)
Exhaust Capacity: 4 SCFM (120 Nl/min)
Sensitivity: 1/8 in. water column (3.2 mm)
Supply Pressure Effect: Less than 0.1 psig output change per 100 psig supply pressure change
Maximum Supply Pressure: 250 psig (17 bar)
Air Consumption: 1.0 to 12.5 SCFH depending on pressure range
Temperature Range: -40°F to 160°F (-40°C to 71°C)
These performance characteristics support stable pressure control, reduced droop, and consistent operation across varying flow demands and supply pressure conditions.

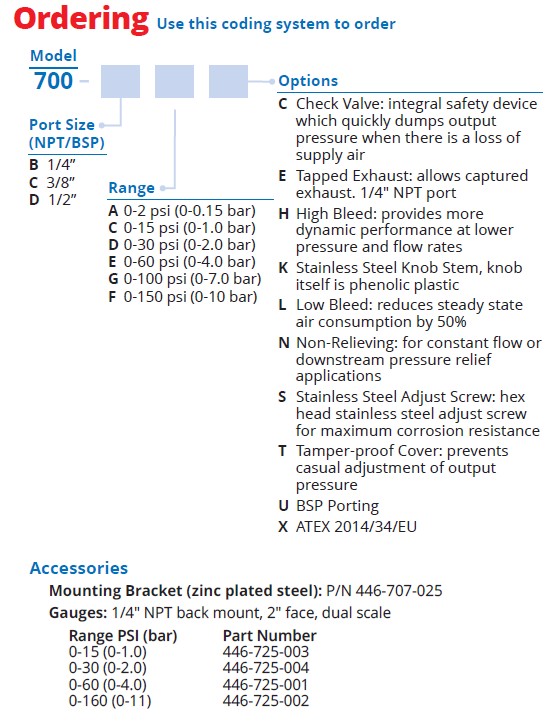

How to Select the Right Configuration
Selecting the correct Type 700 configuration depends on your application requirements:
- Match the output pressure range to system operating requirements
- Select the appropriate port size based on flow demand
- Determine whether relieving or non-relieving operation is required
- Consider low-bleed or high-bleed options based on system requirements
- Evaluate environmental and certification requirements
- Select optional check valve or tapped exhaust configurations when needed
For additional guidance:
Applications
The Type 700 high flow pressure regulator is commonly used in applications requiring stable pressure control at higher flow rates:
- Valve operators
- Pneumatic actuators
- Test equipment
- Test panels
- Gas mixing systems
- Web tensioning equipment
- Roll loading systems
- Clutch and brake controls
- Positioning cylinders
- Industrial automation systems
- Process control equipment
- OEM pneumatic systems
Explore more applications: Industries We Serve
Resources
FAQs
What makes the Type 700 different from a standard pressure regulator?
The Type 700 utilizes a balanced poppet valve, rolling diaphragm, and aspirator tube design to provide high flow capacity while minimizing pressure droop under changing flow conditions.
How much flow can the Type 700 handle?
The regulator supports flow rates up to 80 SCFM (2,264 Nl/min), making it suitable for high-demand pneumatic applications.
What is the benefit of the aspirator design?
The aspirator tube automatically adjusts airflow based on flow velocity, helping maintain stable outlet pressure as downstream demand changes.
When should I select a larger port size?
Larger port sizes should be selected when maximizing flow capacity and minimizing pressure loss are critical to system performance.
Can the Type 700 be serviced without removing it from the air line?
Yes. The regulator is designed for online maintenance, allowing service without removing the unit from the pneumatic system.
