How to Select a Back Pressure Regulator
Selecting the correct back pressure regulator requires understanding how your system manages upstream pressure, flow demand, and environmental conditions. Important selection criteria include pressure range, flow capacity, sensitivity, response stability, and application requirements.
Low-pressure systems often require highly sensitive regulators capable of maintaining stable relief pressure with minimal fluctuation, while high-flow industrial applications require regulators that can vent large volumes without instability or excessive pressure rise.

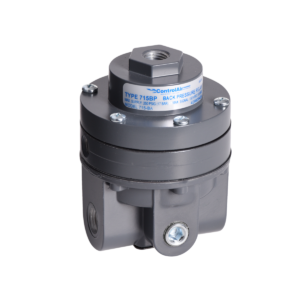

Signal-operated back pressure regulators provide dynamic pressure control through pneumatic or electro-pneumatic signals, making them ideal for automation systems and variable process control applications.
Key considerations include:
- Required upstream pressure range
- Flow capacity and venting requirements
- Sensitivity and pressure stability
- Manual vs. signal-operated control
- Environmental and hazardous-area requirements
- Port sizing and system integration
For additional guidance, review ControlAir’s
Product Selection Guides
How to Determine the Appropriate Regulator
These resources help match regulator performance characteristics to your application requirements.
Applications
Back pressure regulators are used in systems where maintaining stable upstream pressure is critical to process performance, safety, and equipment protection. These regulators automatically relieve excess pressure while maintaining accurate control under changing flow conditions.
Common applications include:
- Compressor pressure control systems
- Fuel cell and hydrogen testing applications
- Extrusion and process pressure control
- Pneumatic bypass and bleed systems
- Tank blanketing and pressure relief systems
- Industrial automation and machine control
- Process instrumentation and pneumatic control loops
- Flow control systems requiring stable upstream pressure
- Laboratory and analytical test systems
- High-flow industrial venting applications
For more application-specific solutions, explore ControlAir’s
Industries We Serve.
Key Performance Considerations
When evaluating back pressure regulators, understanding key performance characteristics is essential for selecting the right solution:
Pressure Stability and Repeatability
Determines how consistently the regulator maintains upstream pressure under changing flow conditions and varying system demand.
Sensitivity and Response
Critical for applications requiring precise pressure control and rapid relief response, particularly in low-pressure systems.
Flow Capacity
The regulator must handle the required venting volume without excessive pressure buildup or instability.
Low Hysteresis and Minimal Hunting
High-performance regulators minimize pressure oscillation and maintain stable control during continuous operation.
Pressure Range Compatibility
The regulator must operate effectively within the required upstream pressure range and system conditions.
Environmental and Industrial Durability
Applications involving vibration, harsh environments, or contaminated air require rugged regulator designs with proven industrial reliability.
Signal-Operated Control Capability
Signal-operated back pressure regulators allow remote or dynamic pressure adjustment for automated process systems and advanced pneumatic control applications.
For detailed technical specifications and performance data, view individual product pages or download datasheets available throughout this section.
Engineering Resources
ControlAir provides technical resources to support product selection, system integration, and application performance optimization:
Product Selection Guides
CAD Models & Product Specifier
Certifications
White Papers
FAQs
These resources provide additional insight into product capabilities, application requirements, and system integration considerations.
Need Help Selecting?
Choosing the right back pressure regulator depends on your pressure range, flow requirements, control method, and operating environment.
If you need assistance selecting the best solution for your application, provide your system requirements and our team can help identify the appropriate regulator configuration.
Request a Quote
Ask an Expert
Find a Distributor
FAQs
What is a back pressure regulator?
A back-pressure regulator maintains upstream pressure by automatically relieving excess pressure when the system exceeds a preset pressure level.
How does a back-pressure regulator differ from a pressure regulator?
A standard pressure regulator controls downstream pressure, while a back pressure regulator controls upstream pressure by venting excess pressure from the system.
When should I use a signal-operated back pressure regulator?
Signal-operated back pressure regulators are ideal for automated systems requiring remote adjustment, dynamic pressure control, or integration with pneumatic and electro-pneumatic control systems.
What applications use back pressure regulators?
Common applications include compressor systems, extrusion processes, fuel cell testing, bypass systems, tank blanketing, industrial automation, and process pressure control.
What factors are important when selecting a back pressure regulator?
Important selection criteria include pressure range, flow capacity, sensitivity, stability, response time, environmental conditions, and whether manual or signal-operated control is required.
