Description
Overview

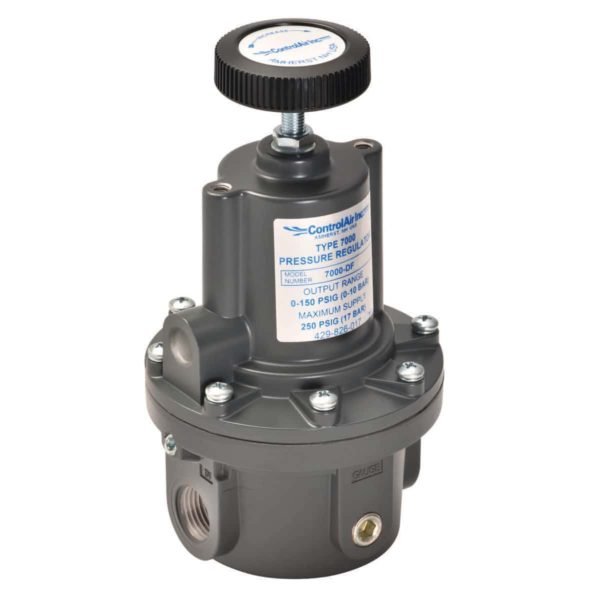

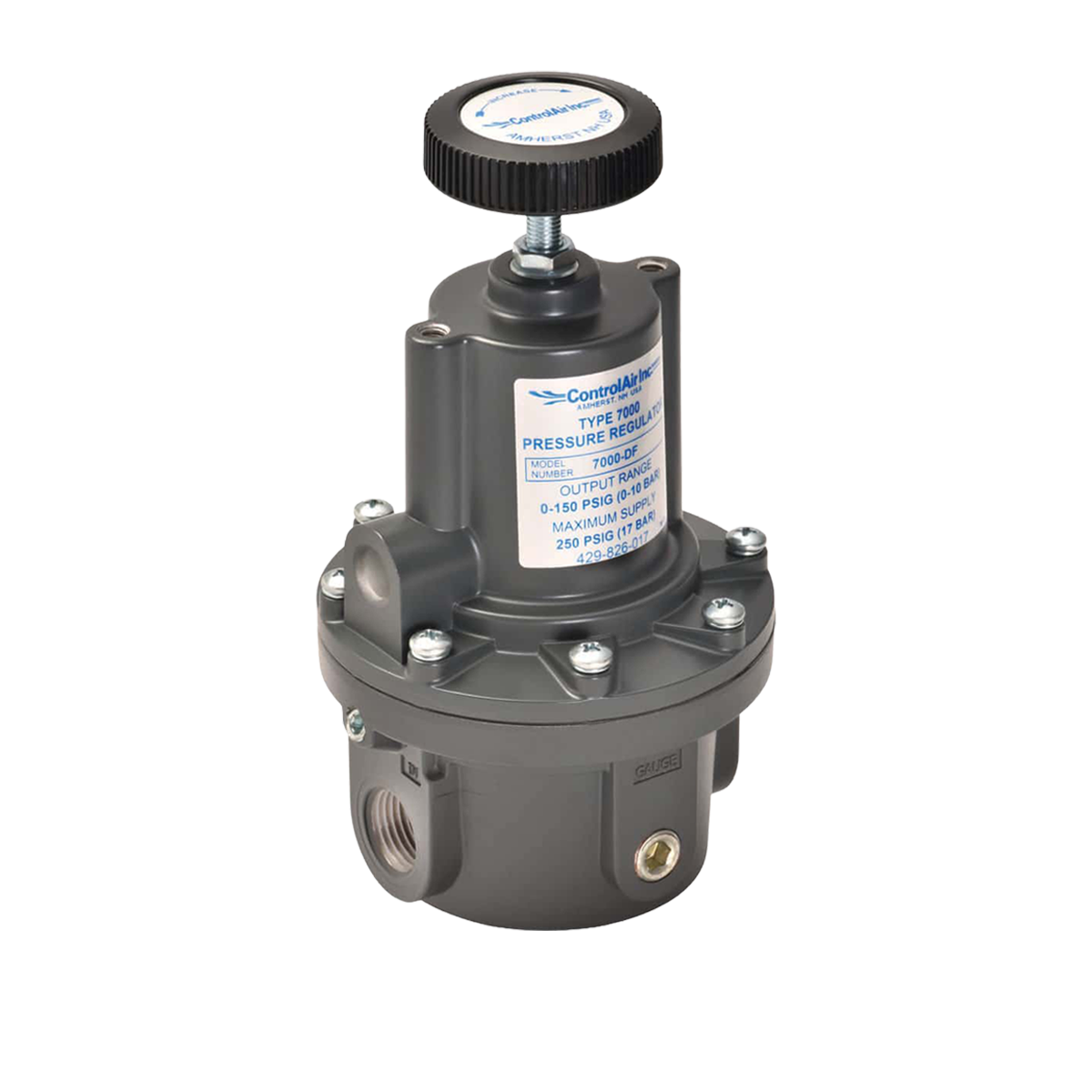

The Type 7000 Precision Air Pressure Regulator is designed for applications requiring exceptionally high flow capacity while maintaining precise pressure control, low droop, and stable downstream performance. Unlike conventional high-flow regulators that often sacrifice regulation accuracy under varying demand conditions, the Type 7000 combines large flow capability with the sensitivity and stability required for process control, industrial automation, instrumentation, and OEM pneumatic systems.
Capable of supporting flows up to 250 SCFM, the Type 7000 utilizes an isolated control chamber and balanced supply valve design to minimize the effects of supply pressure variation and downstream flow changes. This advanced design helps maintain stable outlet pressure while reducing vibration and pressure fluctuations during dynamic operating conditions.
Available in 1/4″, 1/2″, and 3/4″ NPT port sizes with pressure ranges from 0-2 psig through 0-200 psig, the Type 7000 provides a versatile solution for applications requiring high-capacity pressure regulation, precise adjustment, and dependable long-term performance. Multiple options, including low-bleed, near-zero leakage, non-relieving, and ATEX-certified configurations, allow users to tailor the regulator to specific operational requirements.
Key Features
- High flow capacity up to 250 SCFM
- Precision pressure regulation with low droop characteristics
- Balanced supply valve minimizes supply pressure effects
- Isolated control chamber improves pressure stability
- Sensitive control responds to pressure deviations within 1/2″ water column
- Available in 1/4″, 1/2″, and 3/4″ NPT port sizes
- Two 1/4″ NPT gauge ports
- Stable output pressure under varying flow conditions
- Pressure ranges up to 200 psig (13.8 bar)
- Low Bleed option reduces air consumption by up to 50%
- Near-Zero Leakage option available for natural gas service
- Non-relieving option available
- Tamper-proof cover option available
- Captured exhaust option available
- ATEX-certified configurations available
- Pipe, panel, or bracket mounting
Performance Characteristics
Key Performance Metrics
Maximum Flow Capacity: Up to 250 SCFM
Flow Coefficients (Cv):
- 1/4″ Port: 2.0
- 1/2″ Port: 4.3
- 3/4″ Port: 5.0
Exhaust Capacity: 30 SCFM (790 Nl/min)
Sensitivity:
- Less than 1/2″ water column
- G Option: 1″ water column
Supply Pressure Effect: Less than 0.3 psi output variation per 100 psi supply pressure change
Maximum Supply Pressure: 250 psig (17.5 bar)
Air Consumption – Standard Models:
- 1.0 to 12.5 SCFH (26 to 330 Nl/hr)
Low Bleed Option (L):
- 1.0 to 6.0 SCFH (26 to 158 Nl/hr)
Near-Zero Leakage Option (G):
- Less than 0.1 SCFH (2.6 Nl/hr)
Operating Temperature Range:
- -40°F to 200°F (-40°C to 93°C)
Port Sizes:
- 1/4″ NPT
- 1/2″ NPT
- 3/4″ NPT
Gauge Ports:
- Two 1/4″ NPT
Weight:
- 2.5 lbs (1.13 kg)
Mounting Options:
- Pipe mount
- Panel mount
- Bracket mount
Output Pressure Ranges:
- 0-2 psig (0-0.15 bar)
- 0-10 psig (0-0.69 bar)
- 0-30 psig (0-2.0 bar)
- 0-60 psig (0-4.0 bar)
- 0-100 psig (0-6.89 bar)
- 0-150 psig (0-10 bar)
- 0-200 psig (0-13.8 bar)

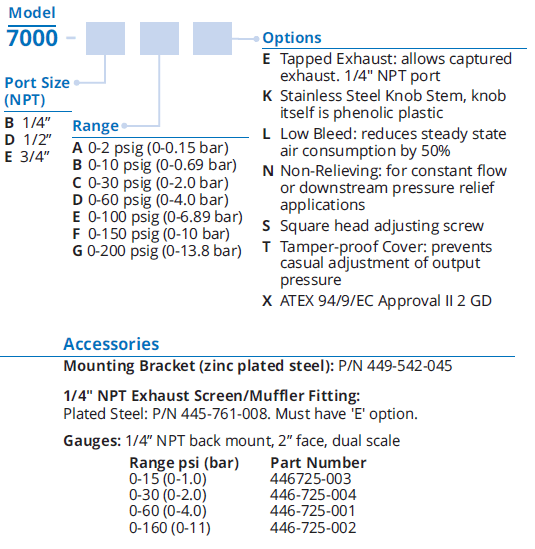

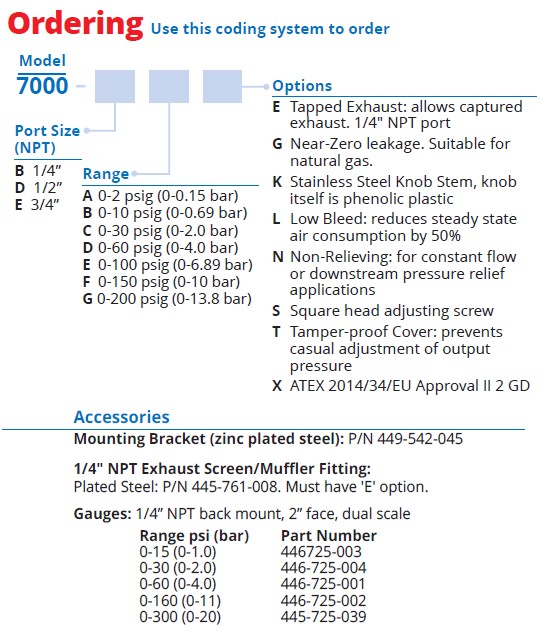

How to Select the Right Configuration
Selecting the correct Type 7000 configuration depends on your application requirements:
- Match the output pressure range to the desired operating pressure
- Select the port size based on required system flow
- Choose the Low Bleed option to reduce compressed air consumption
- Select the Near-Zero Leakage option for natural gas applications
- Specify the Non-Relieving option for systems utilizing external pressure relief
- Consider the Captured Exhaust option when vented air must be controlled
- Evaluate tamper-proof adjustment requirements
- Review ATEX certification requirements for hazardous area installations
For additional guidance:
Applications
The Type 7000 Precision Air Pressure Regulator is designed for applications requiring high flow capacity combined with precise pressure control and long-term stability.
Applications include:
- Industrial automation systems
- Process control systems
- Pneumatic valve actuation
- OEM pneumatic equipment
- Manufacturing machinery
- Air preparation systems
- Packaging equipment
- Instrument air systems
- Test and measurement equipment
- Pneumatic control panels
- Natural gas pressure control systems
- General industrial pressure regulation
Explore more applications: Industries We Serve
Resources
FAQs
What makes the Type 7000 different from a standard pressure regulator?
The Type 7000 combines high flow capacity up to 250 SCFM with precision pressure regulation. Its isolated control chamber and balanced supply valve design help maintain stable output pressure while minimizing the effects of supply pressure fluctuations and changing flow demands.
How does the balanced supply valve improve performance?
The balanced supply valve virtually eliminates output pressure changes caused by supply pressure variation, resulting in more stable downstream pressure control and improved process consistency.
What flow capacity can the Type 7000 support?
The Type 7000 supports flows up to 250 SCFM and is available with Cv values up to 5.0, making it suitable for high-demand pneumatic systems and valve actuator applications.
Is the Type 7000 available for natural gas applications?
Yes. The Near-Zero Leakage (G) option is designed for natural gas service and reduces air consumption to less than 0.1 SCFH.
What options are available for specialized applications?
Available options include Low Bleed, Near-Zero Leakage, Non-Relieving, Captured Exhaust, Tamper-Proof Cover, Stainless Steel Knob Stem, Square Head Adjustment, and ATEX certification.
