Description
Overview
The ControlAir Mini Might Rolling Diaphragm Air Cylinders deliver the same virtually friction-free performance as ControlAir’s larger rolling diaphragm cylinders in an extremely compact package. Utilizing ControlAir’s unique rolling diaphragm technology, Mini Mights eliminate stiction and blow-by leakage to provide exceptional sensitivity, outstanding repeatability, and precise linear motion for space-constrained applications.
Unlike conventional miniature cylinders that rely on sliding seals, Mini Mights use a rolling diaphragm that virtually eliminates friction throughout the stroke. The result is smooth, accurate movement with low hysteresis, making these cylinders ideal for precision force control, positioning, and OEM equipment where reliable, repeatable pneumatic motion is essential.
Available in MM-1 and MM-2 configurations, Mini Might cylinders feature a compact aluminum body, reinforced nitrile rolling diaphragm, chrome-plated steel rod, and sintered bronze bearing for long service life and dependable performance in demanding industrial environments. Both models provide a 0.70-inch stroke with a maximum operating pressure of 125 psig.
Key Features
- Compact rolling diaphragm air cylinder
- Virtually friction-free operation
- Highly sensitive response
- Low hysteresis
- Excellent repeatability
- No blow-by leakage
- Compact lightweight design
- Reinforced nitrile rolling diaphragm
- Aluminum cylinder body
- Chrome-plated steel rod
- Sintered bronze bearing
- Available with threaded or unthreaded rod ends
- Flush or extended rod configurations
- Ideal for OEM and space-constrained applications
These features are also highlighted on the current ControlAir product page for the Mini Might family.
Performance Characteristics
Mini Might cylinders are designed for precision pneumatic applications requiring smooth, accurate linear motion in a compact package. Their rolling diaphragm design virtually eliminates seal friction, allowing the cylinder to respond to very small pressure changes while maintaining exceptional repeatability and low hysteresis. Because there is no stiction or blow-by leakage, Mini Mights provide uncompromising motion control compared to conventional miniature cylinders.
Performance Specifications
- Maximum Operating Pressure: 125 psig (8.6 bar)
- Stroke: 0.70 in. (18 mm)
- Effective Pressure Area: 0.384 in²
- Equivalent Bore: 0.70 in.
- Spring Load: 2 lbs. at zero stroke
- Maximum Spring Load: 7 lbs.
- Pipe Connection: 1/8-27 NPSF
- Rod Diameter: 1/4 in.
Construction Materials
- Aluminum alloy cylinder
- Reinforced nitrile rolling diaphragm
- Chrome-plated steel rod
- Sintered bronze bearing
- Music wire spring
Mini Mights provide the same low-friction operating characteristics as ControlAir’s larger rolling diaphragm cylinders while minimizing installation space, making them an excellent choice for compact automation equipment and precision pneumatic systems.
How to Select the Right Configuration
Mini Might Rolling Diaphragm Air Cylinders are designed for applications where space is limited but precise pneumatic motion is essential. When selecting the appropriate model, consider the required rod configuration, mounting style, and installation requirements.
Select the appropriate model
Mini Might cylinders are available in two standard models:
- MM-1 – Flush rod configuration

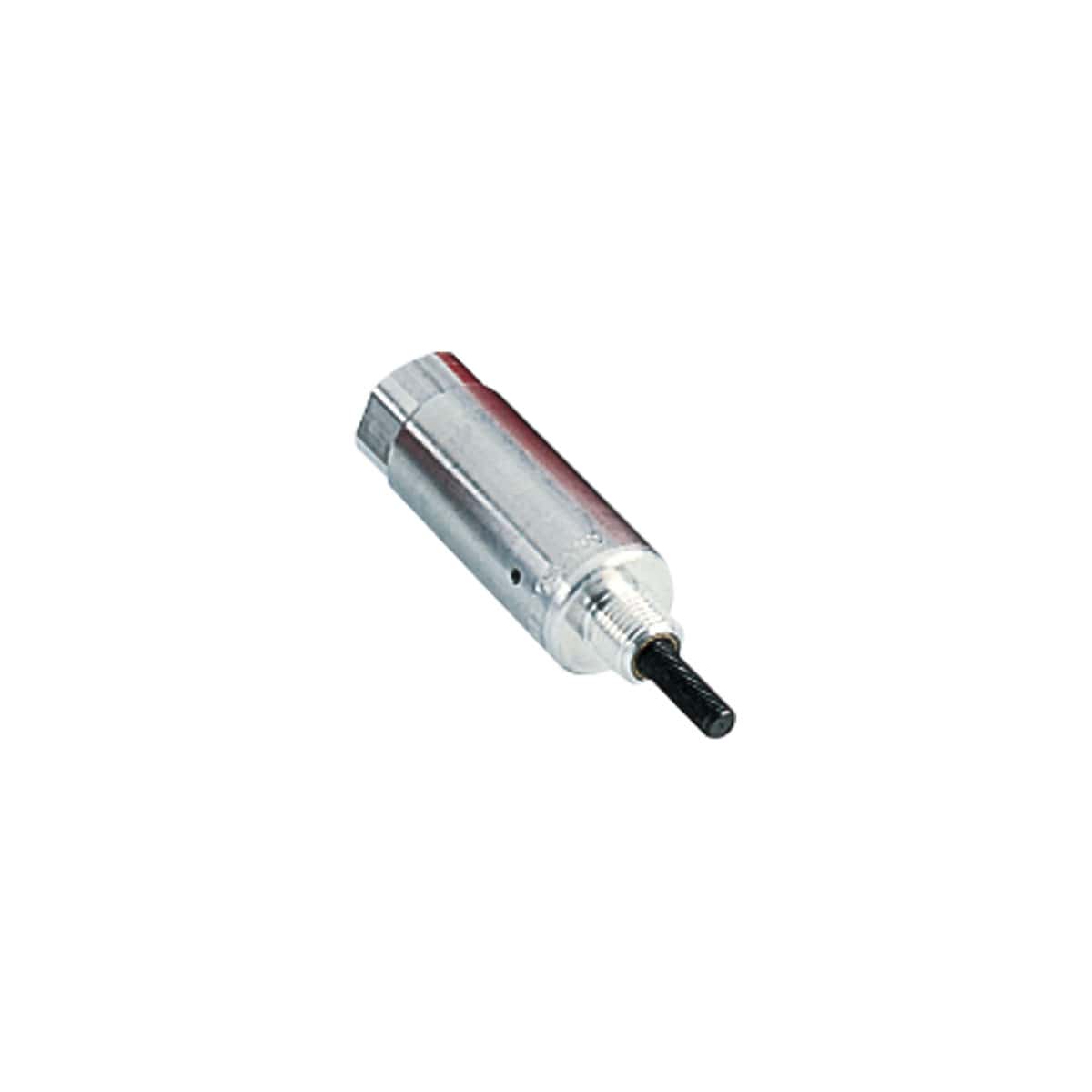

- MM-2 – Extended threaded rod configuration
Both models provide the same operating pressure, stroke, effective pressure area, and low-friction rolling diaphragm performance. The primary difference is the rod-end configuration to accommodate various mounting and connection requirements.
Determine force requirements
Mini Might cylinders feature:
- Effective Pressure Area: 0.384 in²
- Maximum Operating Pressure: 125 psig
- Initial Spring Load: 2 lbs.
- Maximum Spring Load: 7 lbs.
These specifications make Mini Might cylinders well suited for light-duty precision positioning, force control, and compact automation applications.
Consider installation requirements
Mini Might cylinders feature a compact design that simplifies installation where mounting space is limited.
Standard features include:
- 0.70-inch stroke
- 1/8-27 NPSF air connection
- Aluminum alloy body
- Chrome-plated steel rod
- Reinforced nitrile rolling diaphragm
The compact package makes these cylinders ideal for OEM equipment, laboratory devices, and automated machinery where conventional cylinders may be too large.
Need help selecting the right Mini Might cylinder?
Applications
Mini Might Rolling Diaphragm Air Cylinders are designed for precision, low-force pneumatic applications where compact size, smooth motion, and exceptional sensitivity are required.
Typical applications include:
- Precision positioning systems
- Laboratory and analytical equipment
- Semiconductor manufacturing equipment
- Medical devices
- OEM automation equipment
- Small valve actuation
- Instrumentation
- Packaging machinery
- Test and inspection equipment
- Robotics and end-of-arm tooling
- Pick-and-place systems
- Electronic assembly equipment
- Precision force control
- Compact pneumatic mechanisms
Their rolling diaphragm design provides virtually friction-free operation, making Mini Might cylinders especially well suited for applications requiring smooth, repeatable motion with minimal pressure variation.
Models & Configurations
Mini Might Rolling Diaphragm Air Cylinders are available in two standard configurations to accommodate different rod-end requirements while providing the same high-performance rolling diaphragm technology.
Available Models
| Model | Description |
|---|---|
| MM-1 | Flush rod configuration |
| MM-2 | Extended threaded rod configuration |
Both models feature:
- 0.70-inch stroke
- 0.384 in² effective pressure area
- Maximum operating pressure of 125 psig
- Virtually friction-free rolling diaphragm operation
- Aluminum alloy cylinder body
- Reinforced nitrile diaphragm
- Chrome-plated steel rod
- Sintered bronze bearing
Available Options
- Flush or extended rod configurations
- Threaded or unthreaded rod ends
- Compact installation design
- Precision rolling diaphragm technology
- Long service life construction

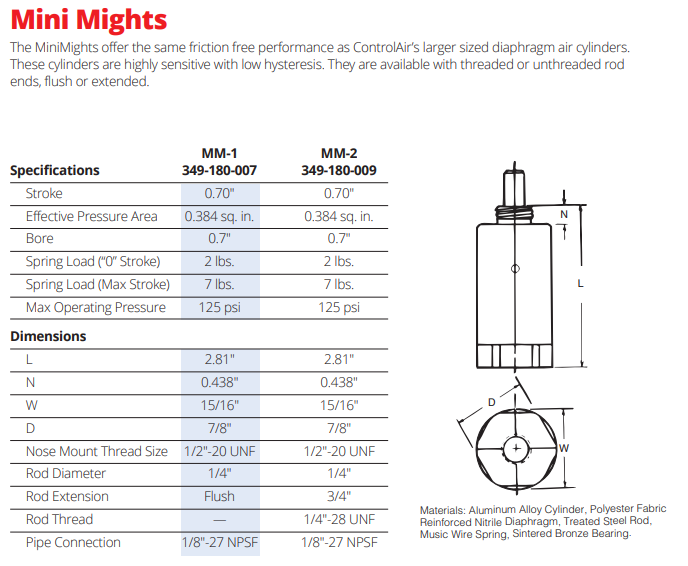

Technical Specifications
- Maximum Operating Pressure: 125 psig
- Stroke: 0.70 in.
- Effective Pressure Area: 0.384 in²
- Equivalent Bore: 0.70 in.
- Air Connection: 1/8-27 NPSF
Technical Resources
- Mini Might Rolling Diaphragm Air Cylinders Catalog (PDF)
- Installation Instructions
- 3D CAD Models
- Engineers Resource Center
- Find a Distributor
- Contact Technical Support
FAQs
What is a Mini Might Rolling Diaphragm Air Cylinder?
A Mini Might Rolling Diaphragm Air Cylinder is a compact pneumatic actuator that uses ControlAir’s rolling diaphragm technology to provide virtually friction-free linear motion. It offers exceptional sensitivity, low hysteresis, and smooth, repeatable performance for precision applications where installation space is limited.
How does a Mini Might differ from a conventional miniature pneumatic cylinder?
Unlike conventional miniature cylinders that use sliding piston seals, the Mini Might utilizes a rolling diaphragm that virtually eliminates seal friction and blow-by leakage. This design provides more responsive motion, greater repeatability, and improved sensitivity to small pressure changes.
What models are available?
Mini Might cylinders are available in two standard models:
- MM-1 – Flush rod configuration
- MM-2 – Extended threaded rod configuration
Both models provide the same operating pressure, stroke, and performance characteristics.
What operating pressure do Mini Might cylinders support?
Mini Might Rolling Diaphragm Air Cylinders are designed for operating pressures up to 125 psig (8.6 bar).
What is the stroke length?
Both Mini Might models feature a 0.70-inch stroke, making them ideal for compact, precision pneumatic applications.
What materials are used in Mini Might cylinders?
Mini Might cylinders are constructed using:
- Aluminum alloy cylinder
- Reinforced nitrile rolling diaphragm
- Chrome-plated steel rod
- Sintered bronze bearing
- Music wire spring
These materials provide long service life and reliable operation in demanding industrial environments.
What applications are Mini Might cylinders used in?
Mini Might cylinders are commonly used in:
- Precision positioning systems
- OEM automation equipment
- Medical devices
- Laboratory equipment
- Semiconductor manufacturing equipment
- Packaging machinery
- Test and inspection equipment
- Instrumentation
- Small valve actuation
- Robotics and pick-and-place systems
Their compact size and low-friction performance make them ideal for applications requiring accurate, repeatable linear motion.
What are the benefits of a rolling diaphragm design?
The rolling diaphragm design provides several advantages over conventional piston seals, including:
- Virtually friction-free operation
- Outstanding sensitivity
- Low hysteresis
- Smooth, repeatable motion
- No blow-by leakage
- Long service life
These characteristics make Mini Might cylinders well suited for precision pneumatic control applications.
Do Mini Might cylinders require lubrication?
The rolling diaphragm design minimizes friction and eliminates the need for conventional sliding piston seals, resulting in smooth operation with minimal maintenance requirements.
Can Mini Might cylinders be integrated into OEM equipment?
Yes. Mini Might cylinders are specifically designed for compact OEM machinery and automation systems where installation space is limited but precise pneumatic motion is required. Their lightweight construction and compact dimensions simplify integration into new equipment designs.
