Description
Overview

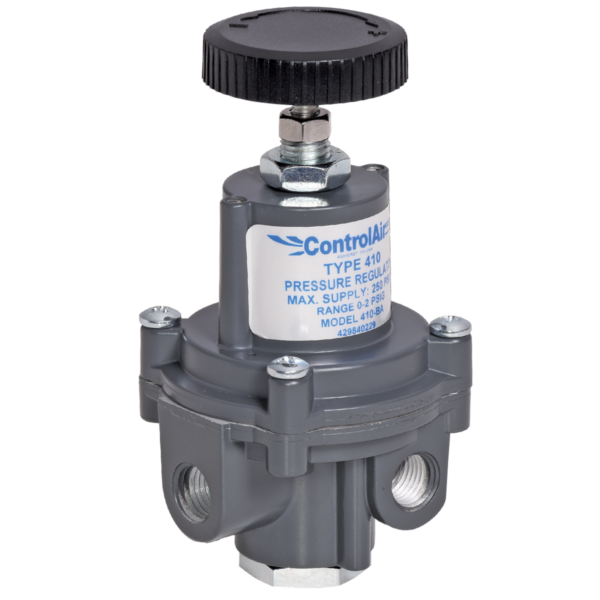

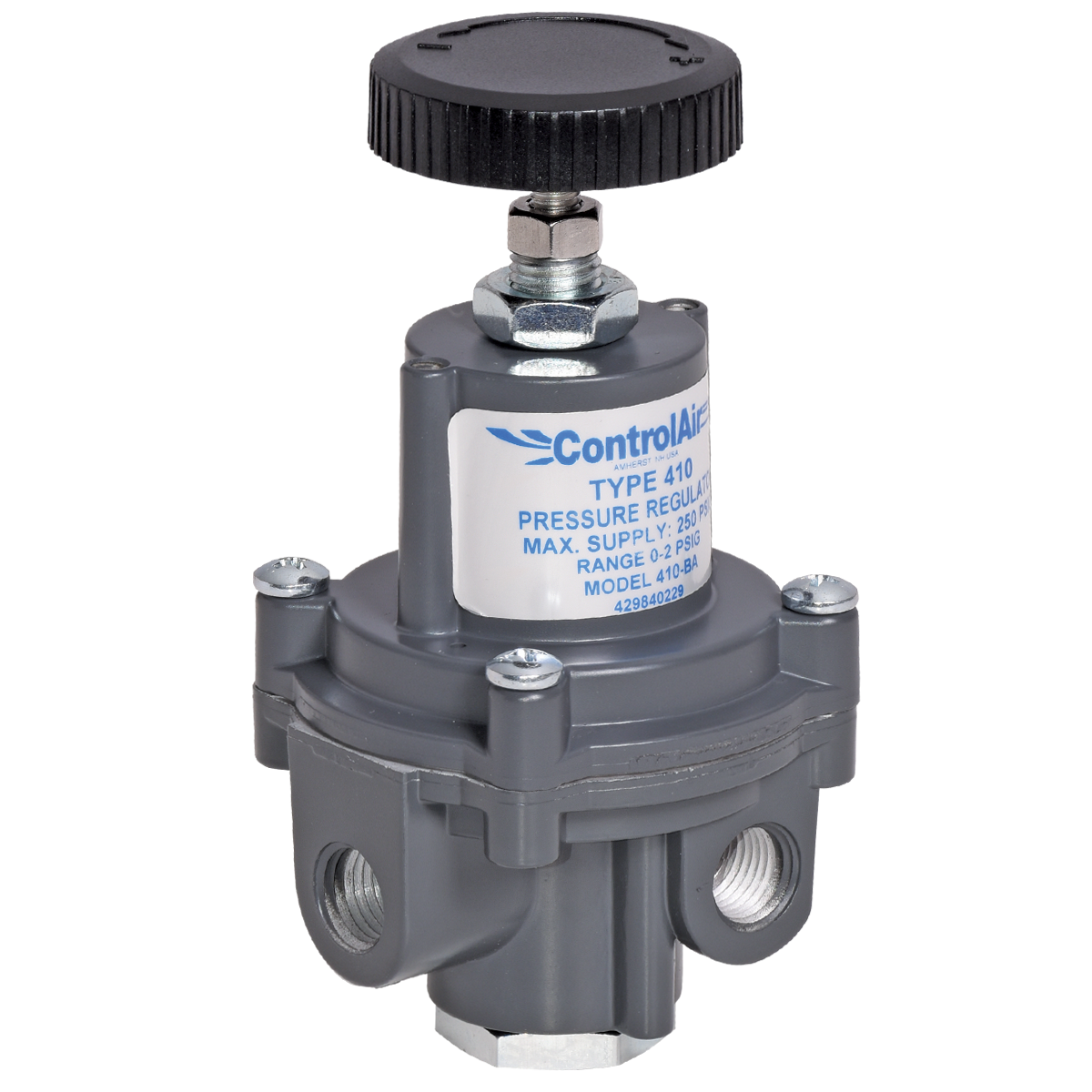

The Type 410 High Precision Pressure Regulator delivers stable, repeatable air pressure control for industrial process applications requiring reliable performance under changing operating conditions. Designed as a cost-effective alternative to more complex precision regulators, the Type 410 combines excellent regulation characteristics, low droop performance, and durable construction in a compact, economical package. It is particularly well suited for OEM equipment, pneumatic control systems, laboratory instrumentation, and industrial automation applications where dependable pressure control is critical.
Engineered with an aspirator-assisted design and precision adjustment mechanism, the Type 410 maintains stable outlet pressure while minimizing droop at higher flow rates. Corrosion-resistant construction and factory-tested performance ensure long-term reliability even in demanding industrial environments.
Key Features
- High precision pressure regulation for industrial process applications
- Stable output pressure under variable operating conditions
- Excellent repeatability and reliability
- Low droop performance at higher flow rates
- Aspirator design improves pressure stability under flow demand
- Fine-pitch adjustment threads for precise setpoint control
- Corrosion-resistant die-cast aluminum housing
- Chromate conversion coating and epoxy paint finish
- Factory-tested for pressure, leak, and flow performance
- Economical solution for high-volume OEM applications
- Available in relieving and non-relieving configurations
- Low-bleed, and ATEX options available
- Suitable for panel, pipe, or bracket mounting
Performance Characteristics
| Specification | Value |
|---|
| Port Size | 1/4″ NPT |
| Output Pressure Ranges | 0–2, 0–10, 0–30, 0–60, 0–100 psig |
| Exhaust Capacity | 0.1 scfm (2.8 NL/min) |
| Sensitivity | 1/2″ water column (1.3 cm) |
| Supply Pressure Effect | Less than 0.2 psig per 25 psig supply change |
| Maximum Supply Pressure | 250 psig (17 bar) |
| Air Consumption | Less than 6 scfh (170 NL/min) |
| Temperature Range | 0°F to 160°F (-18°C to 71°C) |
| Mounting | Pipe, panel, or optional bracket |
These performance characteristics provide a balance of precision, stability, and affordability, making the Type 410 an excellent choice for industrial control applications that require dependable regulation without the complexity of laboratory-grade regulators.
How to Select the Right Configuration
Selecting the correct Type 410 configuration depends on application requirements:
Match the Pressure Range
Available output ranges include:
- 0–2 psig (0–0.15 bar)
- 0–10 psig (0–0.7 bar)
- 0–30 psig (0–2 bar)
- 0–60 psig (0–4 bar)
- 0–100 psig (0–7 bar)
Determine Relief Requirements
- Relieving models automatically vent downstream overpressure.
- Non-relieving models are available where venting is undesirable.
Consider Environmental Conditions
Options include:
- Standard brass trim
- Low-bleed versions
- ATEX-certified configurations
Evaluate Installation Requirements
The Type 410 supports:
- Pipe mounting
- Panel mounting
- Optional side mounting bracket
For additional guidance:
Applications
The Type 410 is designed for applications requiring stable and repeatable pressure regulation in industrial environments:
- Pneumatic control systems
- Pressure testing equipment
- Laboratory instrumentation
- HVAC systems
- Packaging machinery
- Process automation systems
- OEM equipment
- Quality control equipment
- Pneumatic assembly systems
- General industrial pressure regulation
Its combination of precision, durability, and cost-effectiveness makes it particularly attractive for high-volume OEM applications and industrial process control systems.
Environmental Performance
The Type 410 is engineered for dependable operation in harsh industrial environments.
Environmental Characteristics
- Operating temperature range from 0°F to 160°F (-18°C to 71°C)
- Corrosion-resistant die-cast aluminum housing
- Chromate conversion coating and epoxy paint finish
- Designed for industrial process environments
- Stable operation under varying supply pressures
- Factory pressure, leak, and flow tested before shipment
The regulator’s rugged construction and protective finishes provide long-term performance in demanding OEM and industrial applications.
Technical Resources
FAQs
What makes the Type 410 a high precision regulator?
The Type 410 combines precision adjustment, low droop performance, and stable regulation characteristics to provide repeatable pressure control under changing operating conditions.
How does the Type 410 minimize droop?
An integrated aspirator design helps maintain set pressure as flow demand increases, reducing pressure drop commonly experienced in conventional regulators.
What industries commonly use the Type 410?
The Type 410 is commonly used in pneumatic control systems, laboratory instrumentation, HVAC equipment, packaging machinery, pressure testing systems, and OEM automation equipment.
Is the Type 410 suitable for OEM applications?
Yes. The Type 410 was specifically designed as a cost-effective, high-performance regulator for high-volume OEM applications requiring reliable pressure control.
What mounting options are available?
The regulator can be pipe mounted, panel mounted, or installed using an optional side mounting bracket depending on system requirements.

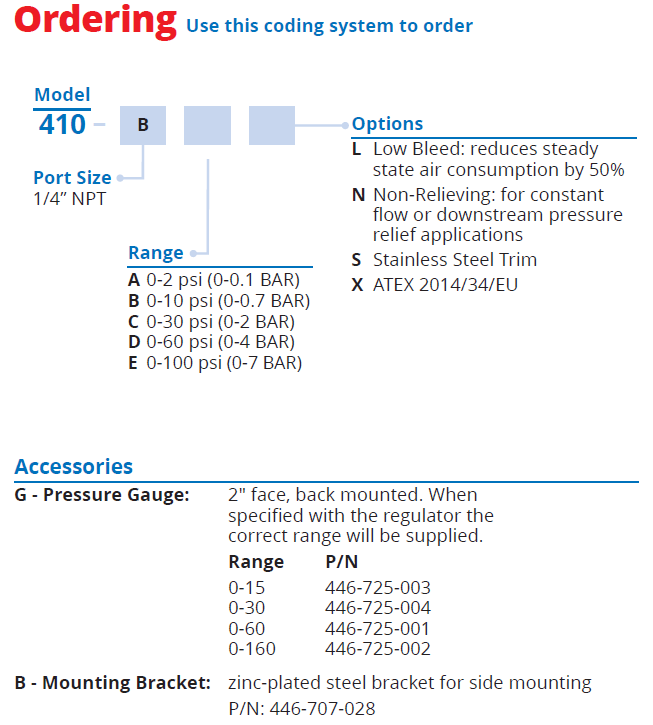

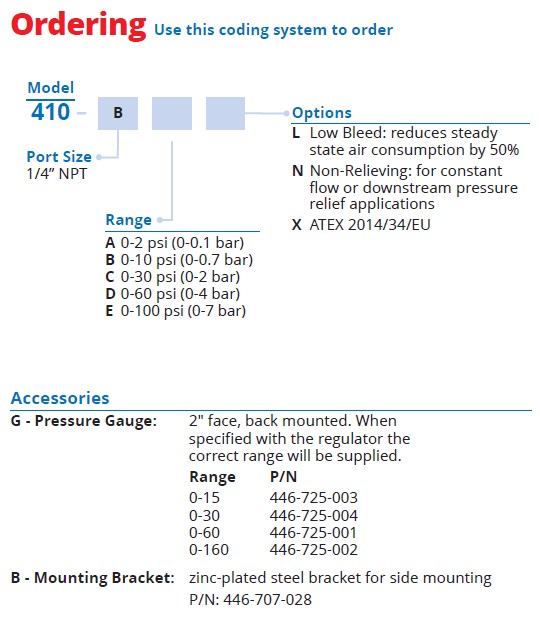

Models & Configurations
Available Pressure Ranges
| Range Code | Output Pressure |
| A | 0–2 psig (0–0.1 bar) |
| B | 0–10 psig (0–0.7 bar) |
| C | 0–30 psig (0–2 bar) |
| D | 0–60 psig (0–4 bar) |
| E | 0–100 psig (0–7 bar) |
Standard Models
| Model | Port Size |
| 410 | 1/4″ NPT |
Available Options
L – Low Bleed
Reduces steady-state air consumption by approximately 50%.
Ideal for:
- Energy-conscious facilities
- Remote pneumatic systems
- OEM equipment
- Compressed air conservation initiatives
N – Non-Relieving
Designed for:
- Constant flow applications
- Systems with external pressure relief
- Closed pneumatic circuits
X – ATEX 2014/34/EU
Certified for use in potentially explosive atmospheres.
Suitable for:
- Oil & gas facilities
- Chemical processing
- Hazardous industrial locations
Example Model Configurations
| Model | Description |
| 410-A | 0–2 psig Range |
| 410-B | 0–10 psig Range |
| 410-C | 0–30 psig Range |
| 410-D | 0–60 psig Range |
| 410-E | 0–100 psig Range |
| 410-EL | 0–100 psig, Low Bleed |
| 410-EN | 0–100 psig, Non-Relieving |
| 410-ES | 0–100 psig, Stainless Steel Trim |
| 410-EX | 0–100 psig, ATEX Certified |
Accessories
Pressure Gauge (G)
2″ face, back-mounted pressure gauge.
Available ranges:
- 0–15 psig
- 0–30 psig
- 0–60 psig
- 0–160 psig
Mounting Bracket (B)
Zinc-plated steel bracket for side mounting applications.
| Type | Part Number | Thread Size | Pressure Range | Wetted Material |
|---|
Gauge - Back Mount | 446-725-003 | 1/4" NPT | 0-15 (0-1bar) | Brass |
Gauge - Back Mount | 446-725-004 | 1/4" NPT | 0-30 PSI (0-2bar) | Brass |
Gauge - Back Mount | 446-725-001 | 1/4" NPT | 0-60 PSI (0-4bar) | Brass |
Gauge - Back Mount | 446-725-002 | 1/4" NPT | 0-160 PSI (0-11bar) | Brass |
Mounting Bracket: zinc-plated steel bracket for side mounting – Part Number: 446-707-028
