Description

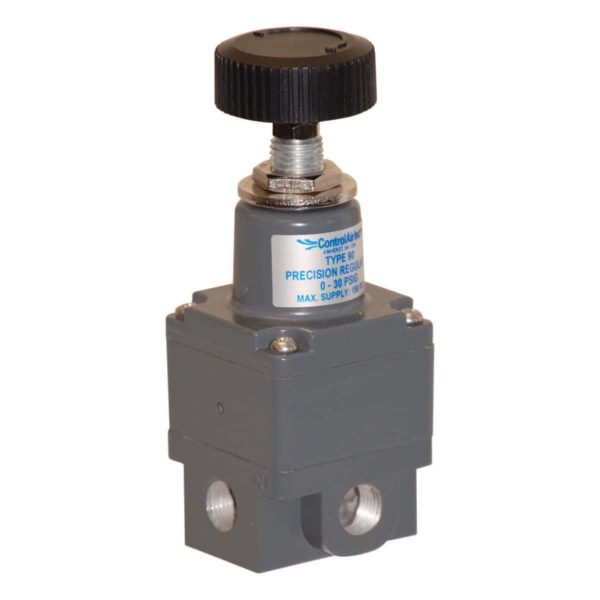

The Type 90 Miniature Precision Air Pressure Regulator delivers exceptional pressure regulation accuracy and repeatability in a compact, lightweight package. Designed for applications where installation space is limited but precise pressure control is critical, the Type 90 utilizes a force-balanced pilot control system that maintains output pressure within 0.05 psig (3.44 mbar), providing stable and repeatable performance across varying operating conditions.
Unlike conventional miniature regulators that sacrifice performance for size, the Type 90 combines precision regulation with substantial flow capacity. Its force-balanced design continuously compensates for changes in supply pressure and downstream demand, helping maintain consistent outlet pressure in instrumentation, analytical equipment, calibration systems, and OEM pneumatic applications.
For manufacturers seeking RoHS-compliant pneumatic components, the Type 90 is available with Option “M” no-brass construction. This lead-free configuration helps OEMs and equipment manufacturers address RoHS 2 compliance requirements and concerns surrounding lead-containing brass components while maintaining the same precision pressure control performance expected from ControlAir regulators.
Designed, assembled, and tested in New Hampshire, USA, the Type 90 provides a dependable solution for OEM equipment, laboratory instrumentation, semiconductor systems, medical devices, and industrial automation applications requiring compact, high-performance pressure regulation.
Key Features
- Force-balanced pilot control design
- Maintains output pressure within 0.05 psig (3.44 mbar)
- Exceptional repeatability and pressure stability
- Compact, lightweight construction
- Flow capacity up to 14 SCFM (396 Nl/min)
- High-resolution pressure adjustment
- Available pressure ranges up to 120 psig (8 bar)
- Optional no-brass, RoHS-compliant construction (Option “M”)
- Lead-free solution for OEM and industrial equipment manufacturers
- Available in NPT, BSP, and manifold mount configurations
- Dual gauge ports for installation flexibility
- Reversible mounting bracket for front or rear mounting
Specifications
Performance Characteristics
Key Performance Metrics
| Specification | Value |
| Flow Capacity | 14 scfm (396 NL/min) |
| Exhaust Capacity | 7 scfm (199 NL/min) |
| Repeatability | ±0.3% of span |
| Sensitivity | 1/4 in. water column (6.4 mm) |
| Supply Pressure Sensitivity | 0.5 psig change per 100 psig supply change |
| Maximum Supply Pressure | 150 psig (10 bar) |
| Air Consumption | 6.0 scfh maximum |
| Temperature Range | 0°F to 160°F (-18°C to 71°C) |
| Weight | 0.35 lb (0.16 kg) |
These performance characteristics provide exceptional pressure stability, precise low-pressure control, and reliable operation in compact pneumatic systems. The force-balanced pilot design minimizes supply pressure effects while maintaining consistent output pressure under varying demand conditions.

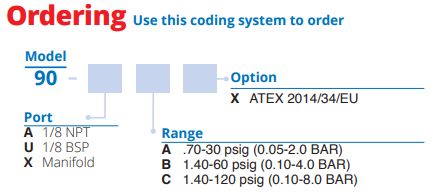

How to Select the Right Configuration
Selecting the correct Type 90 configuration depends on your application requirements:
- Match the output pressure range to your required operating pressure
- Verify flow requirements against the regulator’s 14 SCFM capacity
- Select NPT, BSP, or manifold mounting based on installation requirements
- Consider the optional no-brass construction for RoHS-compliant applications
- Evaluate mounting requirements using the reversible bracket option
- Review environmental and certification requirements, including ATEX options
For additional guidance:
Applications
The Type 90 Miniature Precision Air Pressure Regulator is ideal for applications requiring highly accurate pressure control in a compact footprint. Its combination of precision regulation, repeatability, and space-saving design makes it well suited for instrumentation, laboratory, and OEM pneumatic systems.
Applications include:
- Analytical instrumentation
- Laboratory equipment
- Calibration systems
- Test and measurement equipment
- Air gauging systems
- Medical devices
- OEM pneumatic equipment
- Semiconductor manufacturing equipment
- Pneumatic control panels
- Precision automation systems
- Packaging machinery
- Process instrumentation
Explore more applications: Industries We Serve
Resources
FAQs
What makes the Type 90 a precision regulator?
The Type 90 utilizes a force-balanced pilot control system that maintains output pressure within 0.05 psig while delivering repeatability of ±0.3% of span. This design provides exceptional pressure stability and accuracy in a miniature package.
How much flow can the Type 90 provide?
The Type 90 delivers up to 14 SCFM (396 Nl/min) of flow capacity, providing significantly greater flow performance than many regulators of similar size.
Why choose the Type 90 No-Brass Option for OEM equipment?
The optional no-brass construction (Option “M”) helps OEMs and equipment manufacturers meet RoHS compliance requirements while maintaining the precision regulation, repeatability, and reliability of the standard Type 90 regulator. It is an ideal solution for equipment designers seeking lead-free pneumatic components for industrial, laboratory, medical, and analytical applications.
Can the Type 90 be mounted in different configurations?
Yes. The Type 90 is available with NPT, BSP, and manifold mounting options. Dual gauge ports and an optional reversible mounting bracket provide additional installation flexibility.
What pressure ranges are available?
The regulator is available in three pressure ranges: 0.7–30 psig, 1.4–60 psig, and 1.4–120 psig.
Can the Type 90 be mounted in different configurations?
Yes. The Type 90 is available with NPT, BSP, and manifold mounting options. Dual gauge ports and an optional reversible mounting bracket provide additional installation flexibility.
Is the Type 90 available for RoHS-compliant applications?
Yes. The optional no-brass construction configuration provides a RoHS-compliant solution for applications requiring restricted material content.
