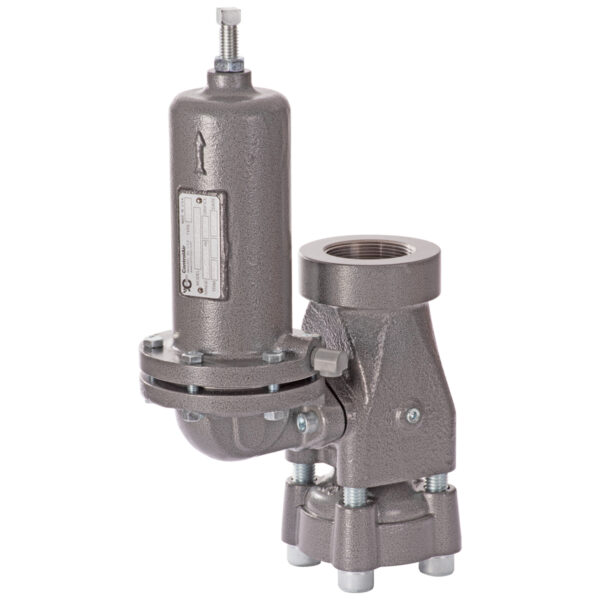

The Type 1230 High Flow Gas Pressure Regulator is a direct-operated pressure reducing regulator designed for natural gas, compressed air, and inert gas applications. Developed for demanding oil and gas service, the Type 1230 provides reliable pressure control across a broad range of outlet pressures and operating conditions.
Built upon the proven design of the Type 1227, the Type 1230 expands application flexibility by offering outlet pressure ranges from 27 psig to 500 psig. This makes it an excellent solution for high-pressure gas systems and multi-stage pressure reduction applications where precise downstream control is required.
Available in 1″ and 2″ NPT body sizes with multiple orifice sizes and seat material options, the Type 1230 can be configured to support a wide variety of flow capacities, media requirements, and operating environments.
Key Features
- Direct-operated pressure reducing regulator
- Designed for natural gas, compressed air, and inert gases
- Available in 1″ and 2″ NPT body sizes
- Outlet pressure ranges from 27 psig to 500 psig
- Multiple orifice sizes for application flexibility
- Trim replacement without removing regulator from service
- Field-reconfigurable orientation for difficult installations
- NACE MR0175 configurations available
- Multiple valve disk material options available
- Assembled and tested in the USA
Performance Characteristics
- Body Sizes: 1″ and 2″ NPT
- Vent Connection: 1/4″ NPT
- Output Pressure Ranges: 27-50 psig, 46-95 psig, 90-150 psig, 150-200 psig, 200-275 psig, and 275-500 psig
- Maximum Body Pressure Rating: 1,500 psig (103 bar)
- Maximum Outlet Pressure: 500 psig (34.5 bar)
- Maximum Outlet Pressure Above Setpoint: 200 psig (13.8 bar)
- Orifice Sizes: 1/8″, 3/16″, 1/4″, 3/8″, and 1/2″
- Flow Coefficient (Cv): Up to 8.18
- Flow Capacities: Up to 113,000 SCFH depending on configuration
- Operating Media: Natural gas, compressed air, and inert gases
- Temperature Range (NBR/CR/PA): -40°F to 180°F (-40°C to 82°C)
- Temperature Range (FKM/CTFE): 0°F to 180°F (-18°C to 82°C)
- Weight: 25 lbs (1″ body) and 30 lbs (2″ body)
Important: The Type 1230 does not include internal relief. If inlet pressure can exceed diaphragm casing pressure ratings, an external pressure relief device should be installed.

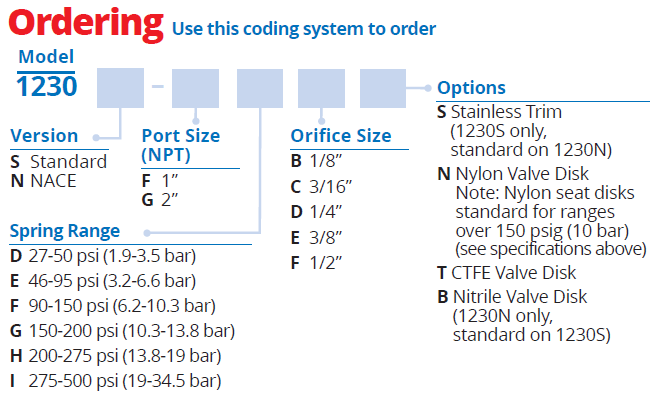

How to Select the Right Configuration
Selecting the correct Type 1230 depends on required outlet pressure, flow demand, gas type, and installation requirements.
- Select the 27-50 psig range for lower pressure reduction applications
- Select the 46-95 psig or 90-150 psig ranges for intermediate pressure control
- Select the 150-200 psig, 200-275 psig, or 275-500 psig ranges for high-pressure applications
- Choose 1″ NPT body size for compact installations and moderate flow requirements
- Choose 2″ NPT body size for maximum flow capacity
- Select NACE construction for sour gas and corrosive environments
- Choose nylon valve disks for higher pressure applications above 150 psig
- Select CTFE valve disks when media compatibility requires enhanced chemical resistance
- Choose stainless steel trim for increased corrosion resistance
For additional guidance:
Applications
The Type 1230 is designed for high-pressure gas regulation applications requiring reliable performance and high flow capability.
- Natural gas pressure reduction stations
- Oil and gas production facilities
- Gas transmission systems
- Multi-stage pressure reduction systems
- Gas compressor stations
- Industrial gas distribution
- Pipeline pressure control
- Utility gas systems
- Process gas applications
- Energy infrastructure projects
Technical Resources
- Product Data Sheet
- Pressure Regulators for Oil & Natural Gas Catalog
- Installation Instructions
- CAD Models
FAQs
What is the Type 1230 used for?
The Type 1230 is a high-pressure gas regulator designed for natural gas, compressed air, and inert gas applications requiring outlet pressures up to 500 psig.
What outlet pressure ranges are available?
The Type 1230 is available in ranges from 27-50 psig up to 275-500 psig.
Does the Type 1230 include internal relief?
No. The Type 1230 does not include internal relief and may require an external relief device depending on system design.
Is NACE construction available?
Yes. The Type 1230 is available with NACE MR0175 construction for demanding oil and gas applications.
What body sizes are available?
The Type 1230 is available in 1″ NPT and 2″ NPT body sizes.
