Description

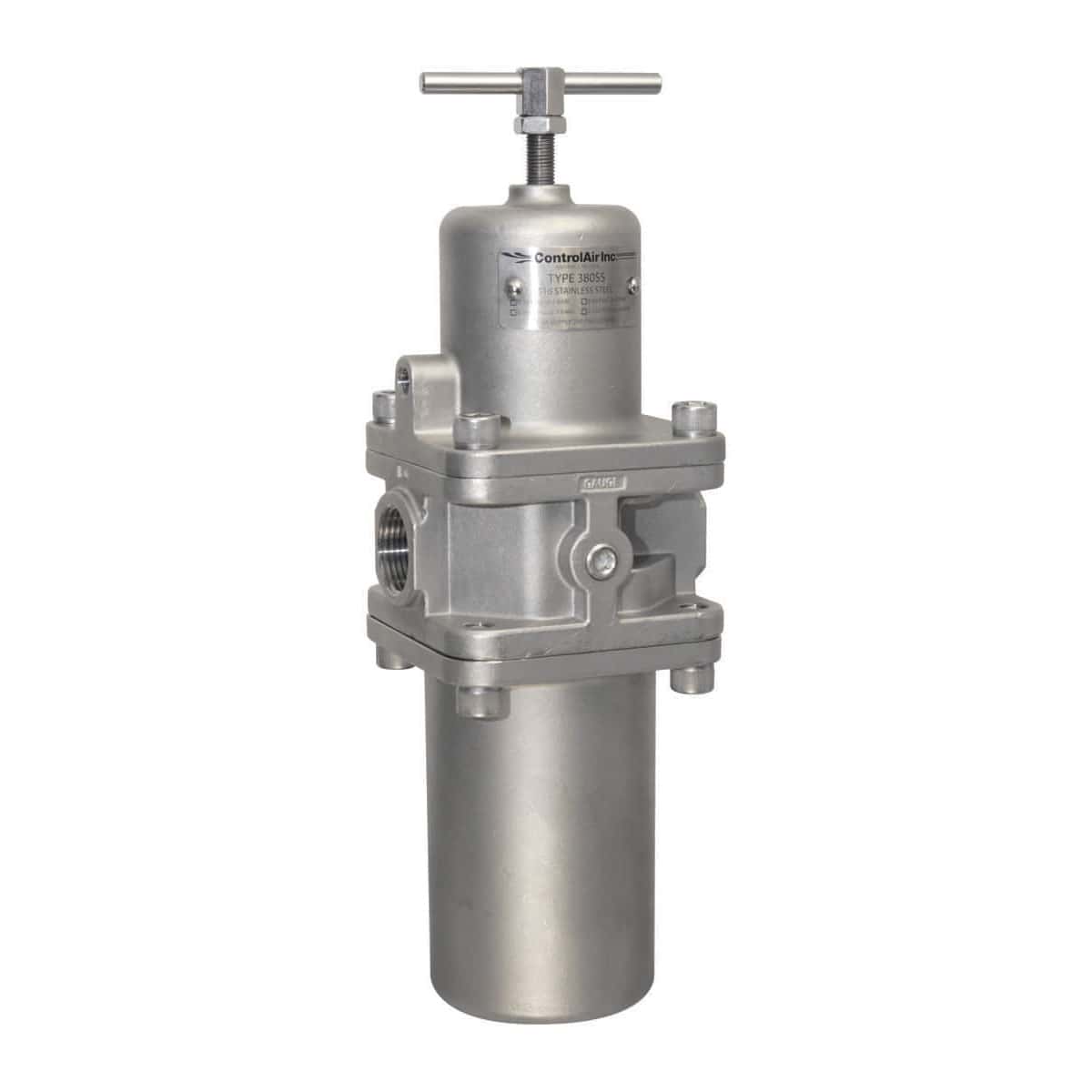

The Type 380 stainless steel filter regulator is designed for demanding applications that require stable accurate pressure regulation and high flow capacity. The Type 380 air filter regulator (AFR) is made from corrosion resistant 316L SS which makes this adaptable to offshore and other harsh environments. Large porting ensures stable and repeatable output pressures, even during wide supply pressure variations from large volume valve actuators. Oversized valving helps the units achieve high flow rates with minimal pressure drop. The Type 380 has 5 micron filter options in addition to the standard 40 micron filter. The Type 380 pressure regulator is available with ATEX and EAC TR-CU certifications.

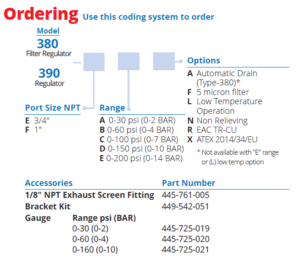

Options and feature (see specifications tab for full list):
- 3/4” and 1” ports
- Autodrain option
- Low Temperature option: down to -62°F (-52 °C)
- High Flow Capacity: up to 400 scfm
