Description
Overview

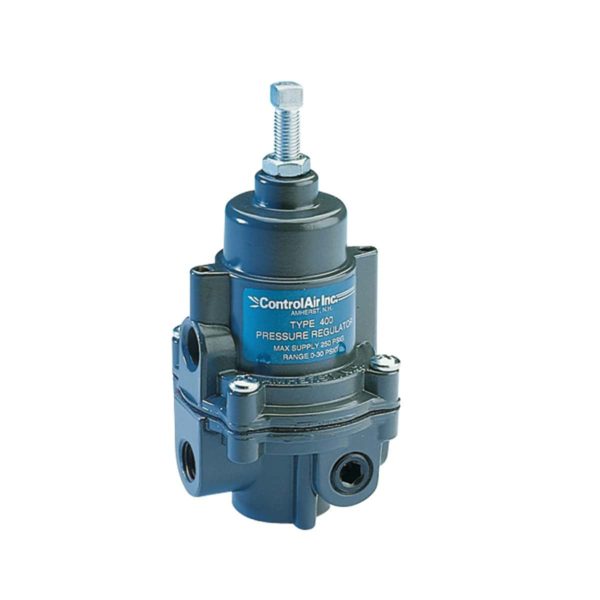

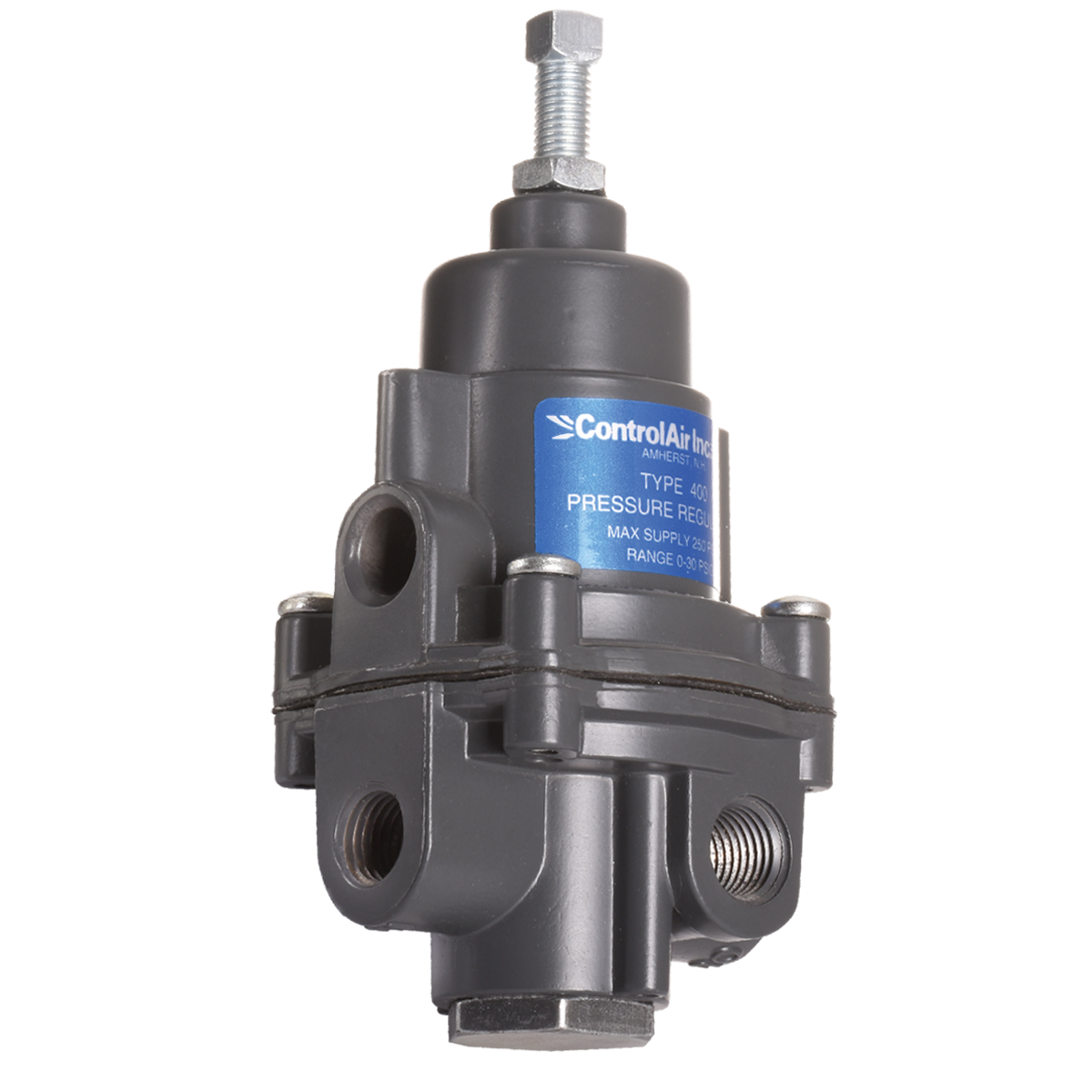

The Type 400 General Service Pressure Regulator is an economical, all-purpose air regulator designed to provide reliable performance under variable operating conditions. It delivers stable downstream pressure for industrial process control, pneumatic equipment, and high-volume OEM applications.
An aspirator design helps maintain the selected outlet pressure and minimize droop as flow demand increases. Durable die-cast aluminum housings are treated with a corrosion-resistant finish and epoxy paint to support dependable operation in harsh industrial environments.
Each Type 400 regulator is pressure, leak, and flow tested at the factory before shipment. With four output pressure ranges, pipe or panel mounting, and multiple options for temperature, adjustment, venting, elastomers, and hazardous-area applications, the Type 400 can be configured for a wide range of general industrial air regulation requirements.
Key Features
- Reliable general-purpose air pressure regulation
- Stable output under changing operating conditions
- Low droop at higher flow levels
- Aspirator design helps maintain the selected pressure
- Flow capacity up to 20 scfm (570 Nl/min)
- Four available output pressure ranges
- Maximum supply pressure of 250 psig (17 bar)
- Self-relieving operation standard
- Low air consumption
- Corrosion-resistant die-cast aluminum housing
- Pipe or panel mounting
- Compact and lightweight construction
- Factory pressure, leak, and flow tested
- Economical choice for high-volume OEM applications
- Low-temperature, non-relieving, tapped exhaust, and ATEX options available
Performance Characteristics
- Flow Capacity: 20 scfm (570 Nl/min) at 100 psig (6.8 bar) supply and 20 psig (1.4 bar) outlet
- Exhaust Capacity: 0.1 scfm (2.8 Nl/min) with downstream pressure 5 psig (0.3 bar) above setpoint
- Sensitivity: 1 inch (2.5 cm) of water
- Supply Pressure Effect: Less than 0.2 psig (0.01 bar) for a 25 psig (1.7 bar) supply pressure change
- Maximum Supply Pressure: 250 psig (17 bar)
- Air Consumption: Less than 6 scfh (170 Nl/min)
- Output Pressure Ranges: 0-10 psig, 0-30 psig, 0-60 psig, and 0-120 psig
- Port Size: 1/4″ NPT
- Mounting: Pipe or panel
- Standard Temperature Range: 0°F to 160°F (-18°C to 71°C)
- Low-Temperature Option: -40°F to 125°F (-40°C to 81°C)
- Body Material: Die-cast aluminum alloy
- Diaphragm Material: Nitrile elastomer and nylon fabric
- Trim Materials: Brass, zinc-plated steel, and acetal
- Weight: 0.84 lb (0.38 kg)
The Type 400 combines stable regulation, low supply-pressure sensitivity, and low droop to support consistent pneumatic performance as operating conditions change.
How to Select the Right Configuration
Selecting the correct Type 400 configuration depends on the required outlet pressure, environmental conditions, adjustment method, venting requirements, and downstream system design.
- Select the 0-10 psig range for low-pressure pneumatic control applications.
- Select the 0-30 psig range for instrumentation and low-pressure process control.
- Select the 0-60 psig range for general industrial pneumatic equipment.
- Select the 0-120 psig range for higher-pressure air regulation requirements.
- Choose the low-temperature option for ambient temperatures down to -40°F (-40°C).
- Choose the knob option when convenient hand adjustment is preferred.
- Select the non-relieving option for constant-flow systems or applications with separate downstream pressure relief.
- Select the tapped exhaust option when captured exhaust must be routed through a 1/4″ NPT connection.
- Choose the tamperproof cover to discourage casual adjustment of the outlet pressure.
- Select the stainless steel adjustment screw for increased corrosion resistance.
- Choose Viton elastomers when supply-air contaminants may damage standard Buna-N components.
- Select the ATEX option when the installation requires ATEX 2014/34/EU compliance.
- Add the side-mounting bracket when the regulator must be secured to a panel or supporting surface.
For additional guidance:
Applications
The Type 400 is designed for general industrial applications that require economical and reliable compressed-air pressure regulation.
- Industrial process control systems
- General pneumatic equipment
- OEM machinery and equipment packages
- Control panels
- Pneumatic actuators
- Valve control systems
- Air-operated tools and equipment
- Packaging and assembly machinery
- Material handling equipment
- Plant air distribution systems
- Test and production equipment
Explore more applications:
Models & Configurations
Standard Models
- 400-BD: 1/4″ NPT, 0-10 psig (0-0.7 bar)
- 400-BA: 1/4″ NPT, 0-30 psig (0-2 bar)
- 400-BB: 1/4″ NPT, 0-60 psig (0-4 bar)
- 400-BC: 1/4″ NPT, 0-120 psig (0-8 bar)
Available Options
Add the appropriate option letter to the end of the model number.
- J = Low Temperature: -40°F to 125°F (-40°C to 81°C)
- K = Knob: Replaces the standard square-head adjustment screw
- N = Non-Relieving: For constant-flow systems or applications with downstream pressure relief
- E = Tapped Exhaust: Provides a 1/4″ NPT connection for captured exhaust
- T = Tamperproof Cover: Helps prevent casual adjustment of the outlet pressure
- S = Stainless Steel Adjustment Screw: Hex-head adjustment screw for increased corrosion resistance
- V = Viton Elastomers: For supply-air conditions that may damage standard Buna-N pintle and diaphragm materials
- X = ATEX: 2014/34/EU
Accessories
- B = Mounting Bracket: Zinc-plated steel side-mounting bracket, P/N 446-707-028
- 0-15 psi Pressure Gauge: P/N 446-725-003
- 0-30 psi Pressure Gauge: P/N 446-725-004
- 0-60 psi Pressure Gauge: P/N 446-725-001
- 0-160 psi Pressure Gauge: P/N 446-725-002
Technical Resources
- Product Data Sheet
- Installation Instructions
- Product Configurator
- 3D CAD Models
- Product Certifications
- Engineering Support Resources
FAQs
What is the Type 400 pressure regulator used for?
The Type 400 is used for economical, general-purpose compressed-air pressure regulation in industrial process control, pneumatic equipment, control panels, and high-volume OEM applications.
What output pressure ranges are available?
The Type 400 is available with output ranges of 0-10 psig, 0-30 psig, 0-60 psig, and 0-120 psig.
What is the maximum supply pressure?
The maximum supply pressure for the Type 400 is 250 psig (17 bar).
How much flow can the Type 400 provide?
The Type 400 has a rated flow capacity of 20 scfm (570 Nl/min) with 100 psig supply pressure and a 20 psig outlet setting.
Is a non-relieving version available?
Yes. A non-relieving option is available for constant-flow systems or applications that use separate downstream pressure relief.
Can the Type 400 be used in low-temperature environments?
Yes. The optional low-temperature configuration extends the operating temperature range down to -40°F (-40°C).
Can exhaust air be captured?
Yes. The tapped exhaust option provides a 1/4″ NPT connection that allows exhaust air to be captured and routed away from the regulator.
