Description

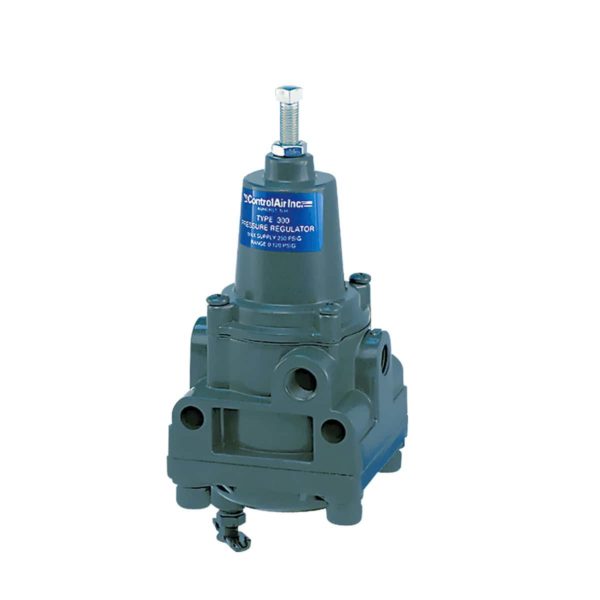

The Type 300 Air Filter Regulator is designed to provide clean, accurate air pressure to instruments, valves, and other automatic control equipment. This filter regulator has been proven to provide accurate operating characteristics under variable conditions. Durable materials and a standard epoxy paint finish provide long lasting corrosion resistance in harsh industrial environments. The Type 300 AFR is a quality unit that is ideal as an economical alternative for control of process applications. For NACE MR-01-75 complaint option, see our Type 310 air filter regulator.
Options and features (see specifications tab for full list):
- 1/4” ports
- ATEX certifications
- Low Temperature option: down to -62°F (-52 °C)
- 5 Micron filter and tamper proof options
Type | Model Number | Port Size (NPT) | Output Range |
---|
Filter Regulator | 300-BD | 1/4″ | 0-10 | 0-0.7 |
Filter Regulator | 300-BA | 1/4″ | 0-30 | 0-2.1 |
Filter Regulator | 300-BB | 1/4″ | 0-60 | 0-4.1 |
Filter Regulator | 300-BC | 1/4″ | 0-120 | 0-8.3 |
NACE Filter Regulator | 310-BA | 1/4″ | 0-30 | 0-2.1 |
NACE Filter Regulator | 310-BB | 1/4″ | 0-60 | 0-4.1 |
NACE Filter Regulator | 310-BC | 1/4″ | 0-100 | 0-6.9 |
Filter Only | 320-BX | 1/4″ | – | – |
OPTIONS – Add proper letter onto end of model number:
**E – Tapped Exhaust: allows captured exhaust. 1/4″ NPT port.
F – 5 Micron Filter: standard 40 micron filter is replaced with 5 micron filter for more complete air filtration.
***J – Low Temperature: temperature range -62° to 194° F (-52° C to 90° C).
*K – Knob: to replace square head adjust screw.
N – Non-Relieving: for constant flow or downstream pressure relief applications.
**P – Panel Mount: option allows panel mounting. See dimensional drawing.
S – Stainless Steel Adjust Screw: hexhead stainless steel adjust screw for maximum corrosion resistance.
*T – Tamperproof Cover: prevents casual adjustment of output pressure.
**V – Viton® Elastomers: used where elements in the supply air are particularly destructive to standard Buna-N pintle and diaphragm material.
X – ATEX 2014/34/EU
* Options for Type 300 only.
** Standard features for Type 310 NACE.
*** Low Temperature Option not available for Type 310 NACE
ACCESSORIES
Mounting Bracket: – P/N: 446-707-028
Pressure Gauge – 1/4″ NPT back-mount, 2″ face
0-15 psi P/N: 446-725-003
0-30 psi P/N: 446-725-004
0-60 psi P/N: 446-725-001
0-160 psi P/N: 446-725-002
