Description
Overview

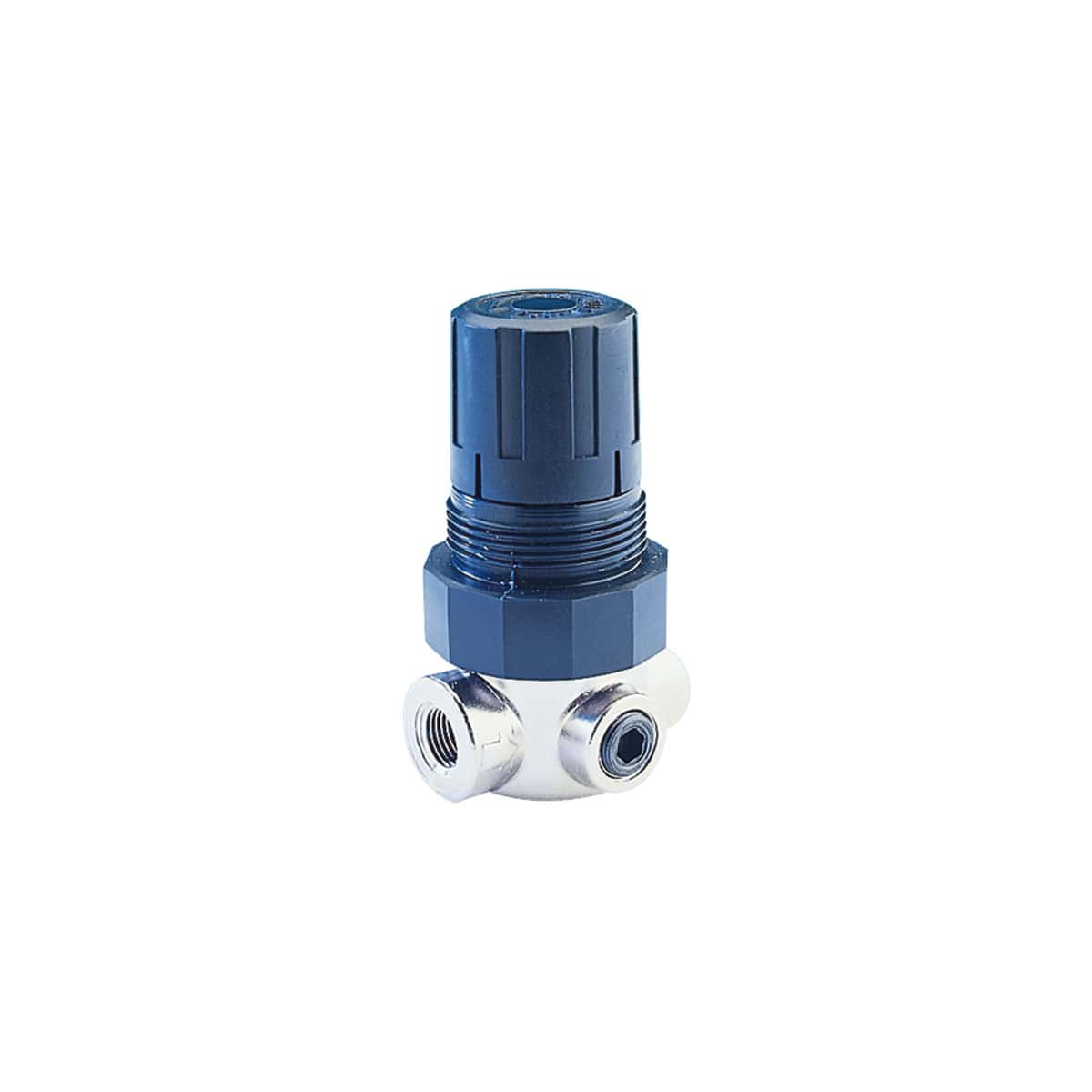

The Type 860 Miniature Water Pressure Regulator is a compact, economical regulator designed to provide accurate downstream pressure control for industrial water applications. Developed specifically for OEM equipment and space-constrained installations, the Type 860 combines reliable performance with a lightweight design and flexible connection options.
Its highly sensitive diaphragm-operated design helps eliminate the sticking problems that can occur with piston-style regulators. A molded rubber supply valve supports accurate regulation and helps minimize leakage, providing consistent pressure control under changing operating conditions.
Available with 1/8″ or 1/4″ NPT and BSP connections, the Type 860 provides flow capacity up to 2.2 gal/min and is available in 0-60 psig and 0-100 psig output pressure ranges. The Type 860 is non-relieving as standard, making it suitable for water systems and constant-flow applications where downstream pressure relief is provided separately.
Key Features
- Compact miniature design for space-constrained installations
- Designed for industrial water pressure regulation
- Ideal for OEM equipment and high-volume applications
- Highly sensitive diaphragm-operated design
- Molded rubber supply valve supports accurate regulation and helps prevent leakage
- Easy and accurate pressure adjustment
- Non-relieving operation standard
- Available with 1/8″ and 1/4″ NPT or BSP porting
- Two available output pressure ranges
- Water flow capacity up to 2.2 gal/min
- Maximum supply pressure of 150 psig (10 bar)
- Electroless nickel-plated zinc body
- Compact and lightweight at 4.0 oz. (113 g)
- Optional mounting bracket and panel nut
- Economical choice for industrial water control
Performance Characteristics
- Operating Media: Compressed air or water
- Water Flow Capacity: 2.2 gal/min
- Relief Capacity: Not applicable; non-relieving design
- Maximum Supply Pressure: 150 psig (10 bar)
- Air Consumption: Not applicable
- Operating Temperature: 0°F to 150°F (-18°C to 60°C)
- Inlet and Outlet Porting: 1/8″ or 1/4″ NPT/BSP
- Gauge Ports: Two 1/8″ NPT/BSP ports
- Output Pressure Ranges: 0-60 psig and 0-100 psig
- Body Material: Electroless nickel-plated zinc
- Bonnet and Valve Seat Material: Acetal
- Diaphragm and O-Ring Materials: Nitrile and nylon
- Valve Plug Material: Brass and nitrile
- Weight: 4.0 oz. (113 g)
The Type 860 combines compact size, stable pressure control, and durable wetted materials to support dependable industrial water regulation in OEM machinery and process equipment.
How to Select the Right Configuration
Selecting the proper Type 860 configuration depends on connection type, required outlet pressure, flow demand, mounting method, and media compatibility.
- Select 1/8″ NPT porting for compact North American water-control installations.
- Select 1/4″ NPT porting when a larger connection is preferred.
- Select 1/8″ BSP or 1/4″ BSP porting for systems using British Standard Pipe connections.
- Choose the 0-60 psig range for general industrial water regulation.
- Choose the 0-100 psig range for applications requiring higher downstream pressure.
- Confirm that the 2.2 gal/min flow capacity meets the application requirement.
- Use the Type 860 where non-relieving operation is appropriate.
- Provide separate downstream pressure relief when required by the system design.
- Add the mounting bracket for side mounting to a machine frame or support surface.
- Add the panel nut when the regulator will be mounted through a control panel.
- Use the Type 870 instead when the application requires a regulator specifically designed for potable water.
For additional guidance:
Applications
The Type 860 is designed for compact industrial water applications requiring economical and dependable downstream pressure regulation.
- OEM water-control equipment
- Industrial process water systems
- Cooling and circulation systems
- Water-fed machinery
- Packaging and dispensing equipment
- Washdown and rinsing systems
- Laboratory and test equipment
- Compact control panels
- Water treatment equipment
- Industrial automation systems
- General non-potable water pressure control
Explore more applications:
Models & Configurations
Type 860 Ordering Structure
860 – [Port Size] [Output Range] N
Port Sizes
- A = 1/8″ NPT
- B = 1/4″ NPT
- C = 1/8″ BSP
- D = 1/4″ BSP
Output Pressure Ranges
- C = 0-60 psig (0-4.1 bar)
- D = 0-100 psig (0-6.9 bar)
Standard Configuration
- N = Non-Relieving: Standard on the Type 860 for water service and applications with separate downstream pressure relief
Accessories
- Mounting Bracket: P/N 446-707-100
- Panel Nut: P/N 442-734-040
- 0-15 psi Gauge: P/N 446-725-005
- 0-30 psi Gauge: P/N 446-725-006
- 0-60 psi Gauge: P/N 446-725-007
- 0-160 psi Gauge: P/N 446-725-008
Technical Resources
- Product Data Sheet
- Installation Instructions
- Product Configurator
- 3D CAD Models
- Engineering Support Resources
FAQs
What is the Type 860 miniature water pressure regulator used for?
The Type 860 is used to regulate water pressure in compact OEM equipment, industrial process systems, cooling systems, dispensing equipment, and other space-constrained water-control applications.
What media can the Type 860 regulate?
The Type 860 is designed for compressed air or industrial water service. For potable water applications, use the Type 870 Miniature Potable Water Pressure Regulator.
What port sizes are available?
The Type 860 is available with 1/8″ NPT, 1/4″ NPT, 1/8″ BSP, and 1/4″ BSP inlet and outlet connections.
What output pressure ranges are available?
The Type 860 is available in 0-60 psig and 0-100 psig output pressure ranges.
What is the maximum supply pressure?
The maximum supply pressure for the Type 860 is 150 psig (10 bar).
What is the water flow capacity?
The Type 860 provides water flow capacity up to 2.2 gal/min.
Is the Type 860 a relieving regulator?
No. The Type 860 is non-relieving as standard and should be used with separate downstream pressure relief when required by the system design.
Can the Type 860 be panel mounted?
Yes. An optional panel nut is available for panel mounting, and an optional bracket is available for side mounting.
