Description
Overview

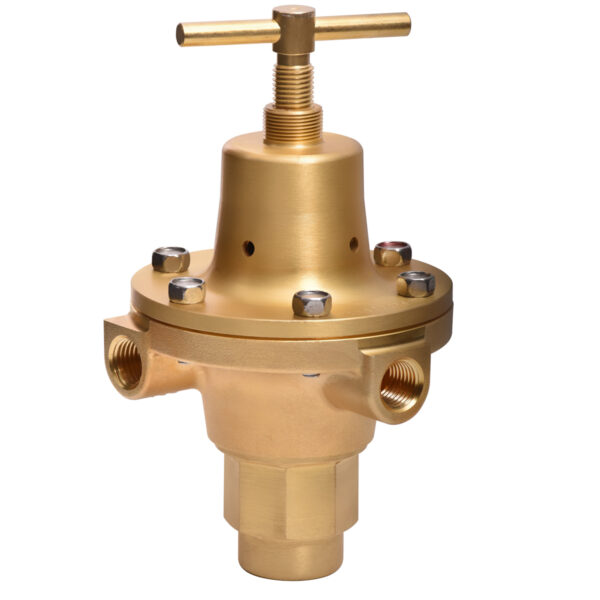

The Type 3500 High Pressure Regulator is a dependable first-cut pressure regulator designed to reduce inlet pressures as high as 6000 psig (413 bar) down to usable working pressures ranging from 0 to 225 psig. Constructed from durable brass materials, the Type 3500 provides an economical solution for high-pressure gas regulation in industrial, OEM, and process control applications.
Available in five spring ranges, the Type 3500 delivers stable pressure control while accommodating a wide variety of operating requirements. Its non-relieving design, replaceable valve seat, and multiple outlet ports provide installation flexibility and long service life in demanding environments.
The Type 3500 is commonly used as a pilot supply regulator where high-pressure operating valves require stable gas pressure for pilot operation. Its compact design and high-pressure capability make it ideal for industrial gas systems and process control applications utilizing non-corrosive gases.
Key Features
- Brass construction for non-corrosive gas service
- Maximum inlet pressure up to 6000 psig (413 bar)
- Five available output pressure ranges
- Three outlet ports for installation flexibility
- Socket head or tee handle adjustment options
- Replaceable multi-seat rotating valve block
- Up to four replacement sealing surfaces
- Stable first-stage pressure reduction
- Compact, rugged construction
- Suitable for pilot supply applications
- Non-relieving design
- Reliable long-term operation in industrial environments
Performance Characteristics
- Maximum Supply Pressure: 6000 psig (413 bar)
- Output Pressure Ranges: 0-30 psig, 0-60 psig, 0-125 psig, 0-150 psig, and 0-225 psig
- Inlet Port: 1/4″ NPT
- Outlet Ports: Three 1/4″ NPT ports
- Vent Configuration: Four 3/16″ vent holes
- Flow Coefficient (Cv): 0.13
- Temperature Range: -70°F to 225°F (-57°C to 107°C)
- Weight: 3.25 lbs (1.5 kg)
- Body Material: Brass
- Diaphragm Material: 302 Stainless Steel
- Seal Materials: Nitrile and TFE
- Seat Material: Nylon
- Supply Nozzle: 416 Stainless Steel
The Type 3500 provides dependable pressure reduction from high-pressure gas sources while maintaining stable downstream pressure for instrumentation and pilot-operated systems.
How to Select the Right Configuration
Selecting the correct Type 3500 configuration depends on required outlet pressure, gas type, and application requirements.
- Select the 0-30 psig range for low-pressure pilot systems
- Select the 0-60 psig range for general instrumentation service
- Select the 0-125 psig range for medium-pressure control systems
- Select the 0-150 psig range for higher pressure pilot applications
- Select the 0-225 psig range when maximum outlet pressure capability is required
- Choose socket head adjustment for tamper-resistant installations
- Choose tee handle adjustment for convenient field adjustment
- Use the Type 3500 for non-corrosive gas applications
- Take advantage of the three outlet ports for simplified system plumbing
- Consider the replaceable seat design to reduce maintenance costs over the regulator lifecycle
For additional guidance:
Applications
The Type 3500 High Pressure Regulator is designed for applications requiring reliable first-stage pressure reduction from high-pressure gas sources.
- Pilot supply systems
- Industrial gas distribution systems
- Process control systems
- Instrumentation gas supply
- Pressure reducing stations
- OEM equipment packages
- Natural gas control systems
- Compressed gas applications
- Industrial automation systems
- High-pressure pneumatic systems
Explore more applications: Industries We Serve
Models & Configurations
Type 3500 Ordering Structure
3500 – [Adjustment] [Pressure Range]
Adjustment Options
- B = Socket Head Adjustment
- C = Tee Handle Adjustment
Pressure Ranges
- A = 0-30 psig (0-2.0 bar)
- B = 0-60 psig (0-4.0 bar)
- C = 0-125 psig (0-8.6 bar)
- D = 0-150 psig (0-10.3 bar)
- E = 0-225 psig (0-15.5 bar)
Standard Connections
- 1/4″ NPT Inlet
- Three 1/4″ NPT Outlet Ports
- Four 3/16″ Vent Holes
Technical Resources
- Product Data Sheet
- Installation Instructions
- CAD Drawings
- Dimensional Drawings
- Flow Capacity Data
- Product Certifications
- Ordering Guide
Technical Resources
FAQs
What is the maximum inlet pressure for the Type 3500?
The Type 3500 can regulate inlet pressures up to 6000 psig (413 bar).
What gases is the Type 3500 designed for?
The Type 3500 is designed for non-corrosive gas applications.
What output pressure ranges are available?
The Type 3500 is available in five pressure ranges: 0-30 psig, 0-60 psig, 0-125 psig, 0-150 psig, and 0-225 psig.
Is the Type 3500 a relieving regulator?
No. The Type 3500 utilizes a non-relieving design.
Can the valve seat be replaced?
Yes. The Type 3500 features a replaceable multi-seat rotating valve block that provides up to four replacement sealing surfaces, extending service life and reducing maintenance costs.
