Description
Precise pneumatic control by use of an electrical signal

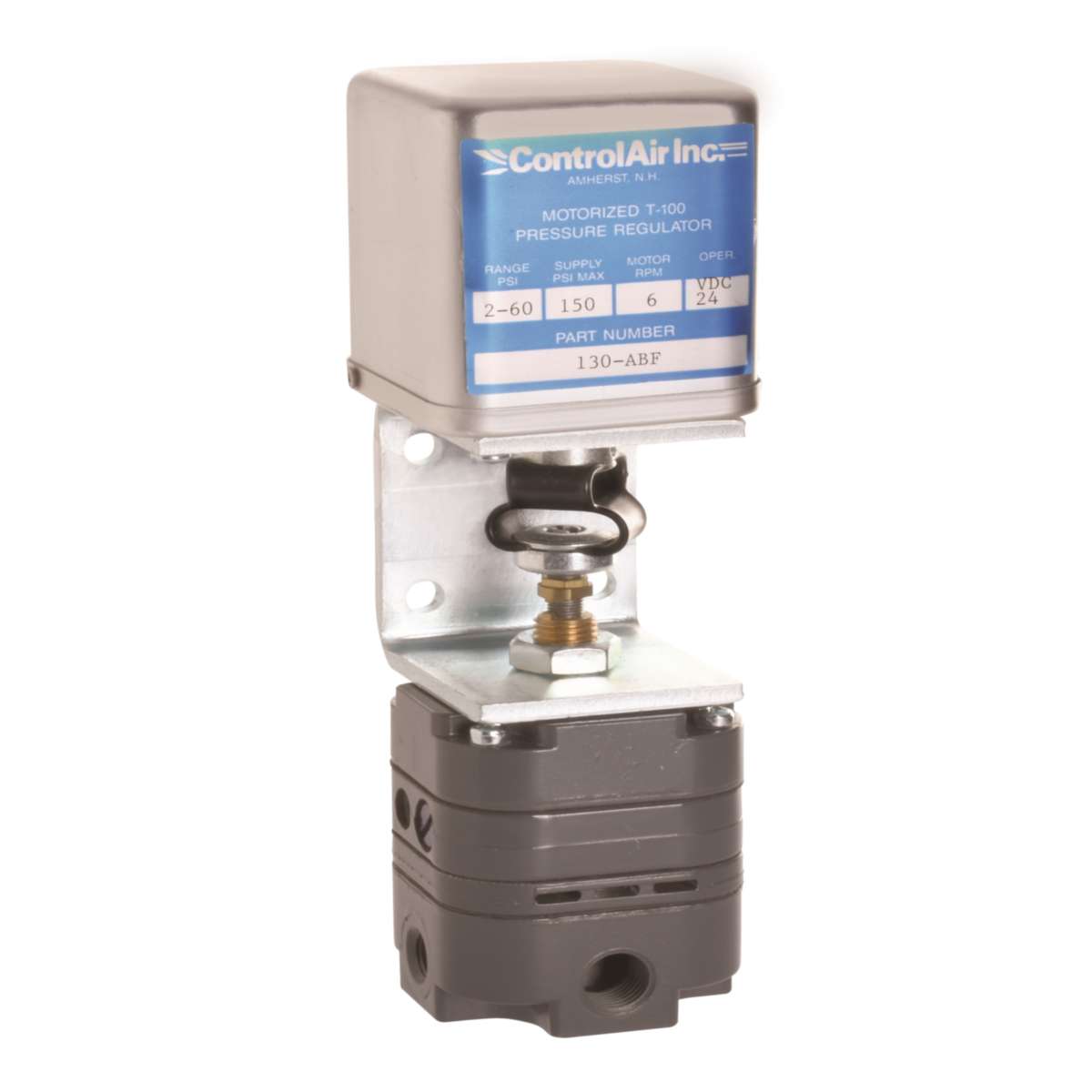

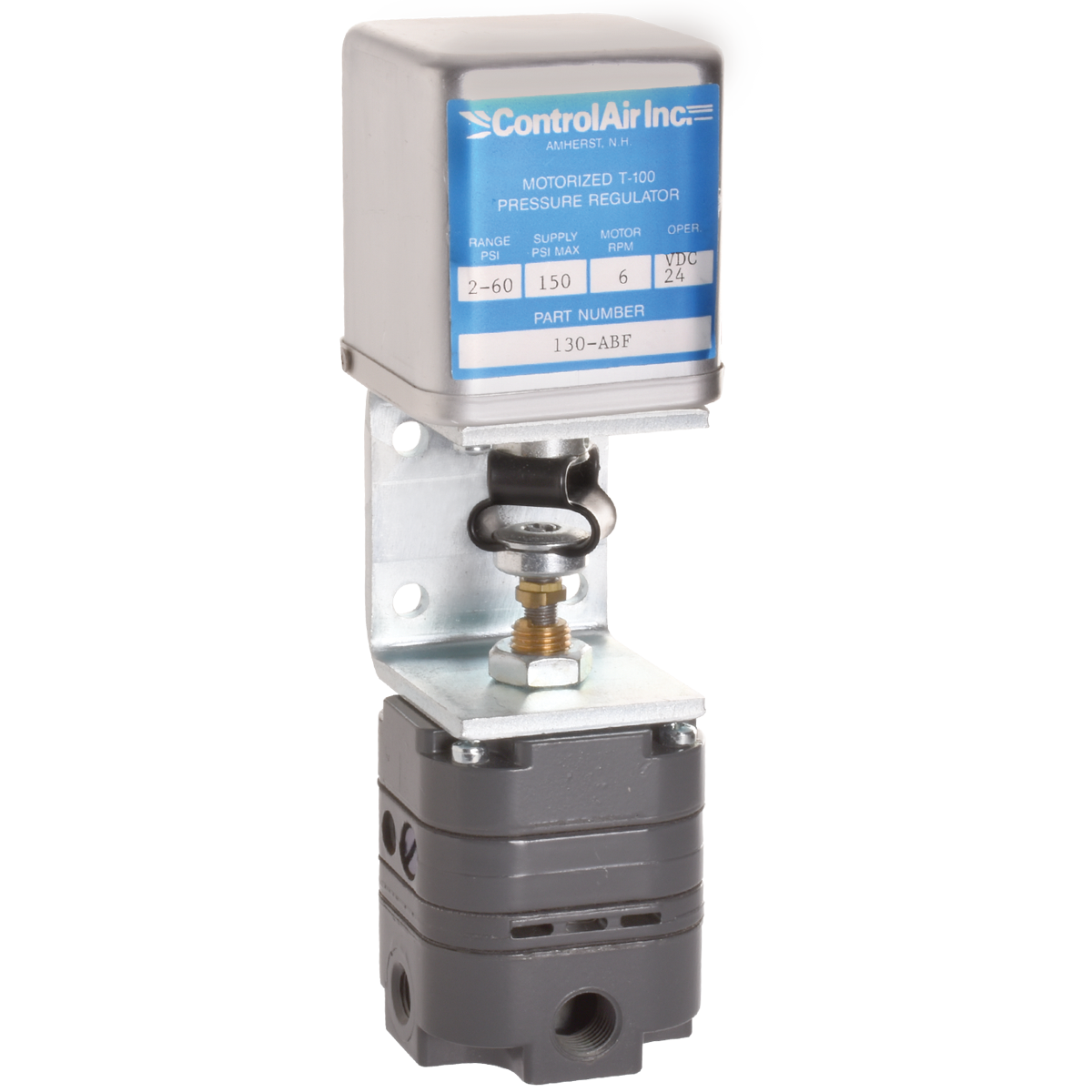

The ControlAir Type 100M Motorized Air Pressure Regulator is designed to provide precise pneumatic control by use of an electrical signal. This highly accurate device is well suited for pneumatic control of a system from a remote location. The application of a DC voltage will generate a pressure change. Applying a positive signal to the black lead and a negative signal to the red lead will generate a pressure increase. Reversing this polarity will generate a pressure decrease. The motor is coupled to ControlAir’s Type 100, which is a high precision, multi-stage air pressure regulator with low power requirements.
Features:
- Maintains Setting – maintains pressure setting in the event of a power failure.
- Low Power Consumption
- No Pre-regulation of Supply Pressure Necessary
- Mountable at Any Angle
- Adjustable Mechanical Stop Limits Maximum Output Pressure
- Flexible Range Options – a variety of motor voltages, pressure change rates, pressure output ranges and port sizes are available
- Compact Size
