Description
Overview

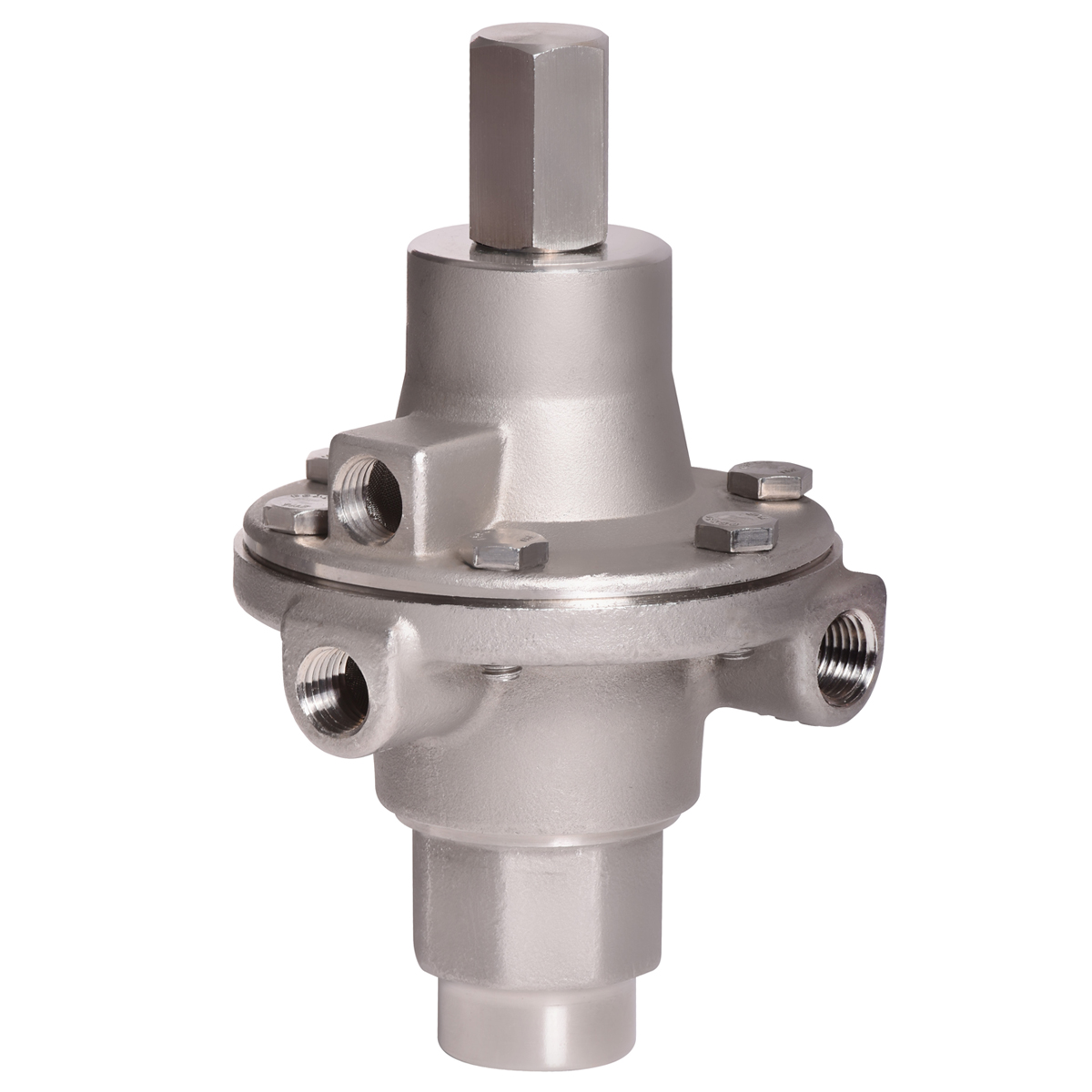

The Type 3600 High Pressure Regulator is a stainless steel first-cut pressure regulator designed to reduce inlet pressures up to 6000 psig (413 bar) to stable working pressures ranging from 0 to 225 psig (15.5 bar). Built from corrosion-resistant 316 stainless steel, the Type 3600 provides dependable pressure control in demanding industrial and oil & gas applications.
Designed to meet NACE MR0175 requirements for sour gas service, the Type 3600 is commonly used as a pilot supply regulator where high-pressure operating valves must be controlled by gas regulator pilots. Its non-relieving design, replaceable valve seat, and multiple output port configuration provide flexibility and long service life in challenging operating environments.
With five available pressure ranges, multiple adjustment options, and a compact design, the Type 3600 delivers reliable pressure reduction while maintaining excellent durability and performance.
Key Features
- 316 stainless steel construction
- Meets NACE MR0175 requirements for sour gas service
- Maximum inlet pressure up to 6000 psig (413 bar)
- Five available output pressure ranges
- Three outlet ports for installation flexibility
- Socket head or tee handle adjustment options
- Replaceable multi-seat rotating valve block
- Up to four replacement sealing surfaces
- Non-relieving design
- Compact, durable construction
- Suitable for pilot supply applications
- Corrosion-resistant materials for harsh environments
Performance Characteristics
- Maximum Supply Pressure: 6000 psig (413 bar)
- Output Pressure Ranges: 0-30 psig, 0-60 psig, 0-125 psig, 0-150 psig, and 0-225 psig
- Inlet Port: 1/4″ NPT
- Outlet Ports: Three 1/4″ NPT ports
- Vent Connection: 1/4″ NPT
- Flow Coefficient (Cv): 0.13
- Temperature Range: -40°F to 225°F (-40°C to 107°C)
- Weight: 3.25 lbs (1.5 kg)
- Body Material: 316 Stainless Steel
- Diaphragm Material: Monel 400
- Seal Materials: PTFE and Fluorocarbon
- Seat Material: PCTFE
- Supply Nozzle: 316 Stainless Steel
- Range Spring: Stainless Steel
These performance characteristics make the Type 3600 well suited for high-pressure gas regulation, pilot supply systems, and corrosive process environments requiring reliable pressure reduction.

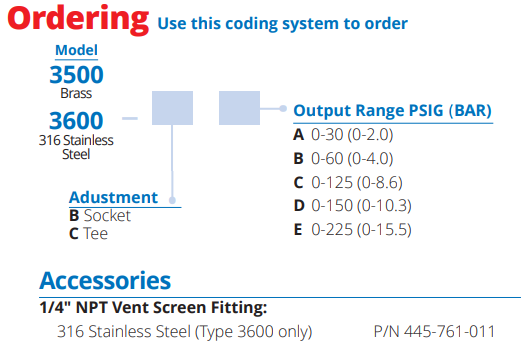

How to Select the Right Configuration
Selecting the correct Type 3600 configuration depends on your operating pressure requirements and installation needs.
- Select the 0-30 psig range for low-pressure pilot applications
- Select the 0-60 psig range for general instrumentation service
- Select the 0-125 psig range for medium-pressure control systems
- Select the 0-150 psig range for higher pressure pilot supply applications
- Select the 0-225 psig range when maximum outlet pressure capability is required
- Choose socket head adjustment for tamper-resistant installations
- Choose tee handle adjustment for field adjustment convenience
- Use the Type 3600 when sour gas compatibility or NACE compliance is required
- Consider available outlet ports for simplified system plumbing
For additional guidance:
Applications
The Type 3600 high pressure regulator is commonly used in applications requiring reliable first-stage pressure reduction from high-pressure gas sources.
- Pilot supply systems
- Oil and gas production facilities
- Sour gas service applications
- Natural gas control systems
- Instrumentation air and gas systems
- High-pressure process control systems
- Gas analyzer systems
- Pressure reducing stations
- Chemical processing facilities
- Industrial gas distribution systems
Explore more applications:
Technical Resources
- Product Data Sheet
- Installation Instructions
- CAD Drawings
- Product Certifications
- Engineering Support Resources
FAQs
What is the maximum inlet pressure for the Type 3600?
The Type 3600 can accept supply pressures up to 6000 psig (413 bar).
Does the Type 3600 meet NACE requirements?
Yes. The Type 3600 is designed to meet NACE MR0175 requirements for sour gas service.
What output pressure ranges are available?
The Type 3600 is available in five output pressure ranges: 0-30 psig, 0-60 psig, 0-125 psig, 0-150 psig, and 0-225 psig.
Is the Type 3600 a relieving regulator?
No. The Type 3600 utilizes a non-relieving design.
What materials are used in the Type 3600 construction?
The Type 3600 features a 316 stainless steel body, Monel 400 diaphragm, PTFE and fluorocarbon seals, PCTFE seat, and stainless steel internal components.
