Description

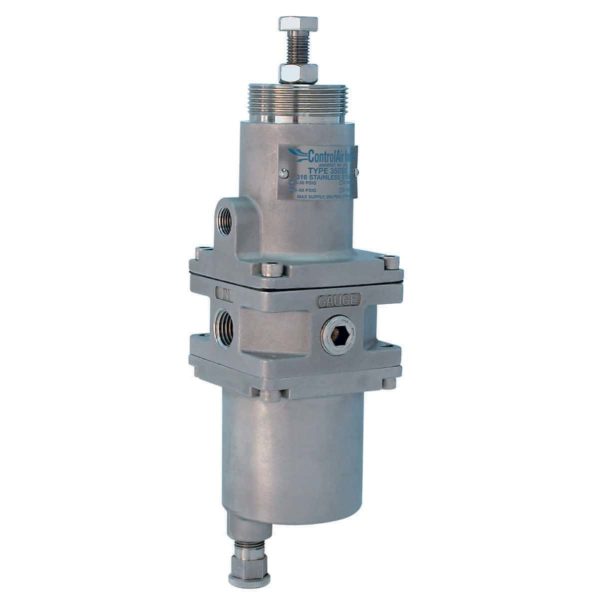

The Type 350 stainless steel air filter regulator (AFR), is designed to stand up to the harshest environments, while providing highly accurate pressure regulation. By using proven 316L stainless steel for the housing and filters, along with the use of fluorocarbon-fiber reinforced diaphragms, the Type 350 is compatible with sour gas and offshore environments. The Type 350 regulators meet NACE MR0175 requirements for sulfide stress cracking. Each of these products are built and tested at our facility to ensure you get the best quality, at a great value with the best service.
Options and feature (see specifications tab for full list):
- 1/4” and 1/2” ports
- Autodrain option
- Low Temperature option: down to -61°F (-52 °C)
- High Flow Capacity: up to 150 scfm
Type 350SS Stainless Steel Filter Regulator
| Model | Part Number | Port Size
(NPT) | Output Range |
| psi | bar |
| 350-SS | 350-BA | 1/4″ | 0-30 | 0-2.1 |
| 350-SS | 350-BB | 1/4″ | 0-60 | 0-4.1 |
| 350-SS | 350-BC | 1/4″ | 0-100 | 0-6.9 |
| 350-SS | 350-BD | 1/4″ | 0-150 | 0-10.3 |
| 350-SS | 350-DA | 1/2″ | 0-30 | 0-2.1 |
| 350-SS | 350-DB | 1/2″ | 0-60 | 0-4.1 |
| 350-SS | 350-DC | 1/2″ | 0-100 | 0-6.9 |
| 350-SS | 350-DD | 1/2″ | 0-150 | 0-10.3 |
Type 360SS Stainless Steel Regulator
| Model | Part Number | Port Size
(NPT) | Output Range |
| psi | bar |
| 360-SS | 360-BA | 1/4″ | 0-30 | 0-2.1 |
| 360-SS | 360-BB | 1/4″ | 0-60 | 0-4.1 |
| 360-SS | 360-BC | 1/4″ | 0-100 | 0-6.9 |
| 360-SS | 360-BD | 1/4″ | 0-150 | 0-10.3 |
| 360-SS | 360-DA | 1/2″ | 0-30 | 0-2.1 |
| 360-SS | 360-DB | 1/2″ | 0-60 | 0-4.1 |
| 360-SS | 360-DC | 1/2″ | 0-100 | 0-6.9 |
| 360-SS | 360-DD | 1/2″ | 0-150 | 0-10.3 |
Type 370SS Stainless Steel Filter
| Model | Part Number | Port Size
(NPT) |
| 370-SS | 370-BX | 1/4″ |
| 370-SS | 370-DX | 1/2″ |

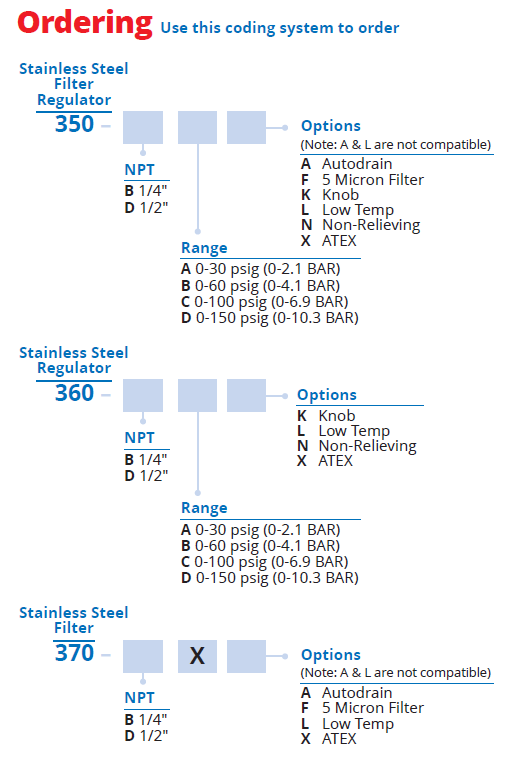

OPTIONS Add proper letter on to end of model number:
A – Automatic Drain (Type 350 and Type 370 only) Float operated drain with 1/8” NPTconnection. Maximum 150 psig supply pressure. Minimum 32°F (0°C) temperature.
F – 5 Micron Filter. Standard 25 micron filter is replaced with 5 micron filter for more complete air filtration.
K – Knob Knob with stainless steel stem
L – Low Temperature Operation: For “Arctic” applications. Good for temperatures range of -61°F to +194°F (-52°C to +90°C). Not suitable for sour natural gas applications
N – Nonrelieving. For constant flow or downstream pressure relief applications.
R – EAC TR-CU
X – ATEX 94/9/EC
ACCESSORIES
Panel Nut – P/N 446-734-052
Mounting Bracket Kit – P/N 448-542-011 Includes mounting bracket and panel nut
Pressure Gauge – 2″ face; dual scale; 1/4″ NPT center-back connection; stainless steel case and internals.
0-30 psi (0-2.1 bar) P/N: 445-725-019
0-60 psi (0-4.1 bar) P/N: 445-725-020
0-160 psi (0-11 bar) P/N: 445-725-021
