Description
Overview

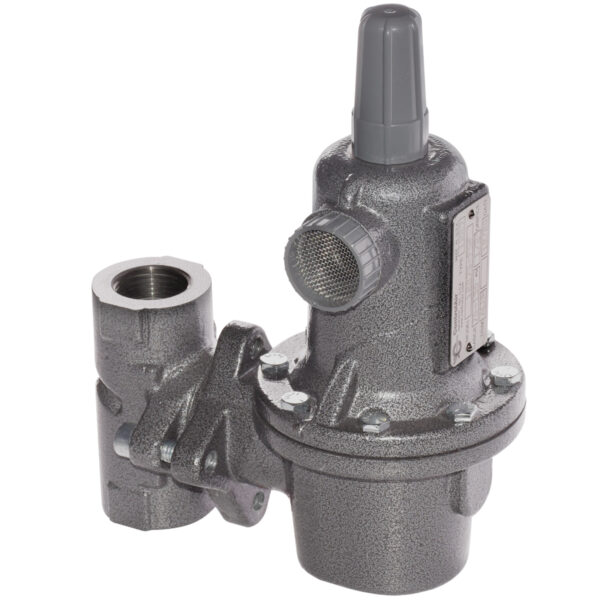

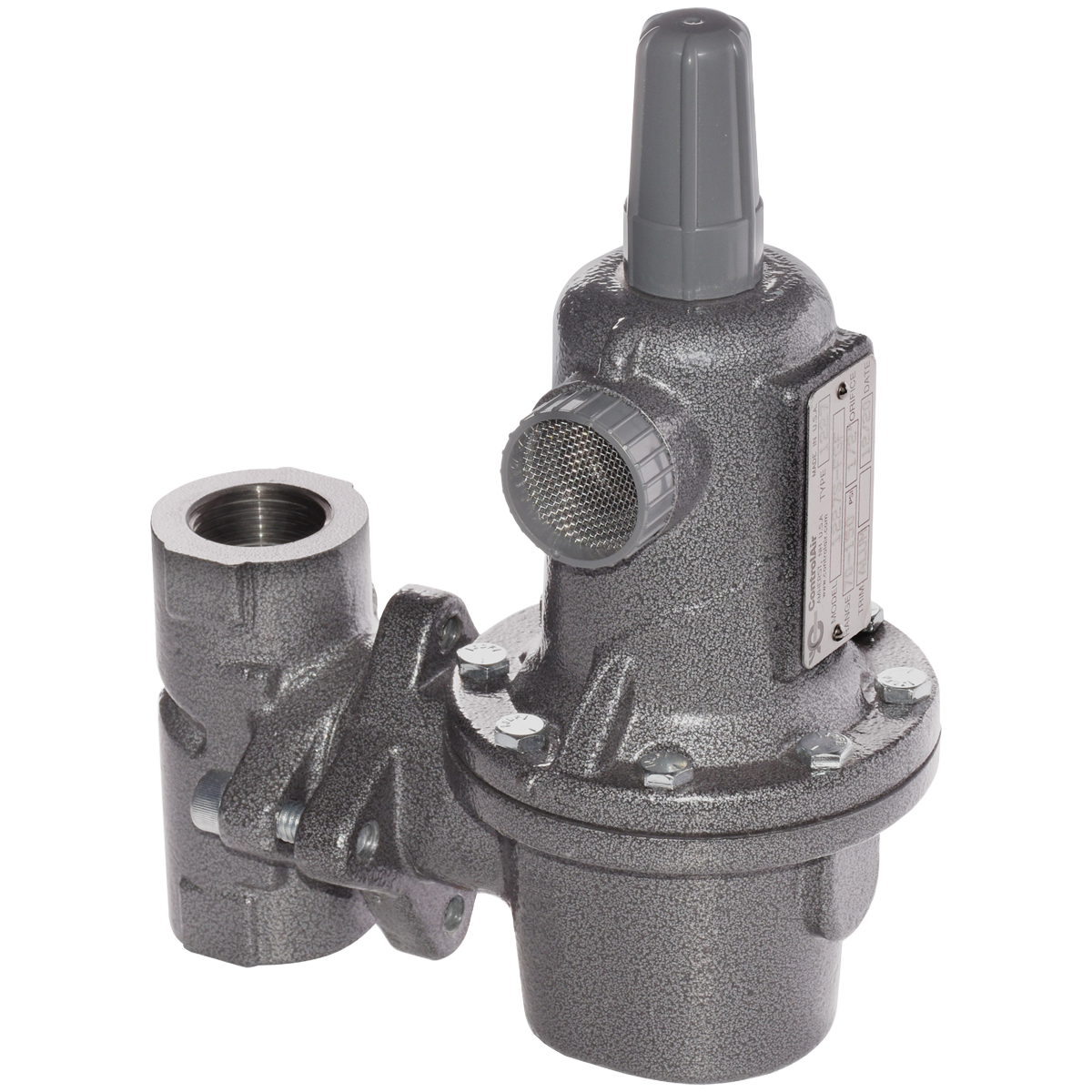

The Type 1227 High Flow Gas Pressure Regulator is a direct-operated pressure reducing regulator designed for natural gas, compressed air, and inert gas applications. Engineered specifically for the oil and gas industry, the Type 1227 delivers dependable pressure control across a wide range of operating conditions while supporting high flow rates and demanding field installations.
Available in 3/4″, 1″, and 2″ body sizes, the Type 1227 offers multiple orifice sizes, elastomer options, and pressure ranges to accommodate diverse flow and pressure requirements. The regulator’s modular design allows trim replacement without removing the regulator from the pipeline, reducing maintenance time and simplifying field service.
With optional downstream pressure monitoring, NACE MR0175 construction, and tamper-resistant adjustment protection, the Type 1227 provides flexible and reliable pressure control for upstream, midstream, and industrial gas applications.
Key Features
- Direct-operated pressure reducing regulator
- Designed for natural gas, compressed air, and inert gases
- Available in 3/4″, 1″, and 2″ NPT body sizes
- Wide range of orifice sizes for flow flexibility
- Tamper-proof adjustment cap prevents unauthorized setpoint changes
- Monitoring option provides downstream feedback control
- Trim replacement without removing regulator from service
- Field-configurable orientation for difficult installations
- Superior sensitivity and pressure control
- NACE MR0175 construction available
- Assembled and tested in the USA
Performance Characteristics
- Body Sizes: 3/4″, 1″, and 2″ NPT
- Output Pressure Ranges: 5-20 psig, 15-40 psig, 10-95 psig, 35-80 psig, and 70-150 psig
- Maximum Body Pressure Rating: 2,000 psig (138 bar)
- Orifice Sizes: 3/32″, 1/8″, 3/16″, 1/4″, 3/8″, and 1/2″
- Cv Values: Up to 5.29 depending on body and orifice size
- Flow Capacities: Up to 160,000 SCFH depending on configuration
- Operating Media: Natural gas, compressed air, and inert gases
- Nitrile Temperature Range: -40°F to 180°F (-40°C to 82°C)
- Fluorocarbon Temperature Range: 0°F to 180°F (-18°C to 82°C)
- 3/4″ and 1″ Body Weight: 6.25 lbs (2.83 kg)
- 2″ Body Weight: 9.25 lbs (4.20 kg)
Important: The Type 1227 does not include internal relief. If inlet pressure can exceed diaphragm casing pressure ratings, an external pressure relief device should be installed.

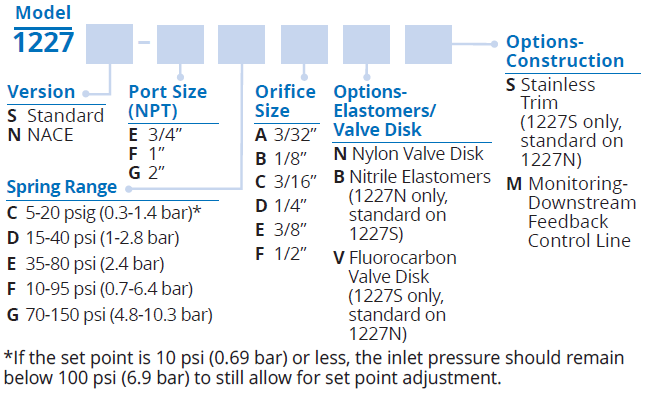

How to Select the Right Configuration
Selecting the correct Type 1227 configuration depends on flow requirements, operating pressure, gas type, and installation conditions.
- Select 3/4″ body size for lower flow applications
- Select 1″ body size for increased capacity while maintaining compact installation
- Select 2″ body size for maximum flow requirements
- Choose smaller orifices for precise low-flow regulation
- Select larger orifices for high-flow gas distribution applications
- Choose NACE construction for sour gas and corrosive environments
- Select the monitoring option when downstream pressure sensing is required
- Choose fluorocarbon components for compatible process media and temperature conditions
- Select stainless steel trim when enhanced corrosion resistance is required
For additional guidance:
Applications
The Type 1227 is designed for reliable gas pressure regulation across a wide range of industrial and energy applications.
- Natural gas pressure regulation
- Oil and gas production facilities
- Gas transmission and distribution systems
- Compressed air systems
- Industrial gas supply systems
- Gas metering stations
- Wellhead pressure control
- Process gas applications
- Midstream gas operations
- Utility gas distribution systems
Technical Resources
- Product Data Sheet
- Pressure Regulators for Oil & Natural Gas Catalog
- Installation Instructions
- CAD Models
- Product Configurator
FAQs
What gases can the Type 1227 regulate?
The Type 1227 is designed for natural gas, compressed air, and a variety of inert gases.
Does the Type 1227 include internal pressure relief?
No. The Type 1227 does not include internal relief. External pressure protection should be provided where required.
Is NACE construction available?
Yes. The Type 1227 is available in a NACE MR0175 compliant construction for oil and gas applications.
What body sizes are available?
The Type 1227 is available in 3/4″, 1″, and 2″ NPT body sizes.
Can the regulator be configured for downstream pressure monitoring?
Yes. The optional monitoring configuration provides a downstream feedback control line for enhanced pressure control.
