Description
Overview

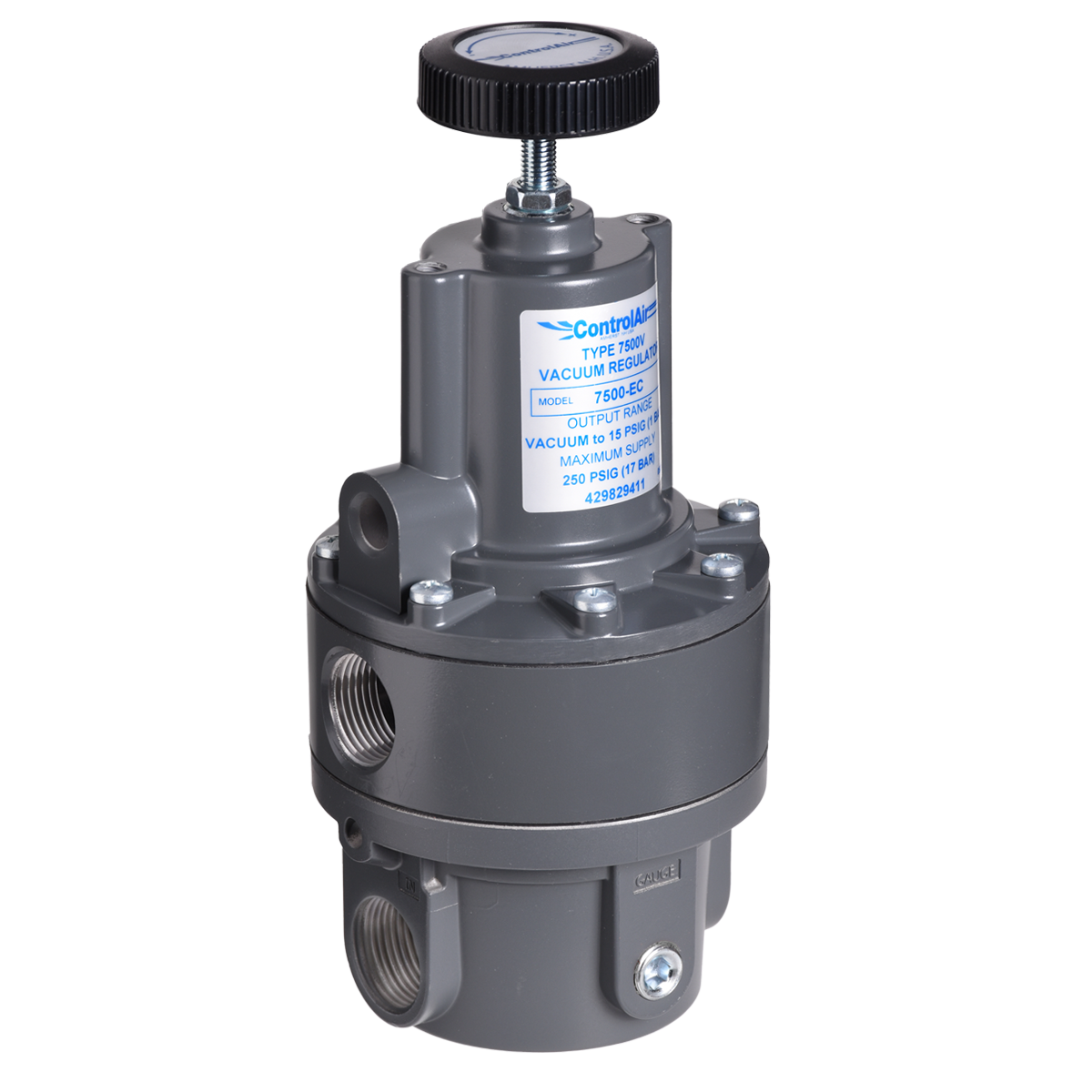

The Type 7500V Vacuum Regulator is designed to control pressure in high-flow pneumatic systems operating both above and below atmospheric pressure. A single regulator can control pressures ranging from vacuum up to 150 psig, providing a versatile solution for applications requiring vacuum regulation, positive pressure control, or operation across both pressure regions.
A fixed negative 15 psig bias spring enables vacuum outputs up to 29″ Hg, while an adjustable opposing range spring controls positive pressure outputs up to 150 psig. An aspirator minimizes output pressure droop, and an isolated output pressure control chamber helps eliminate vibration during high-flow conditions.
The Type 7500V combines flow capacity up to 250 scfm with sensitivity to output pressure deviations within 1 inch water column. Available with 1/4″, 1/2″, or 3/4″ NPT porting and three output pressure ranges, it provides flexible pressure and vacuum control for demanding industrial pneumatic systems.
Key Features
- Controls pressure above and below atmospheric pressure
- Single regulator provides vacuum and positive pressure control
- Vacuum capability up to 29″ Hg
- Positive pressure capability up to 150 psig
- 1/4″, 1/2″, or 3/4″ NPT porting
- High flow capacity
- Flow capacity up to 250 scfm under specified positive-pressure conditions
- Vacuum flow capacity up to 30 scfm at 29″ Hg vacuum
- Exhaust capacity up to 20 scfm
- Sensitivity of 1 inch water column
- Aspirator design minimizes output pressure droop
- Isolated output pressure control chamber helps eliminate vibration during high-flow conditions
- Soft valve design eliminates air consumption or vacuum droop at steady state
- Maximum supply pressure of 250 psig
- Two 1/4″ NPT gauge ports
- Pipe, panel, or bracket mounting
- Stainless steel adjustment options available
- Tamper-proof cover option available
- ATEX 2014/34/EU option available
Performance Characteristics
- Output Pressure Ranges: Vacuum to 15 psig (-1 to 1 bar), Vacuum to 30 psig (-1 to 2 bar), and Vacuum to 150 psig (-1 to 10 bar)
- Maximum Vacuum: Up to 29″ Hg
- Maximum Supply Pressure: 250 psig (17.5 bar)
- Vacuum Flow Capacity: 30 scfm (790 Nl/min) at 29″ Hg vacuum
- Positive Pressure Flow Capacity: 250 scfm (6,580 Nl/min) at 100 psig (6.9 bar) supply and 80 psig (5.5 bar) output
- Exhaust Capacity: 20 scfm (526 Nl/min) with downstream pressure 5 psi (0.35 bar) above set pressure
- Sensitivity: 1″ (25.4 mm) water column
- Supply Pressure Effect: Less than 0.1 psi for a 100 psi supply pressure change
- Operating Temperature Range: -40°F to 200°F (-40°C to 93.3°C)
- Inlet/Outlet Port Sizes: 1/4″, 1/2″, or 3/4″ NPT
- Gauge Ports: Two 1/4″ NPT
- Mounting: Pipe, panel, or bracket
- Weight: 4 lbs (1.81 kg)
The Type 7500V provides high flow capacity across both vacuum and positive-pressure operation. At 29″ Hg vacuum, flow capacity is rated at 30 scfm (790 Nl/min). Under positive-pressure conditions, the regulator provides up to 250 scfm (6,580 Nl/min) with 100 psig supply and 80 psig output.
How to Select the Right Configuration
Selecting the correct Type 7500V configuration depends on the required output pressure range, connection size, installation environment, adjustment requirements, and desired accessories.
- Select the Vacuum to 15 psig range for systems requiring vacuum control with low positive-pressure capability
- Select the Vacuum to 30 psig range for applications requiring vacuum control with moderate positive-pressure capability
- Select the Vacuum to 150 psig range for applications requiring the widest available positive-pressure operating range
- Select 1/4″ NPT porting for smaller pneumatic connections
- Select 1/2″ or 3/4″ NPT porting for installations requiring larger piping connections
- Select the Stainless Steel Knob Stem option when increased corrosion resistance is required at the adjustment mechanism
- Select the Stainless Steel Adjust Screw option when maximum corrosion resistance is required for the pressure adjustment screw
- Select the Tamper-Proof Cover option when casual or unauthorized adjustment of the output pressure should be prevented
- Select the ATEX option when ATEX 2014/34/EU compliance is required
- Choose pipe, panel, or bracket mounting based on installation requirements
For additional guidance:
Applications
The Type 7500V is designed for high-flow pneumatic systems requiring controlled vacuum, positive pressure, or both operating conditions from a single regulator.
- Vacuum chamber control
- Chamber evacuation
- Positive-pressure chamber purging
- Vacuum pump systems
- Pressure and vacuum testing systems
- Industrial process control
- Pneumatic automation systems
- Packaging equipment
- Material handling systems
- Vacuum handling equipment
- Process vessels and chambers
- Systems transitioning between vacuum and positive pressure
- High-flow vacuum regulation
- High-flow positive pressure regulation

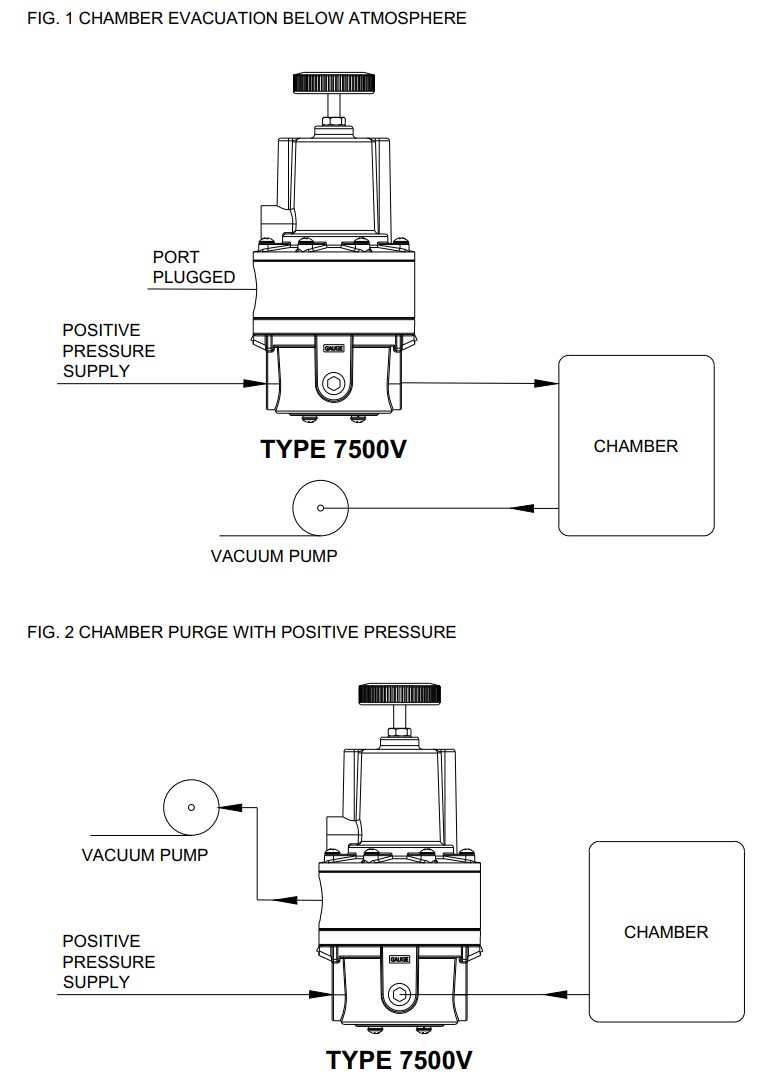

The typical installation diagrams on page 2 of the specification sheet show two operating arrangements. The first illustrates chamber evacuation below atmospheric pressure using a vacuum pump, while the second illustrates chamber purging with positive pressure. These configurations demonstrate the Type 7500V’s ability to regulate both vacuum and positive pressure in a single system.
Principle of Operation
The Type 7500V uses opposing spring forces to regulate output pressure across vacuum and positive-pressure conditions. A fixed negative 15 psig bias spring establishes the force required for vacuum regulation, allowing the regulator to maintain vacuum outputs up to 29″ Hg. An adjustable opposing range spring provides control of positive output pressure up to the selected range.
When system pressure deviates from the desired setting, the regulator responds by controlling the appropriate pressure or vacuum flow path. The aspirator helps compensate for pressure droop as flow changes, while the isolated output pressure control chamber prevents flow-induced vibration from interfering with regulation.
The cutaway diagram on page 2 identifies the regulator’s atmosphere or positive pressure supply, regulated vacuum, vacuum supply, and atmosphere pressure paths. Together with the two typical installation diagrams, it illustrates how the Type 7500V can be configured for both chamber evacuation and positive-pressure purge applications.
Models & Configurations

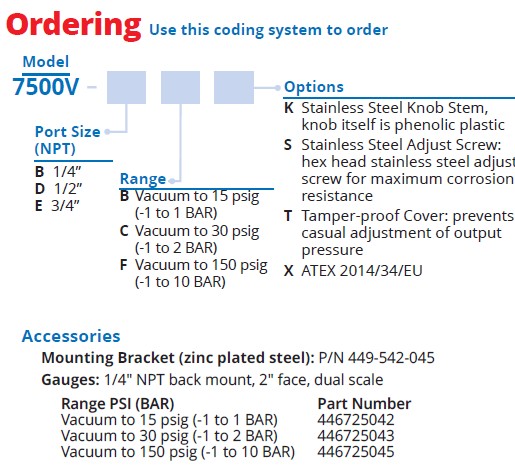

Type 7500V Ordering Structure
7500V-[Port Size][Range][Options]
Port Size
- B = 1/4″ NPT
- D = 1/2″ NPT
- E = 3/4″ NPT
Pressure Ranges
- B = Vacuum to 15 psig (-1 to 1 bar)
- C = Vacuum to 30 psig (-1 to 2 bar)
- F = Vacuum to 150 psig (-1 to 10 bar)
Available Options
- K = Stainless Steel Knob Stem; knob itself is phenolic plastic
- S = Stainless Steel Adjust Screw; hex-head stainless steel adjust screw for maximum corrosion resistance
- T = Tamper-Proof Cover; helps prevent casual adjustment of output pressure
- X = ATEX 2014/34/EU
The Type 7500V ordering system combines the selected port size, pressure range, and optional adjustment or certification features. Available port sizes are 1/4″, 1/2″, and 3/4″ NPT, with pressure ranges extending from vacuum to 15, 30, or 150 psig.
Accessories
- Zinc Plated Steel Mounting Bracket: P/N 449-542-045
- Vacuum to 15 psig (-1 to 1 bar) Gauge: P/N 446725042
- Vacuum to 30 psig (-1 to 2 bar) Gauge: P/N 446725043
- Vacuum to 150 psig (-1 to 10 bar) Gauge: P/N 446725045
The available gauges feature 1/4″ NPT back-mount connections, 2″ faces, and dual-scale pressure markings.
Materials of Construction
- Body: Die-Cast Aluminum Alloy
- Internal Components: Stainless Steel, Brass, Plated Steel, and Acetal
- Diaphragm: Buna-N Elastomer with Polyester Fabric
- Knob: Phenolic Plastic
- Spring: Music Wire
The Type 7500V uses a die-cast aluminum alloy body with stainless steel, brass, plated steel, and acetal internal components. The diaphragm is constructed from Buna-N elastomer with polyester fabric reinforcement.
Technical Resources
FAQs
What is the Type 7500V vacuum regulator used for?
The Type 7500V is used to regulate pressure in high-flow systems operating above and below atmospheric pressure. It can control vacuum as well as positive pressure from a single regulator.
What pressure ranges are available for the Type 7500V?
The Type 7500V is available in vacuum to 15 psig, vacuum to 30 psig, and vacuum to 150 psig output pressure ranges.
How much vacuum can the Type 7500V regulate?
The Type 7500V can maintain vacuum outputs up to 29″ Hg using its fixed negative 15 psig bias spring.
What is the maximum supply pressure?
The maximum supply pressure for the Type 7500V is 250 psig (17.5 bar).
What is the flow capacity of the Type 7500V?
The Type 7500V provides 30 scfm (790 Nl/min) at 29″ Hg vacuum and up to 250 scfm (6,580 Nl/min) with 100 psig supply and 80 psig output under the specified positive-pressure flow conditions.
What is the exhaust capacity of the Type 7500V?
The exhaust capacity is 20 scfm (526 Nl/min) with downstream pressure 5 psi (0.35 bar) above the set pressure.
How sensitive is the Type 7500V?
The Type 7500V senses output pressure deviations to within 1 inch (25.4 mm) water column.
How does the Type 7500V maintain stable output pressure?
An aspirator helps minimize output pressure droop, while an isolated output pressure control chamber helps eliminate vibration during high-flow conditions.
What port sizes are available?
The Type 7500V is available with 1/4″, 1/2″, or 3/4″ NPT inlet and outlet ports. It also includes two 1/4″ NPT gauge ports.
What is the operating temperature range?
The Type 7500V operates from -40°F to 200°F (-40°C to 93.3°C).
Can the Type 7500V regulate both vacuum and positive pressure?
Yes. The Type 7500V is specifically designed to regulate pressures above and below atmospheric pressure, allowing a single unit to control vacuum and positive pressure.
Can the Type 7500V be used for chamber evacuation and purging?
Yes. The Type 7500V can be configured for chamber evacuation below atmospheric pressure or for chamber purging with positive pressure.
Is a tamper-proof option available?
Yes. An optional tamper-proof cover is available to help prevent casual adjustment of the output pressure setting.
Is an ATEX option available?
Yes. An ATEX 2014/34/EU option is available for the Type 7500V.
