Description

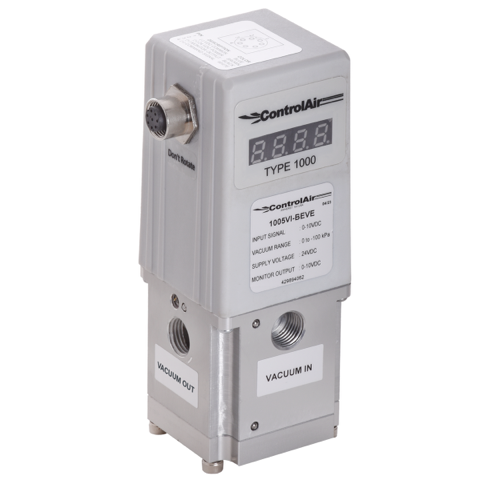

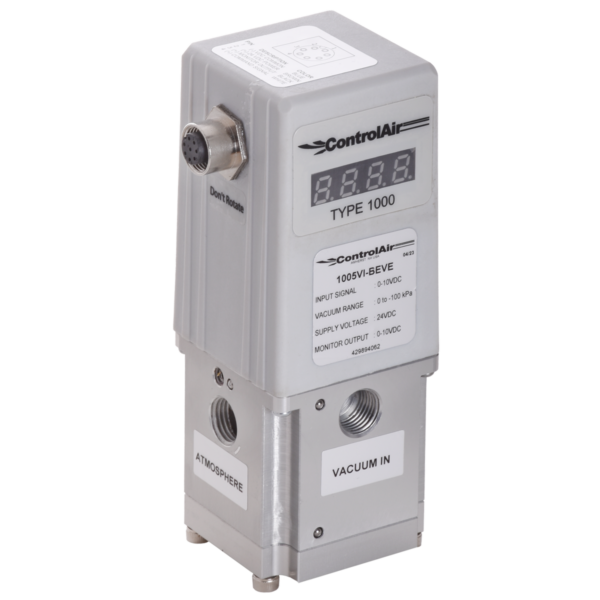

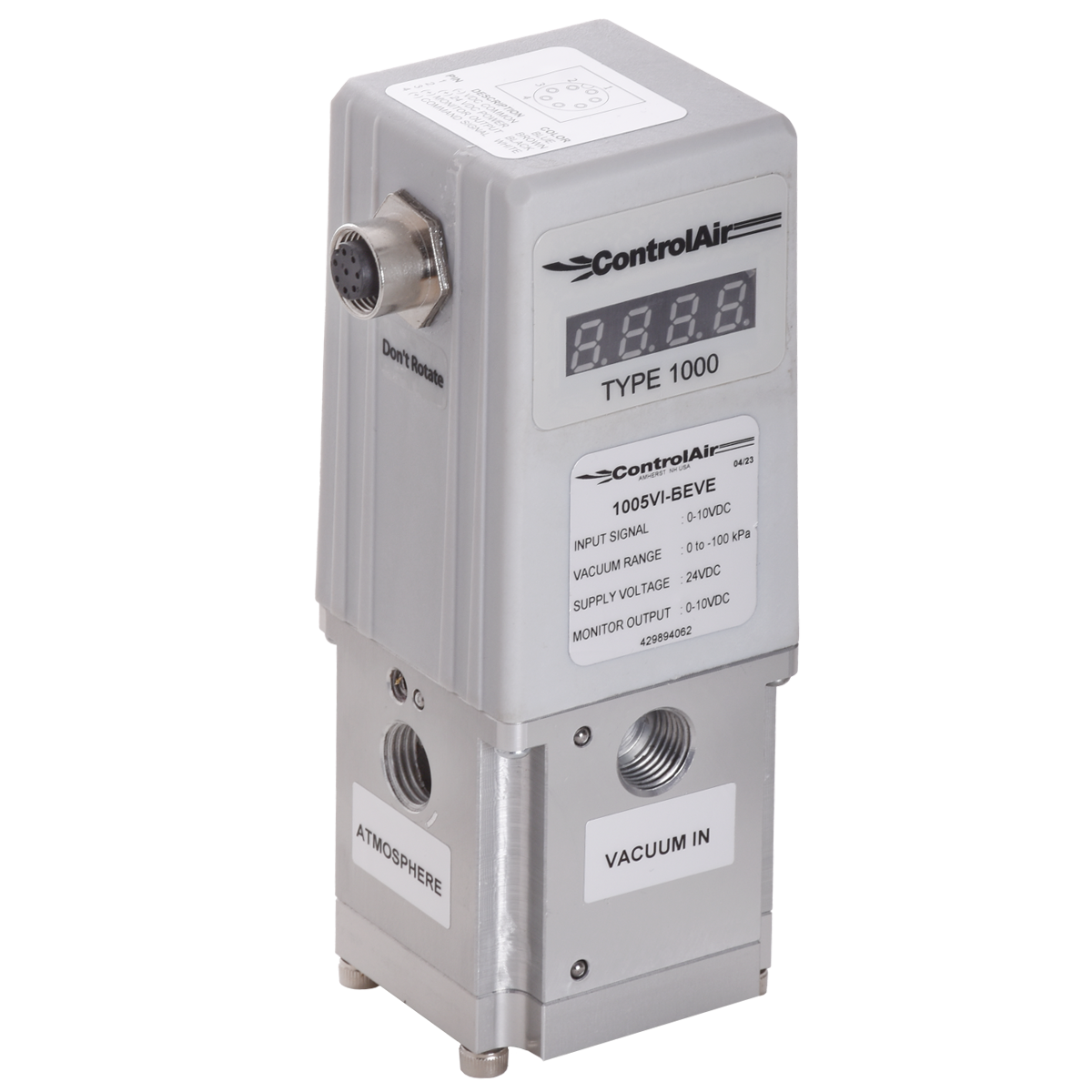

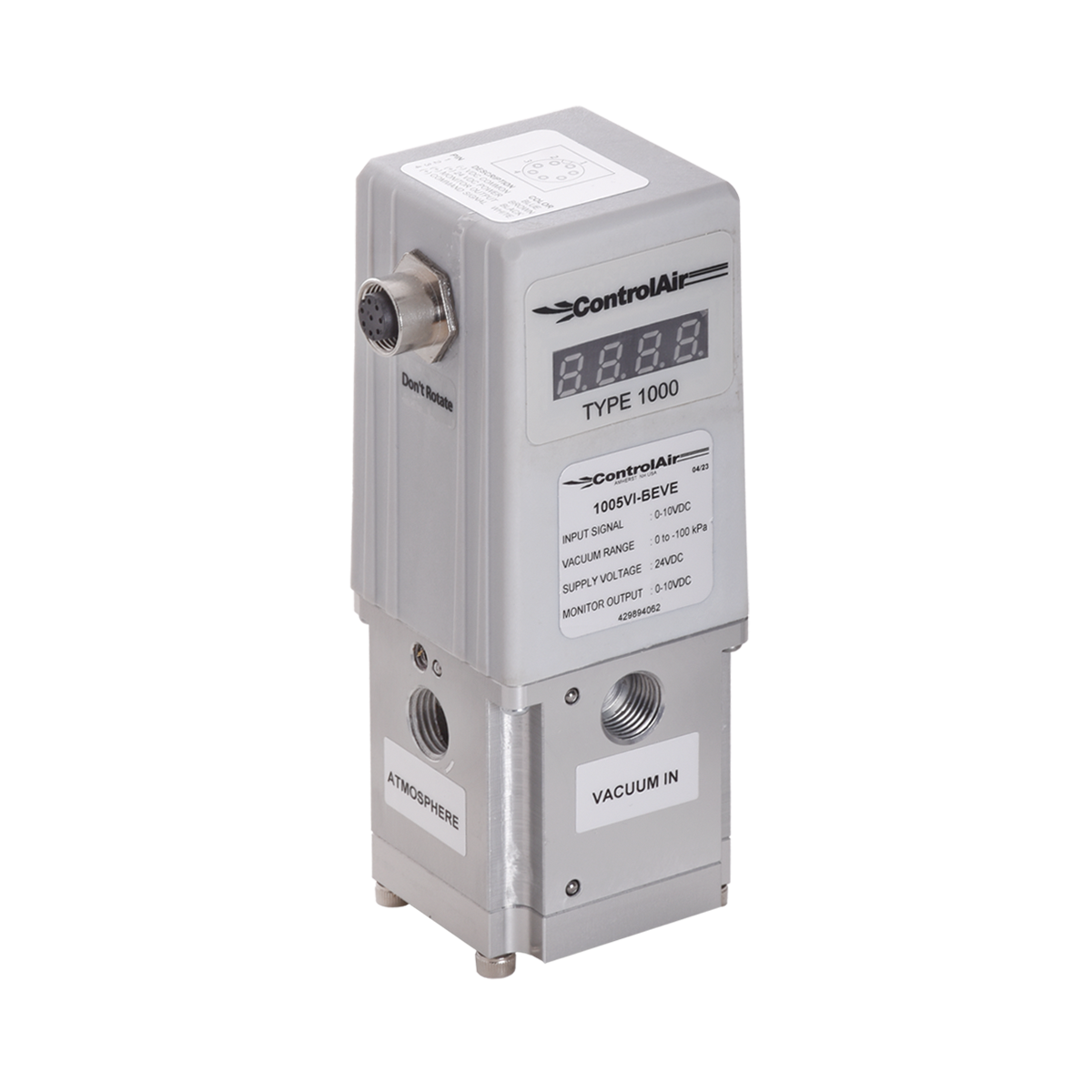

The Type 1005V Electronic Vacuum Regulator is a closed loop design, consisting of 2 solenoid valves, one pressure transducer and an electronic board that performs PID closed loop control. According to the input electronic signal, one valve opens up the vacuum inlet, and the other valve acts as vacuum breaker. Whilst increasing the vacuum level, the inlet valve acts upon the internal piston and allows air to be withdrawn. The internal pressure transducer senses the vacuum level and provides feedback to the electronic board which in turn controls the action of two valves until the target vacuum level is reached. ControlAir’s Vacuum Pressure Regulator receives input signal of 0-10V or 4-20mA.
Features
• Electronic Closed-Loop minimizes effects of vibration, mounting position, temperature and supply pressure
• Versatile Control Digital or analog input and output configurations
• IP65 Suitable for wet or dirty environments
• M12 Cable 2 meter cable supplied with each unit
