Description
Overview

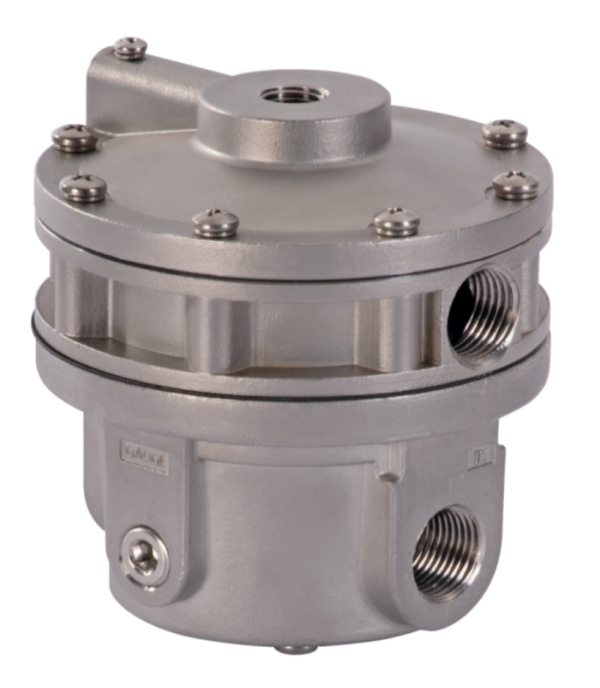

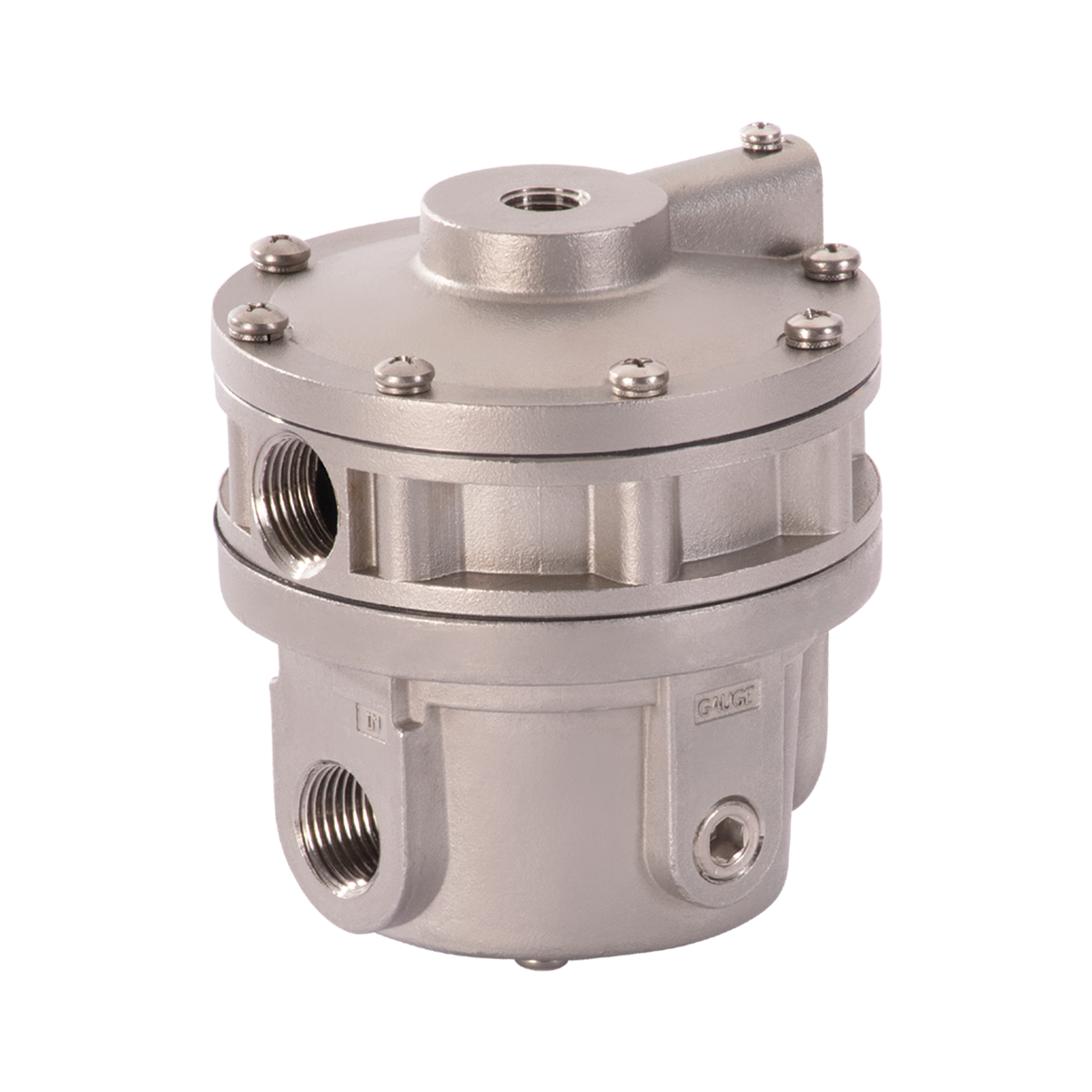

The Type 6200 High Flow Capacity Volume Booster is a 1:1 signal-to-output pneumatic relay designed for applications requiring high forward flow and exhaust capacity. Constructed with a rugged 316 stainless steel housing and stainless steel internal components, the Type 6200 is well suited for demanding control valve applications where rapid actuator response and corrosion-resistant construction are required.
Typically installed to increase the throttling speed of large-volume valve actuators, the Type 6200 is suitable for both diaphragm and piston actuators. A fixed deadband and integral adjustable bypass valve allow small incremental downstream adjustments without opening the main booster valve, while larger signal changes activate the booster for rapid actuator stroking.
The Type 6200 combines high flow capacity, a soft valve seat for tight shutoff, a standard 1/2″ NPT tapped exhaust, multiple supply and output port sizes, and broad temperature capabilities. An optional negative bias is available for applications requiring a 4 psi signal offset, and the Type 6100/6200 series is IEC 61508 SIL3 certified.
Key Features
- High-flow pneumatic volume booster
- 1:1 signal-to-output ratio
- Designed for rapid actuator stroking
- Suitable for diaphragm and piston actuators
- 316 stainless steel housing
- Stainless steel bolting, trim, and internal components
- Integral adjustable bypass valve
- Fixed deadband for stable operation
- Small incremental signal changes can bypass the primary valve
- High forward flow and exhaust capacity
- Soft valve seat design provides tight shutoff
- Helps eliminate leakage during steady-state operation
- 1/4″, 1/2″, and 3/4″ NPT supply and output port options
- Standard 1/2″ NPT tapped exhaust port
- Two 1/4″ NPT gauge ports
- Standard operation up to 200°F (93°C)
- Low-temperature option down to -62°F (-52°C)
- Expanded-temperature option up to 284°F (140°C)
- Optional -4 ±1 psig negative bias
- ATEX 2014/34/EU option available
- IEC 61508 SIL3 certified
Performance Characteristics
- Signal-to-Output Ratio: 1:1
- Maximum Supply Pressure: 250 psig (17 bar)
- Maximum Signal Pressure: 150 psig (10 bar)
- Output Accuracy: 1.0% of 100 psi output span
- Sensitivity: 1″ H2O (2.54 cm)
- Deadband: Under 0.2 psig (0.01 bar)
- Supply Pressure Effect: 0.1 psig (0.007 bar) for a 25 psig (1.7 bar) supply pressure change
- 3/4″ Forward Flow Coefficient (Cv): 5.0
- 3/4″ Exhaust Flow Coefficient (Cv): 4.0
- 1/2″ Forward Flow Coefficient (Cv): 4.5
- 1/2″ Exhaust Flow Coefficient (Cv): 4.0
- 1/4″ Forward Flow Coefficient (Cv): 2.0
- 1/4″ Exhaust Flow Coefficient (Cv): 3.0
- 3/4″ Exhaust Capacity: 80 scfm (2,264 Nl/min)
- 1/2″ Exhaust Capacity: 75 scfm (2,123 Nl/min)
- 1/4″ Exhaust Capacity: 35 scfm (991 Nl/min)
- Standard Temperature Range: -40°F to 200°F (-40°C to 93°C)
- Low Temperature Option: -62°F to 194°F (-52°C to 90°C)
- Expanded Temperature Option: -55°F to 284°F (-48°C to 140°C)
- Signal Port: 1/4″ NPT
- Supply/Output Ports: 1/4″, 1/2″, or 3/4″ NPT
- Exhaust Port: 1/2″ NPT
- Gauge Ports: Two 1/4″ NPT
- Weight: 5.7 lbs (2.60 kg)
These performance characteristics provide the Type 6200 with high forward and exhaust flow, low deadband, and responsive pneumatic control for large-volume actuators. Compared with the aluminum Type 6100, the Type 6200 provides higher exhaust Cv values of 3.0 for the 1/4″ model and 4.0 for the 1/2″ and 3/4″ models.
How to Select the Right Configuration
Selecting the correct Type 6200 configuration depends on the required airflow, port size, operating temperature, environmental conditions, and actuator requirements.
- Select the 1/4″ NPT model for applications requiring a forward Cv of 2.0, exhaust Cv of 3.0, and exhaust capacity up to 35 scfm
- Select the 1/2″ NPT model for applications requiring a forward Cv of 4.5, exhaust Cv of 4.0, and exhaust capacity up to 75 scfm
- Select the 3/4″ NPT model for applications requiring the highest available forward Cv of 5.0, exhaust Cv of 4.0, and exhaust capacity up to 80 scfm
- Choose the Type 6200 when 316 stainless steel construction is required for enhanced corrosion resistance
- Select the Low Temperature option for operating temperatures from -62°F to 194°F (-52°C to 90°C)
- Select the Expanded Temperature option for operating temperatures from -55°F to 284°F (-48°C to 140°C)
- Select the Negative Bias option when a -4 ±1 psig bias is required
- Select the ATEX option when ATEX 2014/34/EU compliance is required
- Use the integral bypass valve to tune dynamic response for the actuator size and application
- Select the stainless steel mounting bracket when corrosion resistance is required throughout the installation
For additional guidance:
Applications
The Type 6200 High Flow Capacity Volume Booster is designed for pneumatic valve control systems requiring rapid actuator response, high forward and exhaust airflow, and rugged stainless steel construction.
- Pneumatic control valves
- Large-volume valve actuators
- Diaphragm actuators
- Piston actuators
- Valve positioner and actuator systems
- Fast-stroking control valves
- Throttling control applications
- Process control systems
- Industrial automation systems
- High-flow pneumatic systems
- Corrosive industrial environments
- Outdoor process installations
- Safety-related valve control systems
- Applications requiring negative bias to zero I/P transducers
Principle of Operation
The Type 6200 operates as a 1:1 pneumatic relay between the control signal and actuator. Signal pressure acts on the booster diaphragm assembly, causing the main supply or exhaust valve to respond when the pressure difference exceeds the unit’s fixed deadband.
The integral adjustable bypass allows small signal changes to reach the actuator without opening the primary booster valve. Larger signal changes activate the main valve, allowing the Type 6200 to rapidly supply or exhaust air from the actuator. Adjusting the bypass allows the dynamic response of the booster and actuator system to be tuned for stable operation across a wide range of actuator sizes.
The principle-of-operation diagram on page 2 of the specification sheet identifies the supply, signal, atmosphere, and output flow paths through the booster.
Models & Configurations
Type 6200 Models
- 6200-BS = 316 Stainless Steel Housing, 1/4″ NPT
- 6200-DS = 316 Stainless Steel Housing, 1/2″ NPT
- 6200-ES = 316 Stainless Steel Housing, 3/4″ NPT
Available Options
- L = Low Temperature, -62°F to 194°F (-52°C to 90°C)
- P = Expanded Temperature, -55°F to 284°F (-48°C to 140°C)
- X = ATEX 2014/34/EU
- Z = Negative Bias, -4 ±1 psig
The Type 6200 includes a 1/2″ NPT tapped exhaust as standard. The E tapped exhaust option and S stainless steel trim option listed for the Type 6100 are therefore not applicable to the Type 6200.
Accessories
- Zinc Plated Steel Mounting Bracket: P/N 449-542-045
- Stainless Steel Mounting Bracket: P/N 449-542-050
- 1/2″ NPT Stainless Steel Exhaust Screen/Muffler Fitting: P/N 445-761-012
The stainless steel exhaust screen/muffler fitting is specifically identified for the Type 6200 in the specification sheet.
Materials of Construction
- Housing: 316 Stainless Steel
- Bolting: Stainless Steel
- Other Trim: Stainless Steel
- Internal Components: Stainless Steel
- Standard Elastomers: Nitrile
- Low Temperature Option Elastomers: Silicone
- Expanded Temperature Option Elastomers: EPDM
The Type 6200 uses stainless steel for the housing, bolting, trim, and internal components. This distinguishes it from the aluminum Type 6100 and makes the Type 6200 the appropriate configuration when stainless steel construction is required.
Technical Resources
- Product Data Sheet
- Installation Information
- CAD Models
- Product Certifications
- Engineering Support Resources
FAQs
What is the Type 6200 volume booster used for?
The Type 6200 is used to increase forward and exhaust airflow to pneumatic valve actuators, helping large-volume diaphragm and piston actuators stroke more rapidly in response to control signals.
What is the Type 6200 made from?
The Type 6200 features a 316 stainless steel housing with stainless steel bolting, trim, and internal components.
What is the difference between the Type 6100 and Type 6200?
The Type 6100 uses an aluminum housing, while the Type 6200 uses a 316 stainless steel housing with stainless steel bolting, trim, and internal components. The Type 6200 also has a standard 1/2″ NPT tapped exhaust and higher exhaust Cv values.
What is the signal-to-output ratio of the Type 6200?
The Type 6200 provides a 1:1 signal-to-output pressure ratio.
What does the adjustable bypass valve do?
The adjustable bypass valve allows small incremental signal changes to reach the actuator without opening the main booster valve. It can be adjusted to tune dynamic response and provide stable operation across different actuator sizes.
What port sizes are available for the Type 6200?
The Type 6200 is available with 1/4″, 1/2″, or 3/4″ NPT supply and output ports. The signal port and two gauge ports are 1/4″ NPT.
What is the exhaust capacity of the Type 6200?
Exhaust capacity depends on port size. The 1/4″ model provides 35 scfm, the 1/2″ model provides 75 scfm, and the 3/4″ model provides 80 scfm.
What is the maximum supply pressure?
The Type 6200 has a maximum supply pressure of 250 psig (17 bar).
What is the deadband of the Type 6200?
The Type 6200 has a deadband of less than 0.2 psig (0.01 bar).
What temperature ranges are available?
The standard Type 6200 operates from -40°F to 200°F (-40°C to 93°C). A low-temperature option provides operation from -62°F to 194°F (-52°C to 90°C), while an expanded-temperature option provides operation from -55°F to 284°F (-48°C to 140°C).
What is the negative bias option used for?
The optional negative bias provides a -4 ±1 psig bias of the signal pressure and can be used to help zero I/P transducers in applicable pneumatic control systems.
Is the Type 6200 SIL3 certified?
Yes. The Type 6100/6200 volume booster series is IEC 61508 SIL3 certified.
Is an ATEX option available?
Yes. An ATEX 2014/34/EU option is available for the Type 6200.
