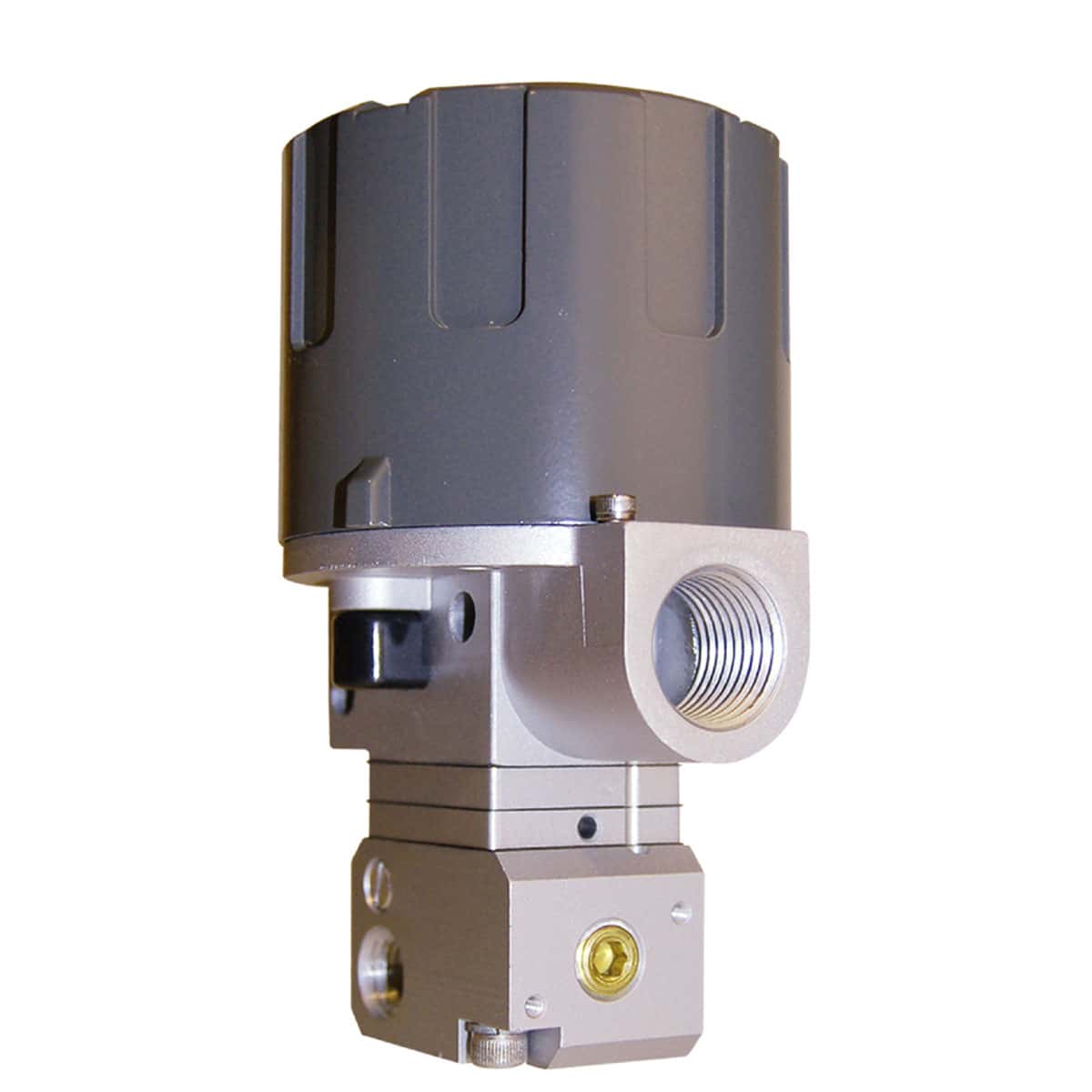

Type 595XP Explosion-Proof I/P Transducer

Type 595XP Explosion-Proof I/P Transducer
FM Approved Logo CSA Certification Logo Ex Certification Logo CE Logo EAC Logo RoHS Logo

PDF Sales Sheet

Instructions

Product Configurator

3D CAD MODELS

  • Description
  • Specifications

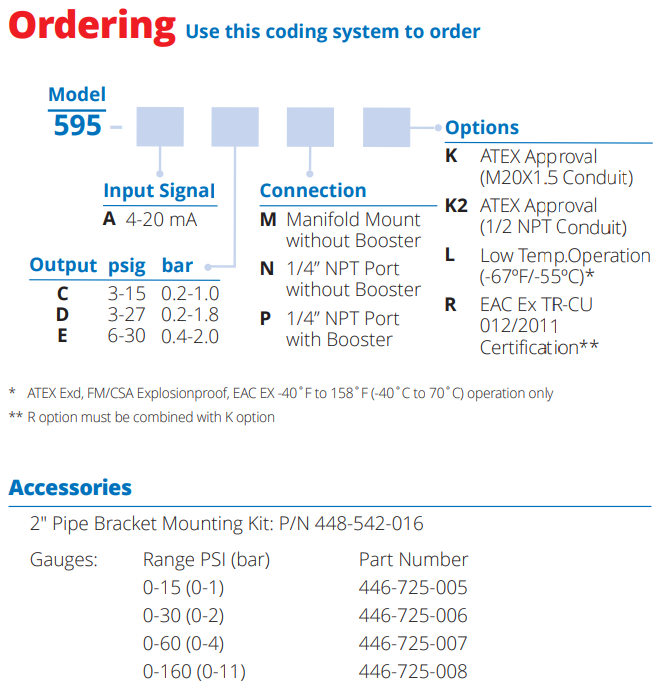

  • Ordering Information
  • Gauges & Accessories

Description

Electronic Pressure Regulator that delivers regulation accuracy and repeatability for the operation of actuated valves

The Type 595XP Explosionproof I/P (current to pressure) transducer converts a 4–20mA electrical current signal to a proportionally linear pneumatic output. The unique conversion technology utilizing open loop control provides a high level of accuracy and repeatability for the operation of actuated valves. A low mass control circuit provides consistent output in high vibration applications.

This compact unit is housed in an explosion proof enclosure that is designed for pipe, bracket or direct manifold mounting. This explosion-proof and intrinsically safe field device is available with an integral volume booster or as a low-flow signal converter that directly mounts to a pneumatic valve positioner. The Type 595XP has worldwide agency approvals for use in hazardous areas.

Multiple choices for wiring and porting simplify installation and decrease the time required to do so. In addition to standard wall, panel or pipe mounting, optional DIN rail and manifold mounting kits are available. The ControlAir Type 925 Multifunction Manifold provides a common supply port and individual shutoff valves for sets of 3, 5, 10 or 15 units.

Additional information

Input

4-20 mA

Output Range

3-15 psig (0.20-1.0 bar), 3-27 psig (0.20-1.8 bar), 6-30 psig (0.40-2.0 bar)

Max. Supply Pressure

150 psig (10 bar)

Air Consumption - P Connection (with Flow Booster)

0.1 scfm (2.83 Nl/min)

Air Consumption @ 85 psig (6.0 bar) - M & N Connection (without Flow Booster)

4.94 scfh (2.47 Nl/min)

Flow Capacity - P Connection (with Flow Booster)

2.4 scfm (67.92 Nl/min)

Flow Capacity @ 150 psig (4.18 Nl/min) - M & N Connection (without Flow Booster)

8.36 scfh (4.18 Nl/min)

Temperature Range (Operating)

-40° to 158°F ('-40° to 70°C), -67° to 158°F (-55° to 70°C)

Relative Humidity

75% average – 95% short time non-condensing

Impedance

260 Ohms @ 70°F

Linearity (Independent)

<± 0.5% of span

Repeatability - (±0.15% of span typical)

<±0.3% of span

Hysteresis

<±0.3% of span

Deadband

<±0.1% of span

Mounting Orientation Effect

<±0.5% / 90 degree change

Air Supply Sensitivity - P Connection (with Flow Booster)

<0.3% / 1.5 psig (0.10 bar) change

Air Supply Sensitivity - M & N Connection (without Flow Booster)

<±0.6% / 25 psig (1.72 bar) change

Vibration Effect

<±1% up to 10g and 20-80 Hz

Housing

NEMA 4X (IP 65)

Port Size

1/4" NPT, 1/16 " Manifold Mount, 1/8" NPT Gauge Port

Media

Clean, dry, oil-free, instrument air, filtered to 40 micron

Electrical Connection

Terminal block

Mounting

Direct, 2" pipe

Materials (Body)

Aluminum, Plastic

Materials (Other)

Buna-N, Stainless Steel, Brass, Zinc-plated Steel

Weight - P Connection (with Flow Booster)

1.40 lbs. (0.64 kg.)

Weight - M Connection (without Flow Booster)

1.20 lbs. (0.54 kg.)

Weight - N Connection (without Flow Booster)

1.25 lbs. (0.57 kg.)

TypePart NumberThread SizePressure RangeWetted Material

Gauge - Back Mount

446-725-005

1/8" NPT

0-15 PSI (0-1bar)

Brass

Gauge - Back Mount

446-725-006

1/8" NPT

0-30 PSI (0-2bar)

Brass

Gauge - Back Mount

446-725-007

1/8" NPT

0-60 PSI (0-4bar)

Brass

Gauge - Back Mount

446-725-008

1/8" NPT

0-160 PSI (0-11bar)

Brass
