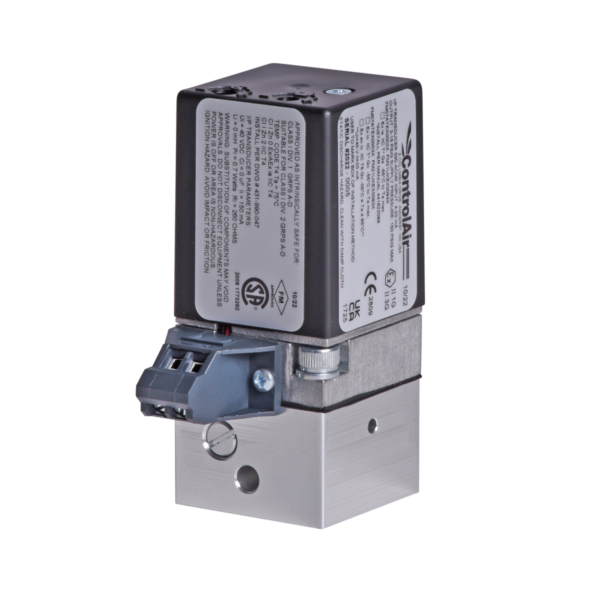

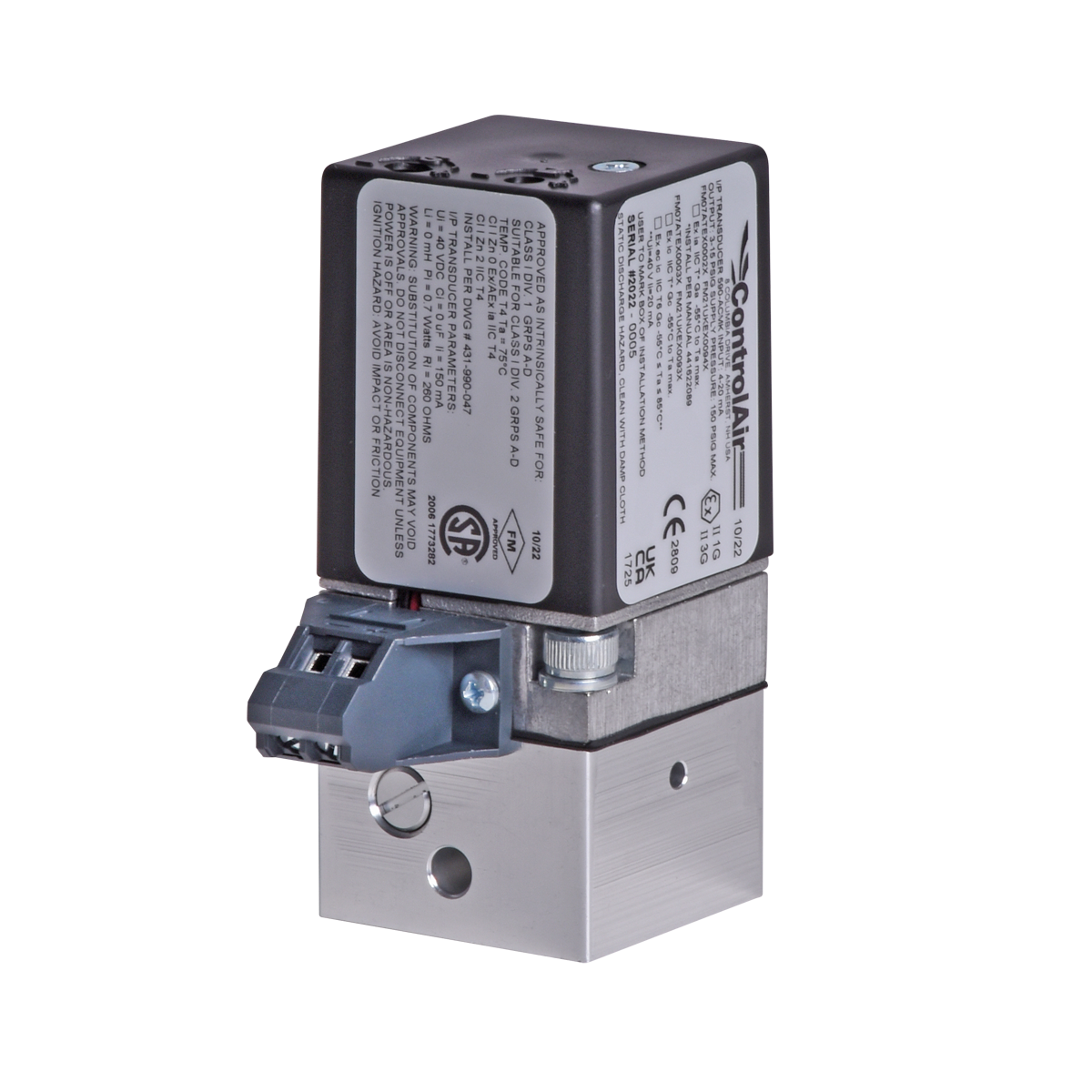

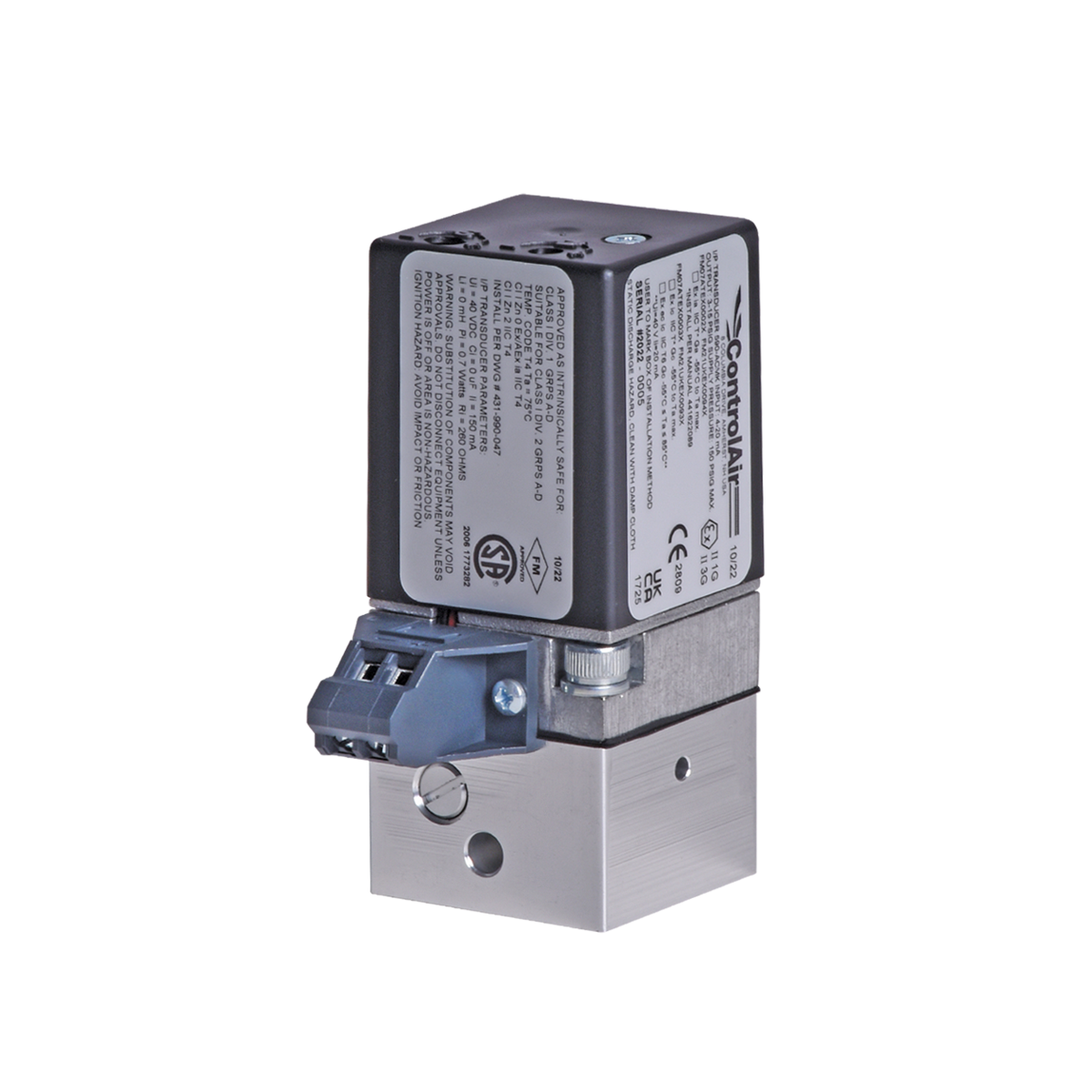

The Type 590X Manifold Mount I/P Transducer converts a variable 4-20 mA electrical input signal into a low-flow, linearly proportional pneumatic output. Its compact size, light weight, and resistance to shock and vibration make it well suited for process-control valve positioner applications and dense panel installations.
Open-loop conversion technology and a low-mass magnet provide accurate pneumatic pressure control at an economical cost. The Type 590X can be mounted in any position and is designed to remain stable in high-vibration environments while resisting RFI/EMI interference.
The manifold-mount configuration places the inlet and outlet ports on a common mounting surface, simplifying integration into compact pneumatic assemblies. Available output ranges include 3-15 psig, 3-27 psig, and 6-30 psig, with FM and CSA approvals standard and optional ATEX and UKCA approvals.
Key Features
- Converts a 4-20 mA input signal into proportional pneumatic pressure
- Low-flow output designed for valve positioner applications
- Compact size for dense panel and manifold installations
- Lightweight construction
- Manifold-mount design with inlet and outlet ports on a common surface
- Insensitive to mounting position
- Stable in high-vibration environments
- Open-loop control with low-mass magnet technology
- Accurate and economical pressure conversion
- Resistant to RFI/EMI interference
- Three available output pressure ranges
- Wide standard operating temperature range
- Optional low-temperature operation
- FM and CSA approvals standard
- Optional ATEX and UKCA approvals
- Replaceable inlet filter
Performance Characteristics
- Input Signal: 4-20 mA
- Output Pressure Ranges: 3-15 psig, 3-27 psig, and 6-30 psig
- Maximum Supply Pressure: 150 psig (10 bar)
- Minimum Supply Pressure: 5 psig (0.3 bar) above the maximum output pressure
- Air Consumption and Flow Capacity at 20 psig Supply: 2.00 scfh
- Air Consumption and Flow Capacity at 85 psig Supply: 4.94 scfh
- Air Consumption and Flow Capacity at 150 psig Supply: 8.36 scfh
- Standard Temperature Range: -40°F to 185°F (-40°C to 85°C)
- Low-Temperature Option: -67°F to 158°F (-55°C to 70°C)
- Relative Humidity: 75% average and 95% short-term, non-condensing
- Impedance: 260 ohms at 70°F (21°C)
- Loop Load: 5.2 volts at 70°F
- Independent Linearity: Less than ±0.5% of span
- Hysteresis: Less than ±0.3% of span
- Deadband: Less than ±0.1% of span
- Repeatability: Less than ±0.3% of span and less than ±0.15% typical
- Mounting Orientation Effect: Less than ±0.5% per 90-degree change
- Air Supply Sensitivity: Less than ±0.3% per 25 psig supply change
- Vibration Effect: Less than ±1% up to 10g and 20-80 Hz
- Temperature Effect: Less than ±0.75% per 10°F change
- Manifold Port Size: 3/16″ M connection
- Electrical Connection: Terminal block
- Operating Media: Clean, dry, oil-free instrument air filtered to 40 microns
- Enclosure: NEMA 1/IP20
- Mounting: Manifold
- Weight: 0.75 lb (0.34 kg)
The Type 590X Manifold Mount model is designed for low-flow pneumatic loads. Its flow capacity is equal to its air consumption and varies with supply pressure, making it especially appropriate for pilot and valve-positioner applications rather than high-volume actuator control.
How to Select the Right Configuration
Selecting the correct Type 590X Manifold Mount configuration depends on the required output pressure range, available supply pressure, ambient temperature, manifold interface, and hazardous-area approval requirements.
- Select the 3-15 psig output for standard process-control valve positioner applications.
- Select the 3-27 psig output when a wider pneumatic control span is required.
- Select the 6-30 psig output for higher-pressure control signals.
- Verify that the supply pressure is at least 5 psig above the maximum required output.
- Use the manifold-mount model when inlet and outlet ports must interface through a common mounting surface.
- Confirm that the low-flow output is appropriate for the connected pneumatic load.
- Select the low-temperature option for ambient temperatures below -40°F.
- Select the ATEX/UKCA approval option when required by the installation.
- Use only clean, dry, oil-free instrument air filtered to 40 microns.
- Add a separate volume booster when the downstream device requires substantially more flow.
For additional guidance:
Applications
The Type 590X Manifold Mount I/P Transducer is designed for process-control systems that require compact, vibration-resistant, low-flow current-to-pressure conversion.
- Pneumatic valve positioners
- Process control valve systems
- Manifold-mounted instrument assemblies
- Compact control panels
- Hazardous-area instrumentation
- Oil and gas process equipment
- Chemical processing systems
- Remote pneumatic control systems
- OEM process-control equipment
- High-vibration machinery
- Pilot-pressure applications
Explore more applications:
Models & Configurations
Type 590X Manifold Mount Ordering Structure

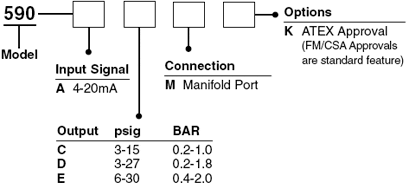

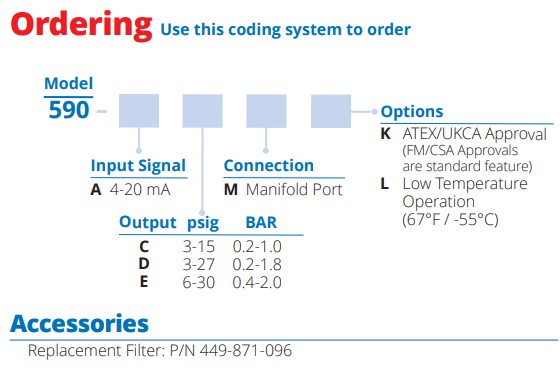

590 – A [Output] M [Options]
Input Signal
- A = 4-20 mA
Output Pressure Ranges
- C = 3-15 psig (0.2-1.0 bar)
- D = 3-27 psig (0.2-1.8 bar)
- E = 6-30 psig (0.4-2.0 bar)
Connection
- M = Manifold port
Available Options
- K = ATEX and UKCA Approval; FM and CSA approvals are standard
- L = Low-Temperature Operation down to -67°F (-55°C)
Accessory
- Replacement Filter: P/N 449-871-096
Technical Resources
FAQs
What does the Type 590X Manifold Mount I/P transducer do?
The Type 590X converts a 4-20 mA electrical input into a low-flow, linearly proportional pneumatic output pressure.
How is the manifold-mount model different from the ported Type 590X?
The manifold-mount model places the pneumatic inlet and outlet on a common mounting surface and is designed for low-flow valve-positioner and pilot applications. The ported version uses threaded pneumatic connections and provides higher flow capacity.
What output pressure ranges are available?
The Type 590X Manifold Mount model is available with 3-15 psig, 3-27 psig, and 6-30 psig output ranges.
What is the maximum supply pressure?
The maximum supply pressure is 150 psig (10 bar). Supply pressure must be at least 5 psig above the maximum required output.
Is the Type 590X suitable for high-vibration applications?
Yes. The unit is stable in high-vibration environments and has a vibration effect of less than ±1% at up to 10g and 20-80 Hz.
Can the Type 590X be mounted in any position?
Yes. It can be mounted in any position, with a mounting orientation effect of less than ±0.5% per 90-degree change.
What hazardous-area approvals are available?
FM and CSA approvals are standard. ATEX and UKCA approvals are available as an option.
Can the Type 590X operate in low-temperature environments?
Yes. The standard model operates down to -40°F, and the low-temperature option extends operation down to -67°F (-55°C).
What air quality is required?
The Type 590X requires clean, dry, oil-free instrument air filtered to 40 microns.
