Description
Overview

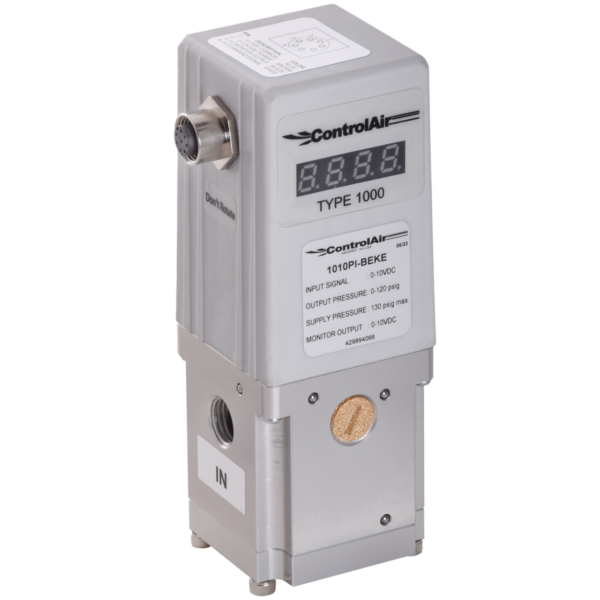

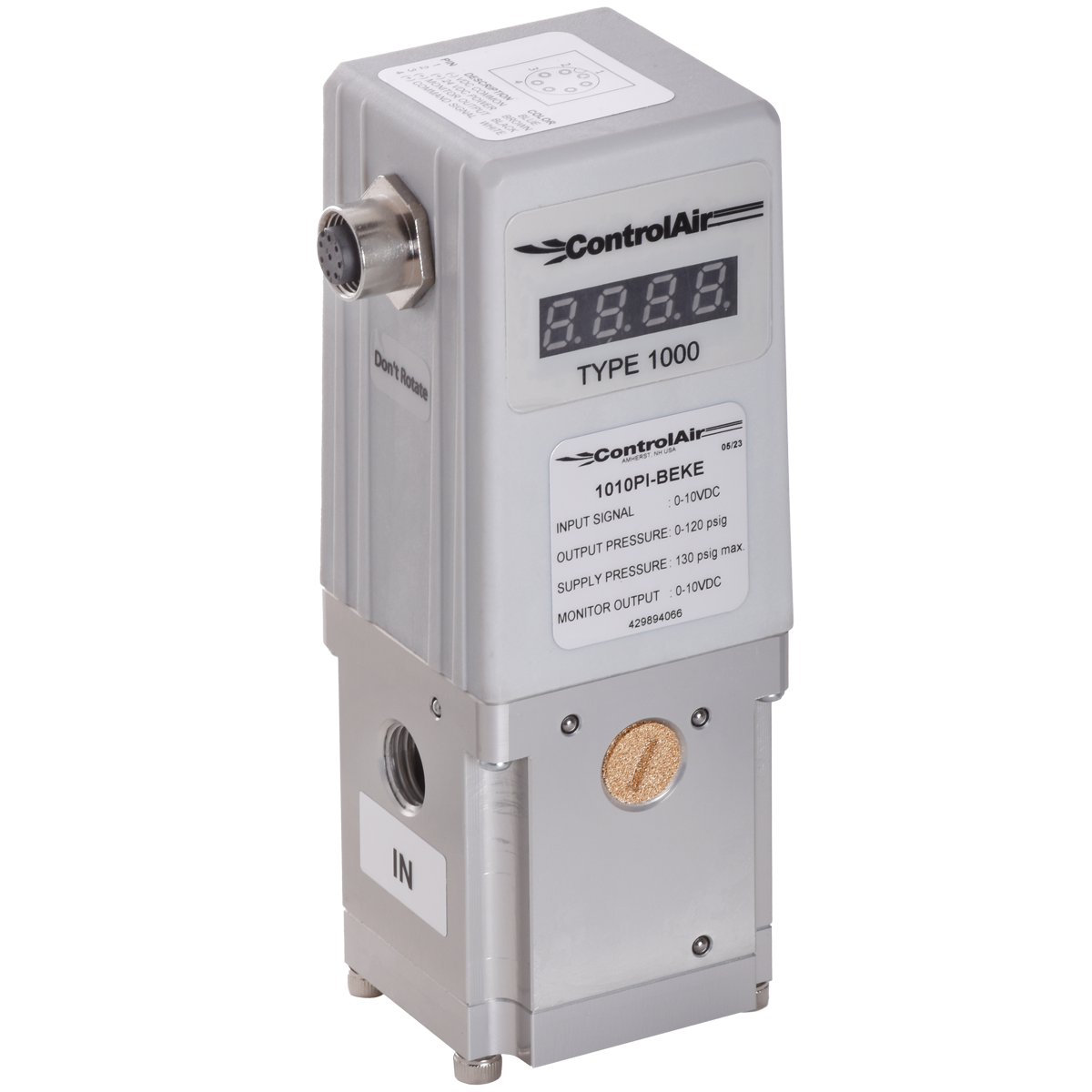

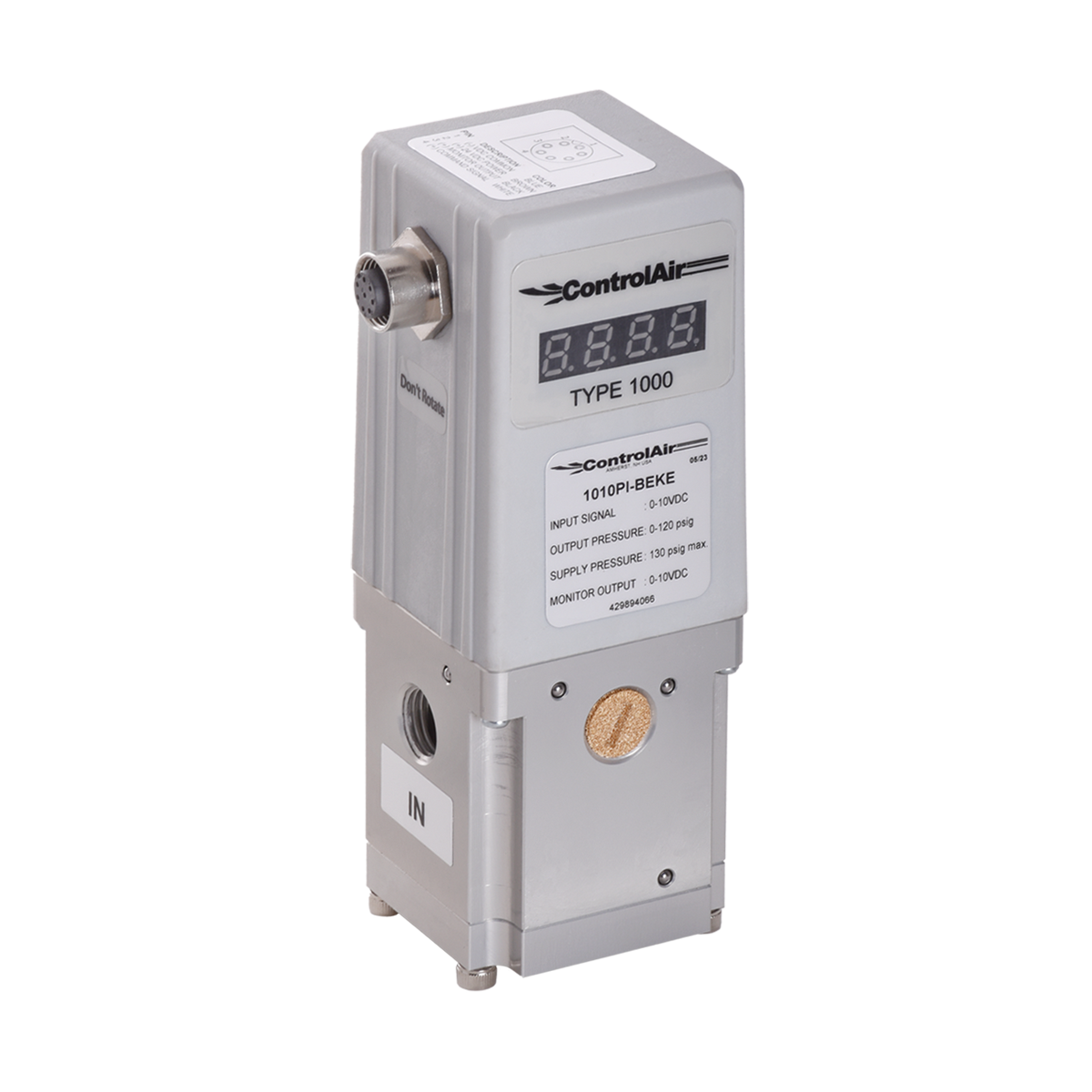

The Type 1010P Electro-Pneumatic Economic Pressure Regulator is a compact closed-loop servo system designed to convert an electrical command signal into a proportional pneumatic output pressure. It provides an economical solution for automated applications that require dependable electronic pressure control without the expanded signal and pressure-range flexibility of the Type 1000P and Type 1005P.
The regulator uses two solenoid valves, an internal pressure sensor, and electronic controls. One valve controls inlet flow while the second controls exhaust. The internal pressure sensor continuously measures the output and sends feedback to the controller, which adjusts the valves to maintain the commanded pressure.
Available with either a 0-10 VDC or 4-20 mA control signal, the Type 1010P provides a 0-120 psig output range, 1/4″ NPT porting, a digital pressure display, and a response time of 0.8 seconds. Its compact construction makes it well suited for OEM machinery, industrial automation, and other cost-sensitive electronic pressure-control applications.
Key Features
- Economical closed-loop electro-pneumatic pressure control
- Compact design for space-constrained installations
- Internal pressure sensor provides continuous feedback
- Dual-solenoid inlet and exhaust control
- Available with 0-10 VDC or 4-20 mA input
- Matching 0-10 VDC or 4-20 mA monitor output options
- Output pressure range up to 120 psig (8 bar)
- Flow capacity up to 2,543 scfh
- Response time of 0.8 seconds
- Digital pressure display
- 1/4″ NPT porting
- Available with BSP porting
- Optional bar display
- 24 VDC power supply
- Designed for cost-effective OEM and automation applications
Performance Characteristics
- Input Signals: 0-10 VDC or 4-20 mA
- Monitor Outputs: 0-10 VDC or 4-20 mA
- Power Supply: 24 VDC
- Voltage Input Impedance: 10 kOhm
- Current Input Impedance: 250 ohms
- Response Time: 0.8 seconds
- Operating Temperature: 32°F to 158°F (0°C to 70°C)
- Port Size: 1/4″ NPT
- Output Pressure Range: 0-120 psig (0-8 bar)
- Maximum Supply Pressure: 131 psig (9 bar)
- Accuracy: ±0.5% full scale
- Repeatability: ±0.5% full scale
- Hysteresis: ±0.6% full scale
- Linearity: ±0.5% full scale
- Flow Rate: 2,543 scfh at 8 bar
- Operating Media: Clean compressed air or air filtered to 5 microns
- Weight: 0.95 lb (0.43 kg)
The Type 1010P continuously compares actual output pressure with the electrical command signal and automatically operates the inlet or exhaust valve to maintain the selected pressure.
How to Select the Right Configuration
Selecting the correct Type 1010P configuration depends on the available control signal, required monitor output, porting standard, display units, flow requirement, and mounting arrangement.
- Select the 4-20 mA input for standard industrial current-loop control.
- Select the 0-10 VDC input when a voltage command signal is available.
- Choose a 4-20 mA or 0-10 VDC monitor output compatible with the PLC or controller.
- Confirm that the required pressure is within the 0-120 psig range.
- Confirm that the required flow is within the 2,543 scfh capacity.
- Select BSP porting when required by the pneumatic piping standard.
- Select the bar display option when metric pressure indication is preferred.
- Confirm that supply pressure does not exceed 131 psig.
- Use clean compressed air filtered to 5 microns to support reliable operation.
- Select the appropriate L- or M-style bracket for the installation.
- Choose the Type 1000P when higher precision or additional input, monitor, and pressure-range choices are required.
- Choose the Type 1005P when the application requires high flow with broader signal flexibility.
For additional guidance:
Applications
The Type 1010P is designed for cost-conscious automated systems that require dependable electronic control of pneumatic pressure.
- OEM machinery
- Industrial automation systems
- Packaging machinery
- Pneumatic actuator control
- Assembly equipment
- Robotics and motion-control systems
- Process equipment
- Leak testing equipment
- Automated pressure-control stations
- Material handling equipment
- Test fixtures
- General electronic pressure regulation
Explore more applications:
Models & Configurations
Type 1010P Ordering Structure
1010P – I – B [Input Signal] [Monitor Output] K [Options]
Feedback Monitor
- I = Internal
Port Size
- B = 1/4″ NPT
Input Signals
- A = 4-20 mA
- E = 0-10 VDC
Monitor Outputs
- A = 4-20 mA
- E = 0-10 VDC
Pressure Range
- K = 0-120 psig (0-8 bar)
- X = Custom
Available Options
- U = BSP Ports
- B = Bar Display; psi display is standard
Accessories
- 6-Foot (2-Meter) M12 Right-Angle Cable: P/N 445-919-013
- L-Style Bracket Kit: P/N 449-542-055
- M-Style Bracket Kit: P/N 449-542-059
Technical Resources
- Product Data Sheet
- Installation Instructions
- Product Configurator
- 3D CAD Models
- Engineering Support Resources
FAQs
What does the Type 1010P electro-pneumatic regulator do?
The Type 1010P converts a 0-10 VDC or 4-20 mA electrical command signal into a proportional pneumatic output pressure and uses closed-loop feedback to maintain the selected pressure.
Why is the Type 1010P described as an economic pressure regulator?
The Type 1010P provides essential closed-loop electronic pressure control in a streamlined configuration for applications that do not require the expanded input, communication, pressure-range, or precision options of other models in the series.
What input signals are available?
The Type 1010P is available with either a 0-10 VDC or 4-20 mA input signal.
What output pressure range is available?
The standard Type 1010P output range is 0-120 psig (0-8 bar).
What is the maximum flow capacity?
The Type 1010P provides a flow rate of 2,543 scfh at 8 bar.
How accurate is the Type 1010P?
The Type 1010P provides ±0.5% full-scale accuracy, repeatability, and linearity, with ±0.6% full-scale hysteresis.
Can the Type 1010P provide a pressure monitor signal?
Yes. The Type 1010P is available with either a 0-10 VDC or 4-20 mA monitor output.
What is the response time?
The rated response time is 0.8 seconds.
What air quality is required?
The Type 1010P requires clean compressed air or air filtered to 5 microns.
Are BSP ports available?
Yes. BSP ports are available with the U option.
