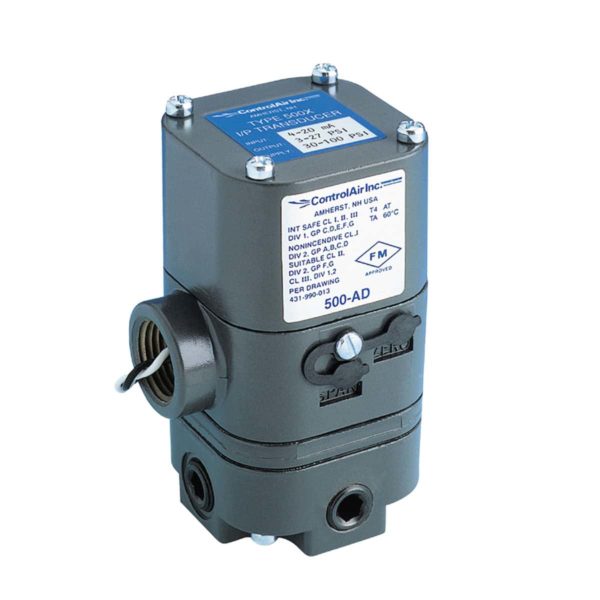

Type 500 Electro-Pneumatic I/P Transducer (I/P, E/P)

Type 500 Electro-Pneumatic I/P Transducer (I/P, E/P)
FM Approved Logo CE Logo RoHS Logo

PDF Sales Sheet

Instructions

Product Configurator

3D CAD MODELS

  • Description
  • Specifications
  • Ordering Information

Economical and reliable electrical conversion to pressure

The ControlAir Type 500X converts a current or voltage input signal to a linearly proportional pneumatic output pressure. This versatile instrument is designed for control applications that require a high degree of reliability and repeatability at an economical cost.

The Type 500X is available in two different versions. The lower range model is designed for standard process control applications which typically utilize a 3 to 15 psig (0.2 to 1 bar) output. The extended range unit provides up to 145 psig (10 bar) output for higher pressure industrial pneumatic and process control system requirements.

Input

0-10 Vdc, 0-5 Vdc, 0-60 mA, 1-9 Vdc, 10-50 mA, 4-20 mA

Output Range

1-17 psig (0.1-1.2 bar), 2-120 psig (0.15-8.2 bar), 2-60 psig (0.14-4.1 bar), 3-120 psig (0.2-8.2 bar), 3-15 psig (0.2-1 bar), 3-27 psig (0.2-1.8 bar), 3-9 psig (0.2-0.6 bar), 6-30 psig (0.4-2 bar), 9-15 psig (0.6-1 bar)

Max. Supply Pressure

150 psig (10 bar)

Supply Pressure Sensitivity - Low Output Range

<+ 0.1% of span per psig (<+ 0.15% of span per 0.1 bar)

Supply Pressure Sensitivity - High Output Range

<+ 0.04% of span per 1.0 psig (0.07 bar)

Flow Rate

20 scfm (566 Nl/min)

Maximum Air Consumption

0.07 scfm (1.98 Nl/min)

Repeatability

< 0.5% of span < 0.5% of span

Hysteresis

< 1.0% of span < 0.5% of span

Response Time

Dependent on pressure range – typically less than 0.25 sec. for 3-15 psig units

Media

Oil free, clean dry air filtered to 40 micron

Electrical Connection

Conduit 1/2" NPT, DIN 43650

Enclosure

Nema 1, Nema 4X (IP65)

Ambient Temperature Limits

-20° to +140°F ('-30° to 60°C)

Port Sizes

1/4 NPT (Pneumatic), 1/2 NPT (Electric)

Weight

2.1 lbs (0.94 kg.)

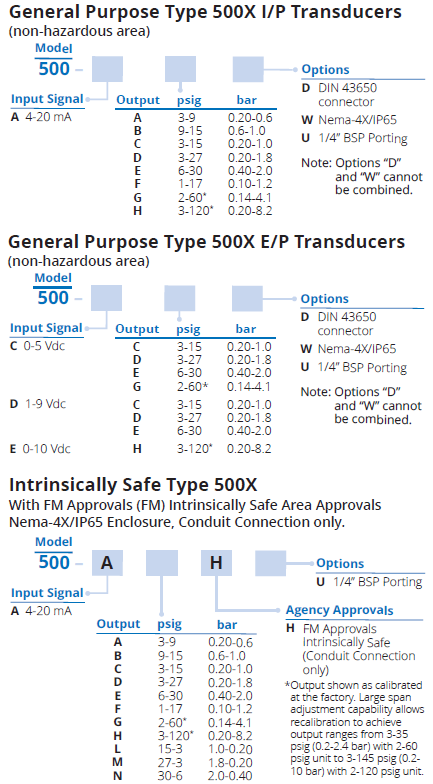

Ordering Information – TYPE 500X I/P

Output Range

Part Number

Input

PSI

BAR

Impedance

500-AA

4-20 mA

3-9

0.2-0.6

90 Ohms

500-AB

4-20 mA

9-15

0.6-1.0

90 Ohms

500-AC

4-20 mA

3-15

0.2-1.0

180 Ohms

500-AD

4-20 mA

3-27

0.2-1.9

220 Ohms

500-AE

4-20 mA

6-30

0.4-2.0

220 Ohms

500-AF

4-20 mA

1-17

0.1-1.2

250 Ohms

500-BC

10-50 mA

3-15

0.2-1.0

70 Ohms

500-BD

10-50 mA

3-27

0.2-1.9

85 Ohms

500-BE

10-50 mA

6-30

0.4-2.0

85 Ohms

500-AG

4-20 mA

2-60*

0.1-4.0

225 Ohms

500-AH

4-20 mA

3-120*

0.2-8.0

260 Ohms

500-BF

0-60 mA

2-120*

0.1-8.0

220 Ohms

Ordering Information – TYPE-500X E/P

Output Range

Part Number

Input

PSI

BAR

Impedance

500-CC

0-5 VDC

3-15

0.2-1.0

615 Ohms

500-CD

0-5 VDC

3-27

0.2-1.8

530 Ohms

500-CE

0-5 VDC

6-30

0.4-2.0

530 Ohms

500-DC

1-9 VDC

3-15

0.2-1.0

985 Ohms

500-DD

1-9 VDC

3-27

0.2-1.8

840 Ohms

500-DE

1-9 VDC

6-30

0.4-2.0

840 Ohms

500-CF

0-5 VDC

2-60*

0.14-4.1

500 Ohms

500-EH

0-10 VDC

3-120*

0.2-8.2

805 Ohms

Common part numbers include: 500-AA
