Description

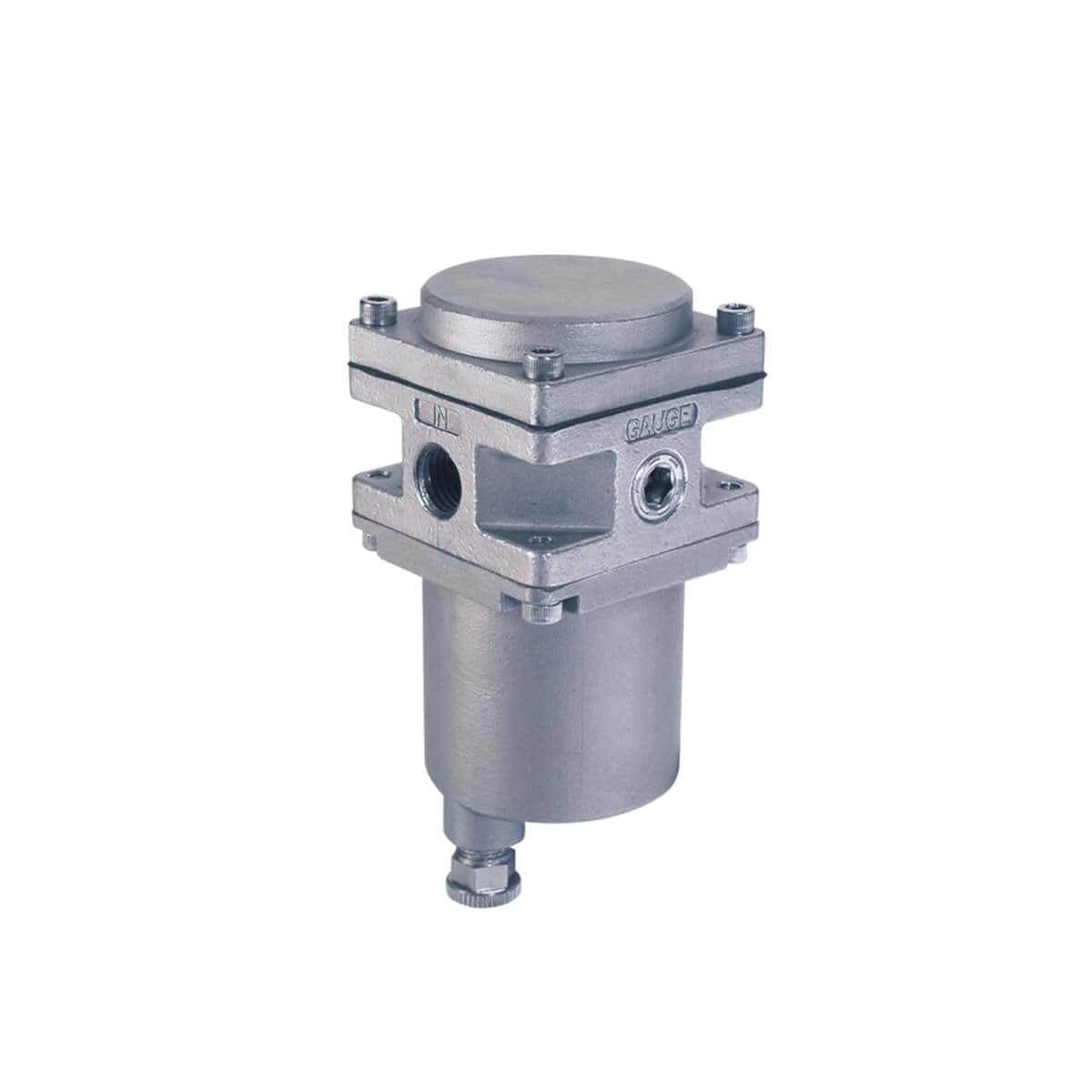

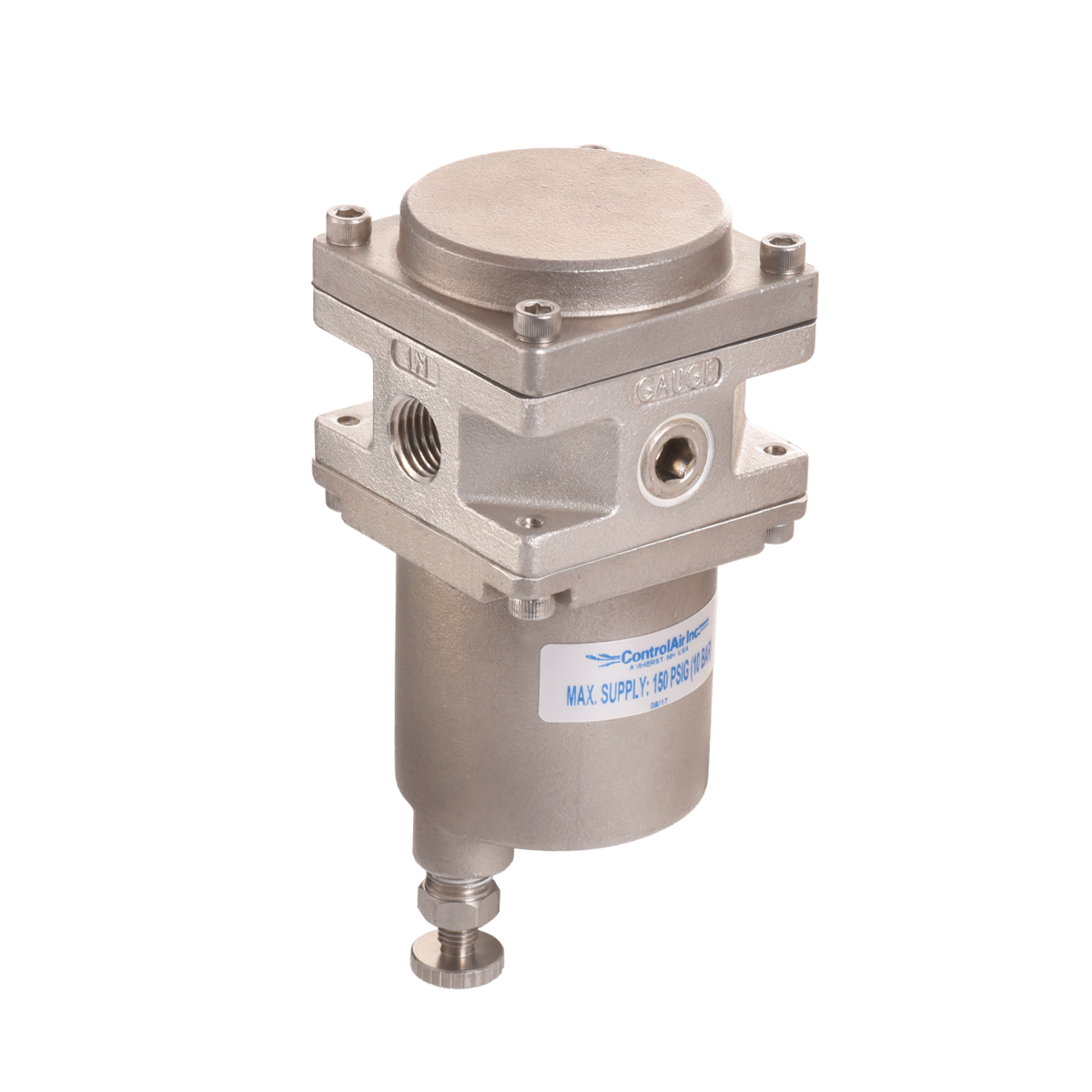

The Type 370 stainless steel filter assembly provides clean and reliable air flow under the most severe conditions. This family of filters and regulators are made from 316L SS and comes in ¼” and ½” port sizes. With the ability to filter air down to 5 microns there is also an available autodrain option that will automatically drain any water from the unit. These stainless-steel filter units are great for protecting your instrumentation on offshore equipment, food and beverage processing skids or any other application that requires the best protection from corrosive environments. See our Type 350 air filter regulator for an integrated pressure regulation.
Options and features (see specification tab for full list):
- 1/4” and 1/2” ports
- Autodrain option
- Low Temperature option: down to -61°F (-52 °C)
- High Flow Capacity: up to 150 scfm
Type 350SS Stainless Steel Filter Regulator
| Model | Part Number | Port Size
(NPT) | Output Range |
| psi | bar |
| 350-SS | 350-BA | 1/4″ | 0-30 | 0-2.1 |
| 350-SS | 350-BB | 1/4″ | 0-60 | 0-4.1 |
| 350-SS | 350-BC | 1/4″ | 0-100 | 0-6.9 |
| 350-SS | 350-BD | 1/4″ | 0-150 | 0-10.3 |
| 350-SS | 350-DA | 1/2″ | 0-30 | 0-2.1 |
| 350-SS | 350-DB | 1/2″ | 0-60 | 0-4.1 |
| 350-SS | 350-DC | 1/2″ | 0-100 | 0-6.9 |
| 350-SS | 350-DD | 1/2″ | 0-150 | 0-10.3 |
Type 360SS Stainless Steel Regulator
| Model | Part Number | Port Size
(NPT) | Output Range |
| psi | bar |
| 360-SS | 360-BA | 1/4″ | 0-30 | 0-2.1 |
| 360-SS | 360-BB | 1/4″ | 0-60 | 0-4.1 |
| 360-SS | 360-BC | 1/4″ | 0-100 | 0-6.9 |
| 360-SS | 360-BD | 1/4″ | 0-150 | 0-10.3 |
| 360-SS | 360-DA | 1/2″ | 0-30 | 0-2.1 |
| 360-SS | 360-DB | 1/2″ | 0-60 | 0-4.1 |
| 360-SS | 360-DC | 1/2″ | 0-100 | 0-6.9 |
| 360-SS | 360-DD | 1/2″ | 0-150 | 0-10.3 |
Type 370SS Stainless Steel Filter
| Model | Part Number | Port Size
(NPT) |
| 370-SS | 370-BX | 1/4″ |
| 370-SS | 370-DX | 1/2″ |
OPTIONS Add proper letter on to end of model number:
A – Automatic Drain (Type 350 and Type 370 only) Float operated drain with 1/8” NPTconnection. Maximum 150 psig supply pressure. Minimum 32°F (0°C) temperature.
F – 5 Micron Filter. Standard 25 micron filter is replaced with 5 micron filter for more complete air filtration.
K – Knob Knob with stainless steel stem
L – Low Temperature Operation: For “Arctic” applications. Good for temperatures range of -61°F to +194°F (-52°C to +90°C). Not suitable for sour natural gas applications
N – Nonrelieving. For constant flow or downstream pressure relief applications.
R – EAC TR-CU
X – ATEX 94/9/EC
ACCESSORIES
Panel Nut – P/N 446-734-052
Mounting Bracket Kit – P/N 448-542-011 Includes mounting bracket and panel nut
Pressure Gauge – 2″ face; dual scale; 1/4″ NPT centerback connection; stainless steel case and internals.
0-30 psi (0-2.1 bar) P/N: 445-725-019
0-60 psi (0-4.1 bar) P/N: 445-725-020
0-150 psi (0-10.3 bar) P/N: 445-725-021
