Description
Overview

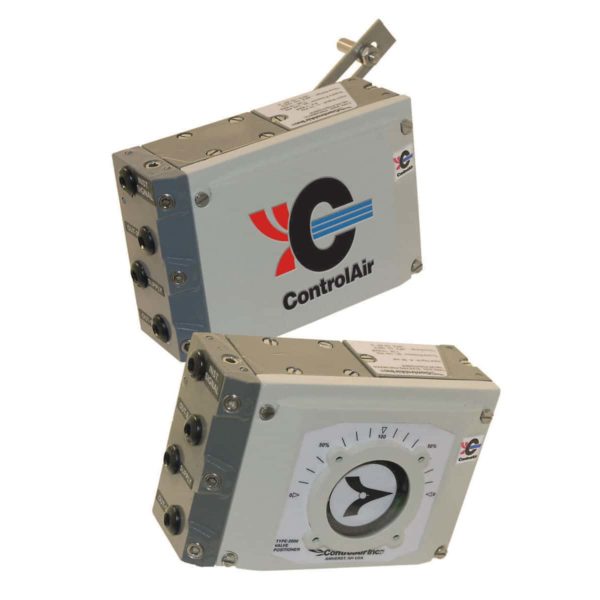

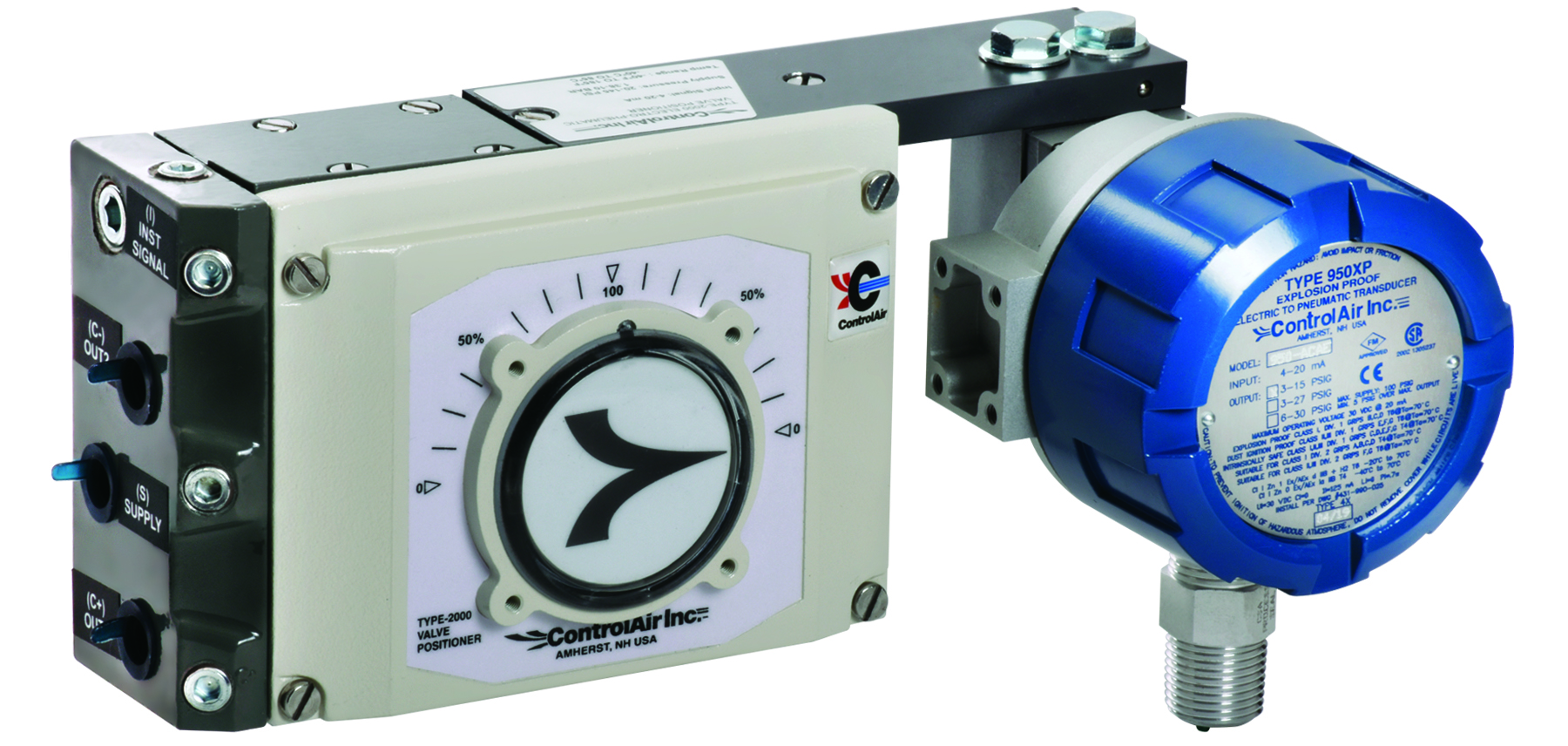

The ControlAir Type 2000 CA2000 P/P Pneumatic Valve Positioner provides stable and accurate positioning of rotary and linear pneumatic control valves. Designed for applications using a standard 3-15 psig pneumatic input signal, the CA2000 continuously controls actuator pressure to help the valve accurately follow the commanded position.

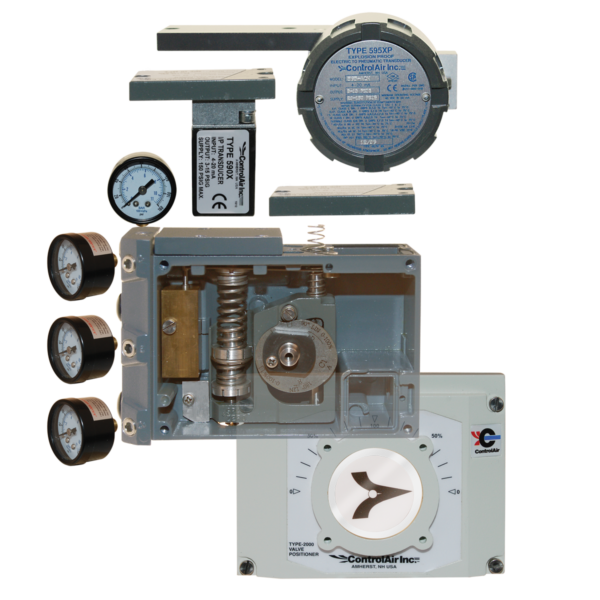

The Type 2000 uses a force-balanced operating principle designed for simple calibration, maintenance, and field service. An external zero adjustment simplifies setup, while a high-gain pilot valve provides quick and accurate valve and actuator response. The positioner is also designed to be insensitive to vibration, mounting position, and shock, supporting reliable operation in demanding industrial environments.
Available for both rotary and linear valve applications, the CA2000 combines precise pneumatic positioning with high flow capacity, low hysteresis, and excellent repeatability. Its rugged NEMA 4X / IP65 aluminum enclosure with polyester epoxy finish provides protection for industrial process installations, while the modular Type 2000 design supports multiple mounting, spindle, cam, and indication configurations.
Key Features
- P/P pneumatic valve positioner
- Standard 3-15 psig (0.2-1.0 bar) pneumatic input signal
- Designed for rotary and linear control valves
- Stable and accurate valve positioning
- Force-balanced operating principle
- External zero adjustment for easy calibration
- High-gain pilot valve provides quick and accurate valve/actuator response
- Designed to be insensitive to vibration, position, and shock
- Maximum supply pressure up to 145 psig (10 bar)
- Flow capacity up to 47.1 SCFM (1,333 Nl/min)
- Linearity error less than 0.7% full scale
- Hysteresis less than 0.4% full scale
- Repeatability less than 0.3% full scale
- Standard pointed indicator for rotary configurations
- Standard blank cover for linear configurations
- Optional raised dome indicator
- Optional 4-20 mA position feedback or mechanical switches on applicable rotary configurations
- NEMA 4X / IP65 aluminum enclosure
- Polyester epoxy enclosure finish
- Multiple spindle and cam configurations
- Rotary and linear mounting kits available
Performance Characteristics
The CA2000 uses a pneumatic input signal to position the valve actuator through a force-balanced mechanical feedback system. As the pneumatic input signal changes, the positioner adjusts its output pressure to move the actuator. Mechanical feedback from the valve or actuator returns to the positioner until the commanded input and actual valve position are balanced.
This closed-loop pneumatic positioning provides better control of actual valve position than actuator pressure alone. The CA2000 delivers published linearity error of less than 0.7% of full scale, hysteresis below 0.4% of full scale, and repeatability below 0.3% of full scale.
Its high-gain pilot valve also provides substantial pneumatic flow capacity for responsive actuator movement. Flow increases from 9.5 SCFM at 29 psig supply to 47.1 SCFM at 145 psig supply, supporting a range of pneumatic valve actuator sizes.
Performance Specifications
- Input Signal: 3-15 psig (0.2-1.0 bar)
- Maximum Supply Pressure: Less than 145 psig (10 bar)
- Linearity Error: <0.7% full scale
- Hysteresis: <0.4% full scale
- Repeatability: <0.3% full scale
- Flow Capacity @ 29 psig (2 bar): 9.5 SCFM (268.9 Nl/min)
- Flow Capacity @ 87 psig (6 bar): 28.3 SCFM (800.1 Nl/min)
- Flow Capacity @ 145 psig (10 bar): 47.1 SCFM (1,333 Nl/min)
- Air Consumption @ 29 psig: 0.18 SCFM (5.09 Nl/min)
- Air Consumption @ 87 psig: 0.53 SCFM
- Air Consumption @ 145 psig: 0.88 SCFM
- Operating Temperature: -40°F to 185°F (-40°C to 85°C)
- Pneumatic Ports: 1/4″ NPT
- Gauge Ports: 1/8″ NPT
- Supply Media: Clean, dry, oil-free instrument air filtered to 40 micron

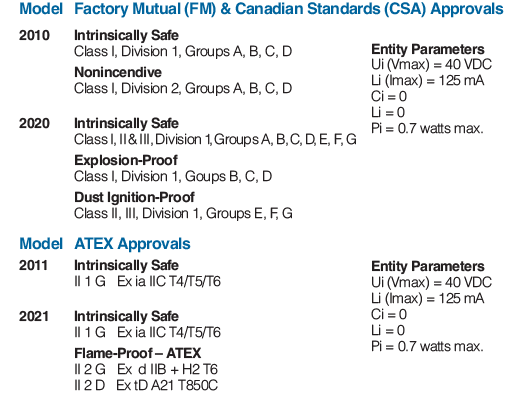

- Enclosure: NEMA 4X / IP65 aluminum with polyester epoxy finish
- Weight: 3.5 lbs (1.6 kg)

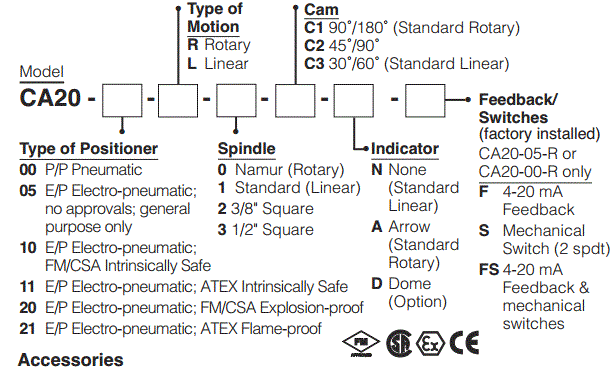

How to Select the Right Configuration
Selecting the proper CA2000 configuration depends on valve motion, actuator mounting arrangement, spindle type, required valve travel or rotation, local position indication, and any desired position feedback or switch options.
Select Rotary or Linear Motion
- R = Rotary
- L = Linear
The Type 2000 specification sheet specifically identifies the CA2000 as available for both rotary and linear valve applications.
Select the Indicator
- N = None – Standard for linear configurations
- A = Arrow – Standard for rotary configurations
- D = Dome – Optional raised position indicator
Select the Spindle
- 0 = Namur – Rotary
- 1 = Standard – Linear
- 2 = 3/8″ Square
- 3 = 1/2″ Square
Select the Cam
- C1 = 90°/180° – Standard rotary
- C2 = 45°/90°
- C3 = 30°/60° – Standard linear
Consider Feedback and Switch Requirements
For applicable CA2000 rotary configurations, factory-installed options include:
- F = 4-20 mA position feedback
- S = Two SPDT mechanical switches
- FS = 4-20 mA feedback plus mechanical switches
The ordering information limits these factory-installed feedback and switch options to applicable CA2000 and CA2005 rotary configurations.
For additional guidance:
Applications
The Type 2000 CA2000 is designed for industrial process applications requiring accurate pneumatic positioning of rotary or linear control valves from a standard 3-15 psig pneumatic control signal.
- Rotary control valves
- Linear control valves
- Pneumatic valve actuators
- Process control valves
- Flow control systems
- Pressure control systems
- Temperature control systems
- Level control systems
- Pneumatic process control systems
- Industrial automation
- OEM valve and actuator assemblies
- General industrial valve positioning
Models & Configurations
CA2000 – P/P Pneumatic Valve Positioner
- 3-15 psig pneumatic input signal
- Rotary or linear configurations
- Clean, dry, oil-free instrument air supply
- Maximum supply pressure up to 145 psig
- NEMA 4X / IP65 enclosure
Motion Options
- Rotary
- Linear
Indicator Options
- No indicator – standard linear
- Arrow indicator – standard rotary
- Optional raised dome indicator
Cam Options
- 90°/180° – Standard rotary
- 45°/90°
- 30°/60° – Standard linear
Feedback / Switch Options for Applicable Rotary Models
- 4-20 mA position feedback
- Two SPDT mechanical switches
- Combined 4-20 mA feedback and mechanical switches
The Type 2000 ordering guide identifies model code 00 as the P/P pneumatic positioner configuration.
Accessories
- 0-30 psi (0-2 bar), 1/8″ NPT Back Mount Gauge: P/N 446-725-006
- 0-160 psi (0-11 bar), 1/8″ NPT Back Mount Gauge: P/N 446-725-008
- 0-30 psi (0-2 bar), 1/8″ NPT Bottom Mount Gauge: P/N 446-725-033
Rotary Namur Bracket Kits
- ISO-1: P/N 449-542-032
- ISO-2: P/N 449-542-033
- ISO-3: P/N 449-542-034
- ISO-4: P/N 449-542-035
Linear Bracket Kits
- Universal: P/N 449-542-036
- Namur IEC534: P/N 449-542-037
Technical Resources
- Type 2000 Product Data Sheet
- Installation and Operating Instructions
- Dimensional Drawings
- Rotary Mounting Information
- Linear Mounting Information
- CAD Models
- Ordering Guide
FAQs
What is the Type 2000 CA2000 used for?
The CA2000 is a pneumatic valve positioner designed to provide stable and accurate positioning of rotary and linear pneumatic control valves using a 3-15 psig control signal.
What input signal does the CA2000 use?
The CA2000 accepts a standard 3-15 psig (0.2-1.0 bar) pneumatic input signal.
Can the CA2000 be used with both rotary and linear valves?
Yes. The CA2000 can be configured for either rotary or linear valve positioning applications.
What is the maximum supply pressure?
The CA2000 supports supply pressure up to 145 psig (10 bar).
How accurate is the CA2000?
The CA2000 provides linearity error of less than 0.7% of full scale, hysteresis of less than 0.4% of full scale, and repeatability of less than 0.3% of full scale.
What is the maximum flow capacity?
Published flow capacity reaches 47.1 SCFM (1,333 Nl/min) at 145 psig supply pressure.
What type of supply air does the CA2000 require?
The CA2000 is designed for clean, dry, oil-free instrument air filtered to 40 micron.
What enclosure rating does the CA2000 have?
The Type 2000 uses a NEMA 4X / IP65 aluminum enclosure with a polyester epoxy finish.
Are position feedback and mechanical switches available?
Yes. Applicable CA2000 rotary configurations can be ordered with 4-20 mA position feedback, two SPDT mechanical switches, or both feedback and switches.
What mounting options are available?
Rotary Namur bracket kits and linear mounting bracket kits are available to support integration with a variety of valve and actuator assemblies.
