Description
Overview
The ControlAir Type 2000 CA2005/CA2010/CA2011 Electro-Pneumatic Valve Positioners provide stable and accurate positioning of rotary and linear control valves. These models accept a standard 4-20 mA electrical input signal and provide pneumatic output to the valve actuator, making them well suited for integration with modern process control and industrial automation systems.
The Type 2000 uses a force-balanced operating principle and is designed for simple calibration, maintenance, and field upgrades. A high-gain pilot valve provides quick and accurate valve and actuator response, while external zero adjustment simplifies calibration. The positioner is also designed to be insensitive to vibration, position, and shock, supporting dependable performance in demanding industrial environments.
The CA2005, CA2010, and CA2011 share the same core electro-pneumatic performance platform but provide different approval configurations. The CA2005 is the standard electro-pneumatic model, while the CA2010 provides FM/CSA intrinsically safe approvals and the CA2011 provides ATEX intrinsically safe approval. Both rotary and linear configurations are available.
Key Features
- Electro-pneumatic valve positioning
- Standard 4-20 mA input signal
- Designed for both rotary and linear valves
- Stable and accurate valve positioning
- High-gain pilot valve provides quick and accurate valve/actuator response
- External zero adjustment simplifies calibration
- Force-balanced operating design
- Designed to be insensitive to vibration, position, and shock
- Maximum supply pressure up to 145 psig (10 bar)
- Optional 4-20 mA position feedback
- Optional mechanical switches
- Standard pointed indicator for rotary configurations
- Standard blank cover for linear configurations
- Optional raised beacon
- NEMA 4X / IP65 aluminum enclosure with polyester epoxy finish
- FM, CSA, and ATEX intrinsically safe configurations available
- Modular design supports multiple options and field conversions
The Type 2000 specification sheet identifies the CA2005, CA2010, and CA2011 as electro-pneumatic models and shows both rotary and linear configurations for this group.
Performance Characteristics
The CA2005/CA2010/CA2011 convert a standard 4-20 mA electrical control signal into pneumatic actuator control while continuously positioning the valve according to the commanded signal. The high-gain pilot valve provides the airflow needed for quick actuator response while the force-balanced design supports accurate and repeatable positioning.
These electro-pneumatic models provide a published linearity error of less than 1.0% of full scale, hysteresis of less than 0.6% of full scale, and repeatability of less than 0.5% of full scale. Supply pressure can range from 21.8 to 145 psig (1.5 to 10 bar).
The flow performance increases with available supply pressure, reaching 47.1 SCFM (1,333 Nl/min) at 145 psig. This combination of positioning accuracy and pneumatic flow capacity allows the Type 2000 to provide responsive control across a range of valve and actuator applications.
Performance Specifications
- Input Signal: 4-20 mA (Ri <250 ohms)
- Supply Pressure: 21.8-145 psig (1.5-10 bar)
- Linearity Error: <1.0% full scale
- Hysteresis: <0.6% full scale
- Repeatability: <0.5% full scale
- Flow Capacity @ 29 psig Supply: 9.5 SCFM (268.9 Nl/min)
- Flow Capacity @ 87 psig Supply: 28.3 SCFM (800.1 Nl/min)
- Flow Capacity @ 145 psig Supply: 47.1 SCFM (1,333 Nl/min)
- Air Consumption @ 29 psig: 0.2 SCFM (5.7 Nl/min)
- Air Consumption @ 87 psig: 0.6 SCFM (17.0 Nl/min)
- Air Consumption @ 145 psig: 1.0 SCFM (28.3 Nl/min)
- Impedance: 260 ohms @ 70°F
- Loop Load: 5.2 V @ 20 mA
- Temperature Range: -40°F to 185°F (-40°C to 85°C)
- Pneumatic Ports: 1/4″ NPT
- Gauge Ports: 1/8″ NPT
- Electrical Connection: 1/2″ NPT; M20-1.5 for ATEX
- Media: Clean, dry, oil-free instrument air filtered to 40 micron
- Enclosure: NEMA 4X / IP65 aluminum with polyester epoxy finish
- Weight: 3.8 lbs (1.7 kg)
How to Select the Right Configuration
Selecting the correct CA2005, CA2010, or CA2011 begins with determining the required safety approval, followed by valve motion, mounting requirements, and any desired position feedback or indication options.
Select the Appropriate Model
- CA2005: Select for standard electro-pneumatic applications where an intrinsically safe hazardous-area approval is not required.
- CA2010: Select for applications requiring FM/CSA intrinsically safe approval.
- CA2011: Select for applications requiring ATEX intrinsically safe approval.
The CA2010 is FM/CSA Intrinsically Safe for Class I, Division 1, Groups A, B, C, and D and Nonincendive for Class I, Division 2, Groups A, B, C, and D. The CA2011 carries ATEX Intrinsically Safe approval: II 1 G Ex ia IIC T4/T5/T6.
Select Rotary or Linear Configuration

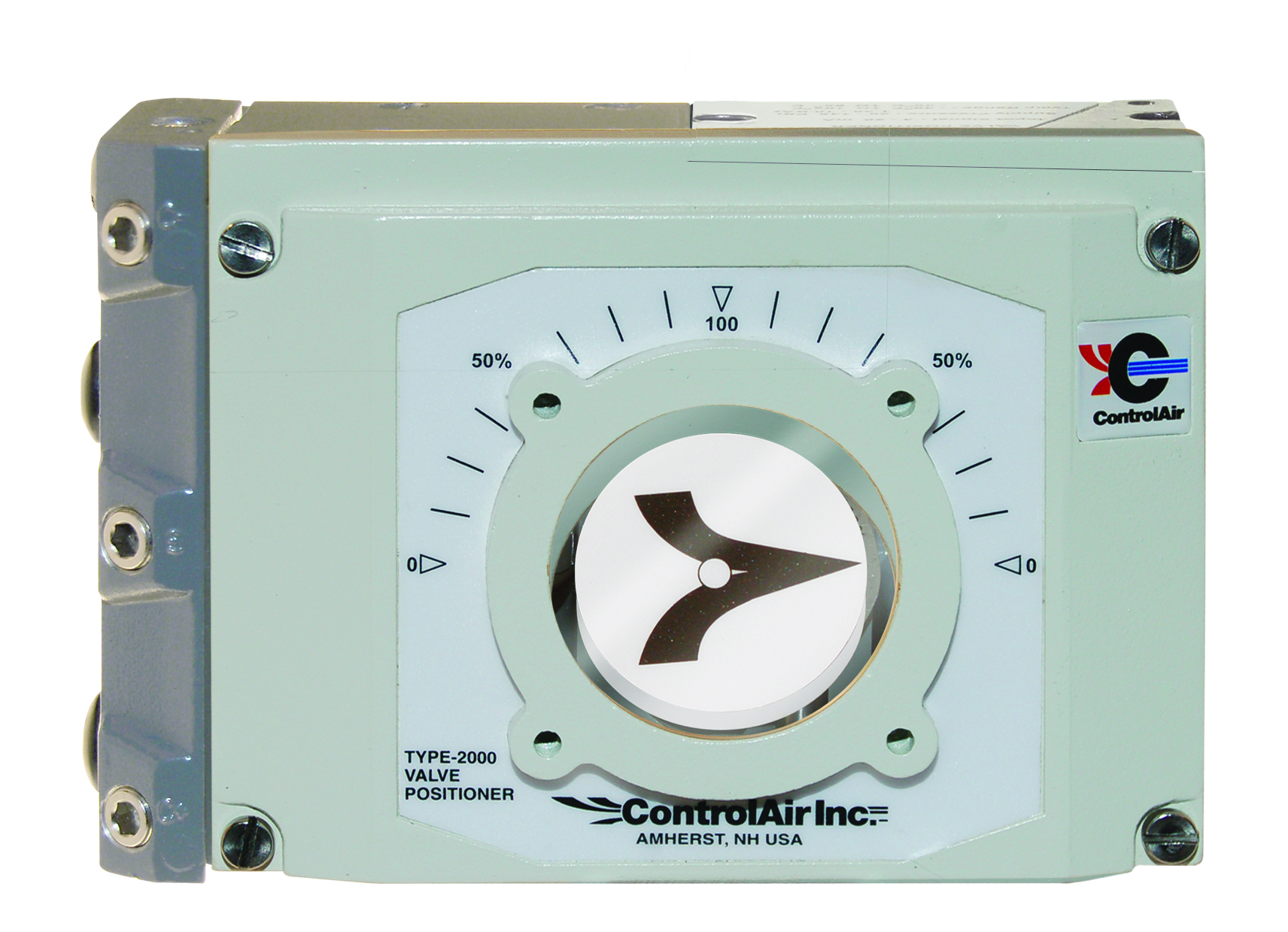

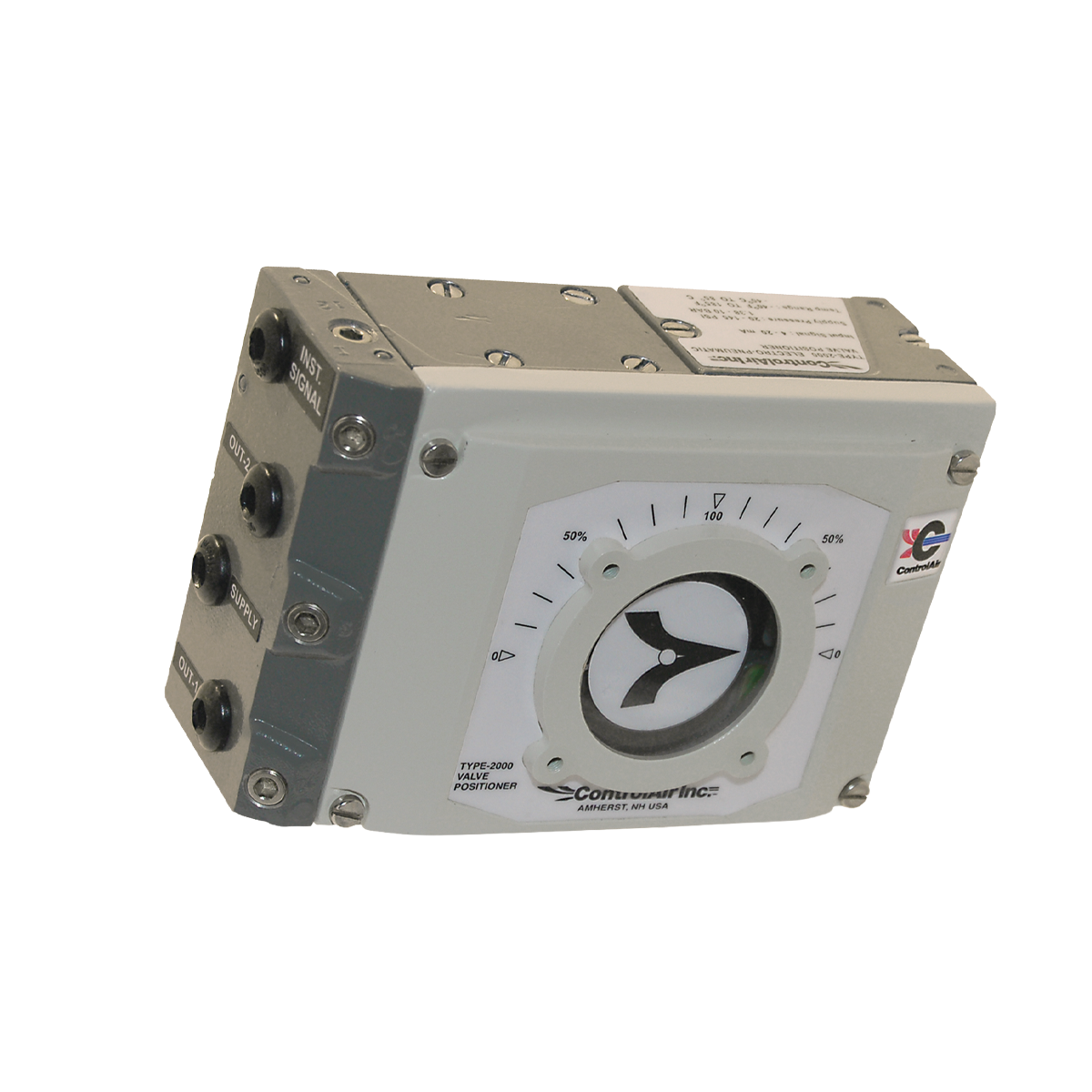

The CA2005, CA2010, and CA2011 are available for both rotary and linear valve positioning. Select the appropriate configuration according to the valve and actuator assembly. Rotary versions include a standard pointed position indicator, while linear versions use a standard blank cover.
Consider Position Feedback and Indication
Optional 4-20 mA position feedback or mechanical switches can be added when remote valve-position indication is required. An optional raised beacon is also available for enhanced local visual indication.
For additional guidance:
Applications
The Type 2000 CA2005/CA2010/CA2011 is designed for industrial process systems requiring accurate electro-pneumatic positioning of rotary or linear control valves. The 4-20 mA input allows direct integration with common process controllers, PLCs, and distributed control systems.
- Rotary control valves
- Linear control valves
- Pneumatic valve actuators
- Process control systems
- Flow control
- Pressure control
- Temperature control
- Level control
- Industrial automation
- Process equipment
- OEM valve assemblies
- Hazardous-area valve positioning with CA2010 or CA2011
Models & Configurations
CA2005 – Standard Electro-Pneumatic
- 4-20 mA input
- Rotary or linear configuration
- For applications not requiring the CA2010 or CA2011 intrinsically safe approvals
CA2010 – FM/CSA Intrinsically Safe
- 4-20 mA input
- Rotary or linear configuration
- FM/CSA Intrinsically Safe: Class I, Division 1, Groups A, B, C, D
- Nonincendive: Class I, Division 2, Groups A, B, C, D
CA2011 – ATEX Intrinsically Safe
- 4-20 mA input
- Rotary or linear configuration
- ATEX Intrinsically Safe
- II 1 G Ex ia IIC T4/T5/T6
- M20-1.5 electrical connection for ATEX configuration
The current Type 2000 specification sheet explicitly identifies CA2010 and CA2011 as the intrinsically safe configurations and shows CA2005, CA2010, and CA2011 as available for both rotary and linear applications.
Position Feedback and Switch Options
- Optional 4-20 mA position feedback
- Optional mechanical switches
- Optional raised position beacon
The optional electronic position feedback uses a two-wire 4-20 mA DC output with a 12-30 VDC supply and maximum loop impedance of 700 ohms at 24 VDC.
Technical Resources
- Type 2000 Product Data Sheet
- Installation and Operating Instructions
- Dimensional Drawings
- Mounting Information
- Product Certifications
- Ordering Guide
FAQs
What are the Type 2000 CA2005/CA2010/CA2011 used for?
The CA2005, CA2010, and CA2011 are electro-pneumatic valve positioners designed to provide stable and accurate positioning of rotary and linear control valves using a 4-20 mA electrical input signal.
What input signal do the CA2005/CA2010/CA2011 use?
The CA2005, CA2010, and CA2011 accept a standard 4-20 mA input signal with input resistance of less than 250 ohms.
What is the difference between the CA2005, CA2010, and CA2011?
The CA2005 is the standard electro-pneumatic configuration. The CA2010 is designed for applications requiring FM/CSA intrinsically safe approval, while the CA2011 provides ATEX intrinsically safe approval.
Can the CA2005/CA2010/CA2011 be used with both rotary and linear valves?
Yes. All three models are available for rotary and linear valve positioning applications.
What supply pressure range do the CA2005/CA2010/CA2011 support?
The electro-pneumatic CA2005, CA2010, and CA2011 operate with supply pressure from 21.8 to 145 psig (1.5 to 10 bar).
How accurate are the CA2005/CA2010/CA2011?
The positioners provide linearity error of less than 1.0% of full scale, hysteresis of less than 0.6% of full scale, and repeatability of less than 0.5% of full scale.
What is the maximum flow capacity?
Published flow capacity reaches 47.1 SCFM (1,333 Nl/min) at 145 psig (10 bar) supply pressure.
What type of instrument air is required?
The CA2005, CA2010, and CA2011 are designed for clean, dry, oil-free instrument air filtered to 40 micron.
What enclosure does the Type 2000 use?
The positioner uses a NEMA 4X / IP65 aluminum enclosure with a polyester epoxy finish for resistance to demanding industrial environments.
Is position feedback available?
Yes. Optional 4-20 mA position feedback and mechanical switches are available for applications requiring remote valve-position indication.
